Technical Specifications
| Model: ViewSonic CDE5512-E1 - 55" 4K Ultra HD Display with WMK-077 Fixed Wall Mount | |
| Panel Spec | |
| Display Type | TFT-LCD |
| Size | 55" |
| Touch Screen | No |
| Resolution | 3840 x 2160 |
| Aspect Ratio | 16 : 9 |
| Color Depth | 10 bit |
| Contrast Ratio | 4000 : 1 |
| Backlight | LED |
| Viewing Angle | 178° (H), 178° (V) |
| Interfaces | |
| HDMI | 2 x HDMI (2.0) |
| DisplayPort | 1 x DisplayPort (1.2) |
| VGA | 1 x VGA |
| Audio | 1 x Audio In, 1 x Audio Out |
| Power Inputs | |
| Power Consumption | 120 W |
| Environmental | |
| Operating Temperature | 0 - 40°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 20 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 20.9 kg ( 46.08 lb ) |
| Dimensions (L x W x H) | 1244 x 721 x 64 mm (49.0 x 28.4 x 2.5 in.) |
| Note | Includes WMK-077 Fixed Wall Mount |
Description

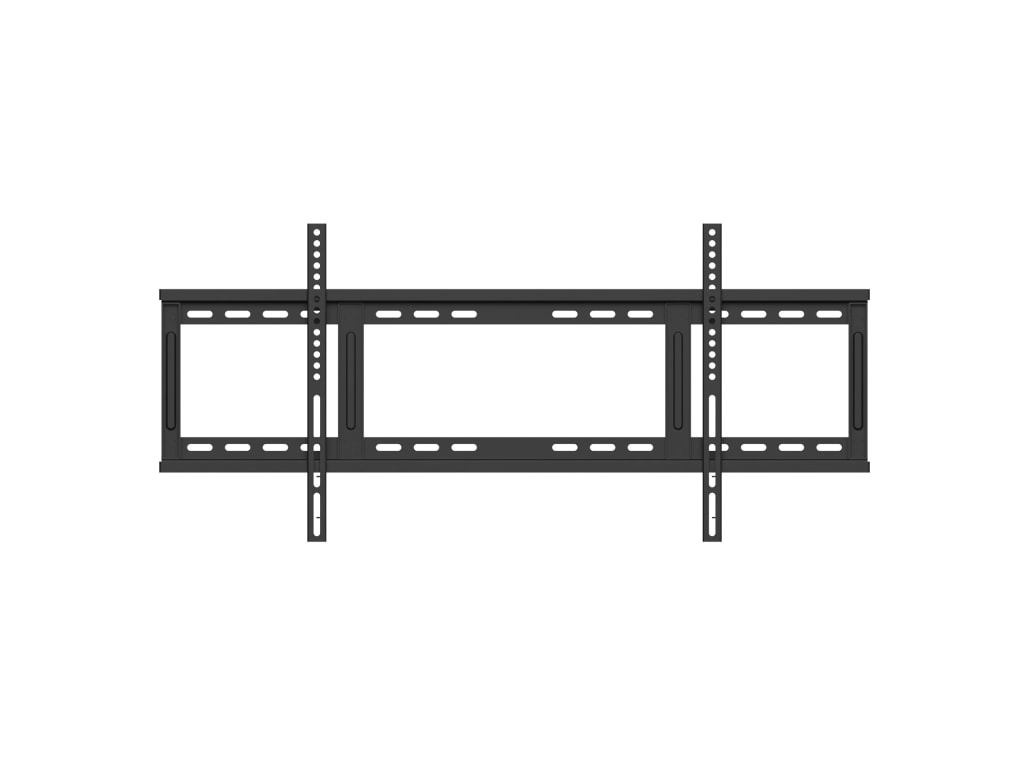

The ViewSonic CDE5512-E1 is a bundle that includes the CDE5512 55" 4K Ultra HD display and the MK-077 fixed wall mount. This large format wireless presentation display features a razor-sharp resolution of 3840 x 2160, 290-nit high brightness, and 178-degree ultra-wide viewing angles. With 2 x 10W speakers and wireless screen sharing capabilities, the CDE5512 transforms meeting rooms into dynamic communication hubs. The built-in ViewBoard Cast screen sharing software, along with the optional ViewSonic vCastSender app, allows both on-site and online users to participate in conferences and share content simultaneously. Equipped with a powerful embedded SoC platform, LAN and USB wireless connectivity, and remote configuration and content management system support, the CDE5512 is suitable for a wide array of diverse signage applications. This bundle also includes the WMK-077 fixed wall mount, which has an ultra-slim profile of 1.1-inch distance to the wall.
- Ultra HD Resolution: With four-times the resolution of Full HD, this Ultra HD 3840x2160 display delivers a breathtaking viewing experience with immersive images that are vibrant, clear, and as large as life.
- Embedded LAN and USB Wireless Connectivity: An integrated LAN (RJ45) connection, as well as a pre-installed USB Wi-Fi removable module, provide easy network connection options for content streaming.
- AV Control System Certified: The AV control system is at the heart of all integrated AV systems and impacts the overall effectiveness of the entire system. These wireless presentation displays are Extron certified, AMX certified, and Crestron compatible.
- Reliable 16/7 Continuous Operation: Designed for reliable use 16 hours a day, 7 days a week, this professional-grade commercial display is ideal for virtually any commercial application and environment.
- Integrated Content Management System: Enjoy a cloud-based 30-day trial service subscription from ViewSonic's content management software, powered by Revel Digital platform. Works with optional ViewSonic Signage Manager CMS (SW-216) for local content push with perpetual license.
Experience the stunning Ultra HD resolution of the ViewSonic CDE5512 55" 4K Ultra HD display. With its powerful embedded SoC platform, LAN and USB wireless connectivity, and remote configuration and content management system support, this display is perfect for a wide range of signage applications. The bundle also includes the WMK-077 fixed wall mount, which offers an ultra-slim profile of 1.1-inch distance to the wall. Upgrade your meeting rooms and create a dynamic communication hub with the ViewSonic CDE5512-E1 bundle.
In the Box
Frequently Asked Questions
Q: What is the ViewSonic CDE5512-E1 - 55" 4K Ultra HD Display with WMK-077 Fixed Wall Mount?A: The ViewSonic CDE5512-E1 is a 55-inch 4K Ultra HD display that comes with a WMK-077 fixed wall mount. It offers stunning picture quality and is designed for commercial use in various settings such as retail, hospitality, and corporate environments.
Q: What are the benefits of using the ViewSonic CDE5512-E1 - 55" 4K Ultra HD Display with WMK-077 Fixed Wall Mount?A: The ViewSonic CDE5512-E1 offers numerous benefits for users in different scenarios: * Enhanced visual experience: With its 4K Ultra HD resolution, this display delivers crisp and detailed images, providing an immersive viewing experience for customers, clients, or employees. * Versatile installation options: The included WMK-077 fixed wall mount allows for easy and secure installation on any wall, saving space and ensuring optimal viewing angles. * Energy-efficient design: This display features an energy-saving LED backlight, which not only reduces power consumption but also extends the lifespan of the display. * Wide range of connectivity options: The CDE5512-E1 offers multiple connectivity options such as HDMI, DisplayPort, VGA, and USB, allowing users to connect various devices and sources for seamless content sharing and collaboration. * Built-in media player: With its integrated media player, this display can play multimedia content directly from a USB drive, eliminating the need for an external media player. * Commercial-grade durability: Designed for 24/7 use, the CDE5512-E1 is built to withstand the demands of commercial environments, ensuring reliable performance and longevity.
Q: What are the key features of the ViewSonic CDE5512-E1 - 55" 4K Ultra HD Display?A: The ViewSonic CDE5512-E1 offers a range of features that make it a top choice for businesses and organizations: * 55-inch 4K Ultra HD display with a resolution of 3840 x 2160 pixels, delivering stunning visuals with exceptional clarity and detail. * High brightness and contrast ratio, ensuring vibrant and lifelike colors even in brightly lit environments. * Wide viewing angles of 178 degrees horizontally and vertically, allowing for clear visibility from various positions. * Multiple display modes and color settings for customization and optimization of the viewing experience. * Integrated speakers for clear audio playback, eliminating the need for external speakers in many scenarios. * VESA mount compatibility for flexible installation options, including wall mounting or placement on a stand. * Remote control and on-screen display menu for easy navigation and control of display settings.
Q: What are some common applications for the ViewSonic CDE5512-E1 - 55" 4K Ultra HD Display?A: The ViewSonic CDE5512-E1 can be utilized in a wide range of applications, including: * Retail displays: Showcase product promotions, advertisements, and engaging content to attract customers and boost sales. * Corporate presentations: Deliver impactful presentations, reports, and data visualizations to clients, colleagues, or stakeholders. * Hospitality environments: Provide information, wayfinding, or entertainment for guests in hotels, restaurants, or event venues. * Educational institutions: Enhance classroom learning with interactive content, multimedia presentations, and collaborative activities. * Digital signage: Display dynamic content and information in public spaces, such as airports, malls, or transportation hubs. * Conference rooms: Facilitate effective meetings, video conferences, and presentations with high-quality visuals and clear audio.
Q: How user-friendly is the ViewSonic CDE5512-E1 - 55" 4K Ultra HD Display?A: The ViewSonic CDE5512-E1 is designed with user-friendliness in mind. It features a user-friendly interface and intuitive controls, making it easy to navigate through settings and customize the display according to specific requirements. Additionally, the included WMK-077 fixed wall mount ensures hassle-free installation and adjustment, providing users with a seamless and convenient experience.
