Technical Specifications
| Model: ViewSonic CDE4330-E1 - 43" 4K Digital Display Bundle | |
| Panel Spec | |
| Display Type | TFT-LCD |
| Size | 43" |
| Touch Screen | No |
| Resolution | 3840 x 2160 |
| Aspect Ratio | 16 : 9 |
| Color Depth | 8 bit |
| Contrast Ratio | 1200 : 1 |
| Backlight | LED |
| Viewing Angle | 178° (H), 178° (V) |
| Interfaces | |
| HDMI | 2 x HDMI 2.0 |
| DisplayPort | 1 x DisplayPort 1.2 |
| VGA | 1 x VGA |
| Audio | 1 x 3.5mm Audio In, 1 x 3.5mm Audio Out |
| Power Inputs | |
| Power Consumption | 100W |
| Power Supply | AC 100-240V (universal), 50-60Hz |
| Environmental | |
| Operating Temperature | 0 - 40°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 20 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 13.2 kg (29.1 lb) |
| Dimensions (L x W x H) | 97.5 x 57.5 x 6.2 cm (38.4 x 22.6 x 2.4 in.) |
| VESA Mount | 200 x 200 mm |
Description
The ViewSonic CDE4330-E1 is a 43" 4K Large Format Digital Display Bundle that includes a CDE4330 43" display, VB-WIFI-001 wireless module, and WMK-077 wall mount. With a display resolution of 3840 x 2160 and a brightness of 450 cd/m2, this digital display bundle offers superb and stunning picture quality, making it ideal for presentations and collaborations. It also features reliable 24/7 operation rating, ensuring continuous performance. The AV Control system interoperability allows for seamless integration with Crestron, Extron, and AMX systems, while the centralized control device management simplifies IT administration. With a powerful secured embedded platform, this display bundle provides a secure and efficient solution for content playback without the need for a PC or media player. Additionally, it comes with a three-year limited warranty on parts, labor, and backlight, providing peace of mind.

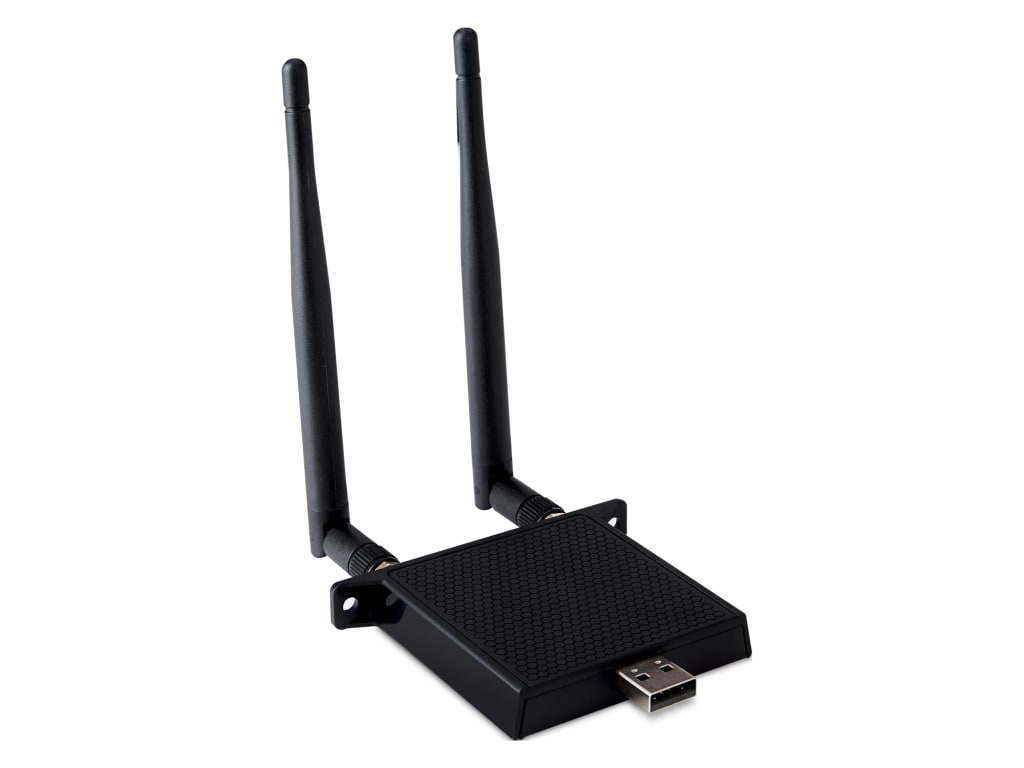

The ViewSonic VB-WIFI-001 wireless module is an integrated solution that provides a fast wireless internet connection for ViewSonic ViewBoard interactive displays. It supports dual frequency 2.4GHz and 5.0GHz bandwidth, along with the newest WiFi 6 (802.11AX) standard, offering up to 9.6 Gbps transmission. The VB-WIFI-001 also features a fast Bluetooth 5 connection for one-to-one file and data transferring.

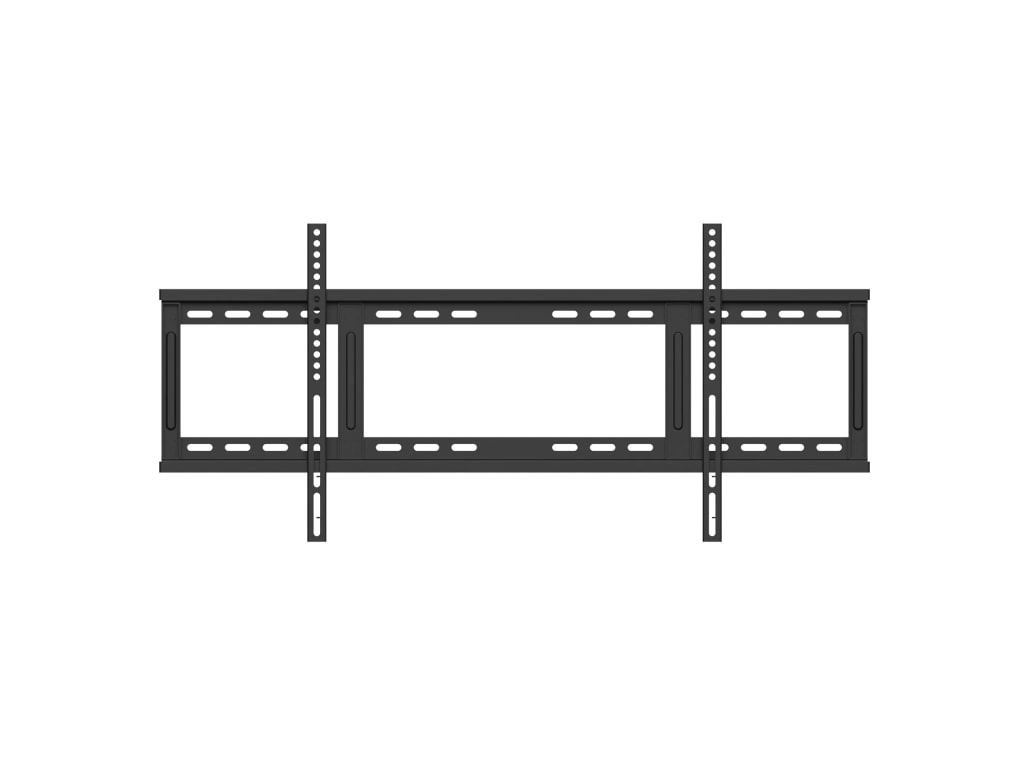

The ViewSonic WMK-077 is a fixed wall mount designed to work with ViewSonic Large Format Presentation Displays. With an ultra-slim profile of 1.1-inch distance from the wall, this wall mount provides a sleek and secure mounting solution.
Connect wirelessly through your network or directly to the display with the ViewSonic CDE4330-E1. Use the ViewBoard Cast screen-sharing software and myViewBoard Display app to allow up to four participants to connect and share their content, regardless of the OS platform they are using. The display also offers wireless and software-less casting options with AirPlay, Miracast, and the optional ViewBoard Cast button. With AV Control system interoperability, these displays are Crestron Connected, Extron certified, and AMX certified for seamless integration. The centralized device control manager, myViewBoard Manager, allows IT admins to securely set up, manage, and maintain all displays from a centralized dashboard. With a reliable 24/7 operation rating, superb and stunning picture quality, and a powerful secured embedded platform, the ViewSonic CDE4330-E1 is a versatile and efficient digital display bundle for various commercial applications.
In the Box
Frequently Asked Questions
Q: What is the ViewSonic CDE4330-E1 - 43" 4K Digital Display Bundle?A: The ViewSonic CDE4330-E1 is a digital display bundle that includes a 43-inch 4K UHD display, along with a variety of features and accessories. It is designed for businesses and organizations looking to enhance their visual communication and digital signage capabilities.
Q: What are the benefits of using the ViewSonic CDE4330-E1?A: The ViewSonic CDE4330-E1 offers several benefits for users in various scenarios, including: * Stunning 4K resolution: The 43-inch display provides a crisp and vibrant visual experience, making it ideal for showcasing high-quality images, videos, and graphics. * Versatile connectivity options: With HDMI, VGA, and USB ports, the display allows for easy connection to various devices, such as laptops, media players, and gaming consoles. * Built-in media player: The display comes with a built-in media player, enabling users to play content directly from a USB drive without the need for an external device. * Easy content management: The display is compatible with popular content management systems, allowing users to easily schedule and manage their digital signage content. * Energy-efficient design: The display features an energy-saving LED backlight and power-saving mode, helping to reduce energy consumption and operating costs.
Q: What are the key features of the ViewSonic CDE4330-E1?A: The ViewSonic CDE4330-E1 offers a range of key features that enhance its usability and performance, including: * 43-inch 4K UHD display with a resolution of 3840 x 2160 pixels, delivering sharp and detailed visuals. * High brightness and contrast ratio, ensuring clear and vibrant images even in brightly lit environments. * Wide viewing angles, allowing for excellent visibility from various positions and angles. * Anti-glare coating, minimizing reflections and glare for better readability. * Integrated speakers, providing clear audio for multimedia content. * VESA-mount compatibility, enabling easy installation on walls or stands for versatile placement options.
Q: What are some common applications for the ViewSonic CDE4330-E1?A: The ViewSonic CDE4330-E1 can be used in a variety of scenarios to enhance visual communication and engagement, including: * Retail environments: Display promotions, advertisements, and product information to attract and inform customers. * Corporate settings: Share company news, announcements, and employee communications in a visually compelling way. * Education sector: Enhance classroom learning with interactive content, presentations, and educational videos. * Hospitality industry: Provide information, directions, and entertainment for guests in hotels, restaurants, and event venues. * Public spaces: Display wayfinding, event schedules, and public service announcements for improved visitor experience.
Q: How user-friendly is the ViewSonic CDE4330-E1?A: The ViewSonic CDE4330-E1 is designed to be user-friendly, with intuitive controls and features that make it easy to set up and operate. The included accessories and connectivity options ensure compatibility with various devices, while the built-in media player simplifies content playback. Additionally, the display's durable construction and energy-saving design contribute to its overall user-friendliness and long-term reliability.
