Technical Specifications
| Category | Specification |
|---|---|
| Display | |
| Screen Size (Diagonal) | 86" Class (85 9/16" diagonal) |
| Max. Resolution | 3840 x 2160 pixels |
| Max. Display Colors | 1.07 billion colors |
| Pixel Pitch (H × V) | 0.4935 × 0.4935 mm |
| Max. Brightness | 400 cd/m² |
| Contrast Ratio | 1200:1 |
| Viewing Angle (H/V) | 178°/178° (CR ≥ 10) |
| Active Screen Area (W × H) | 74 5/8" × 41 15/16" |
| Response Time | 8 ms (gray to gray, avg.) |
| Backlight | LED, direct lit |
| Touchscreen | |
| Touch Technology | IR (infrared blocking detection method) |
| PC Connection Port | USB (2.0 compliant) (Type B) × 2 (Front × 1, Rear × 1) |
| Power Supply for Touch Panel | Supplied from main unit |
| Multi-Touch | 20 points |
| Protection Glass | Thickness: Approx. 4.0 mm; Shock resistance: 130 cm |
| Computer Input | |
| Video | Analog RGB (0.7 Vp-p) [75Ω], HDMI |
| Synchronization | Horizontal/vertical separation (TTL: positive/negative) |
| Plug & Play | VESA DDC2B |
| Video Color System | NTSC (3.58 MHz)/NTSC (4.43 MHz)/PAL/PAL60 /SECAM |
| Input Terminals | |
| Front | HDMI (HDCP2.2 compatible, HDR10 supported) × 1, 3.5 mm-diameter mini stereo jack × 1 |
| Rear | PC analog: Mini D-sub 15-pin × 1, HDMI (HDCP2.2 compatible, HDR10 supported) × 2, 3.5 mm-diameter mini stereo jack × 1, AV mini jack × 1, Component mini jack × 1, RS-232C × 1 |
| Output Terminals | |
| Audio Output | 3.5 mm-diameter mini stereo jack × 1 |
| Digital Audio Output | SPDIF × 1 |
| System | |
| CPU | Arm® Cortex®-A53 processor (quad core) |
| Memory | 1 GB |
| Internal Storage | 8 GB |
| External Interface | USB port (2.0-compliant, main unit & OPS) × 1 (Front); USB port (2.0-compliant, OPS) × 2 (Rear) |
| Wireless LAN | Compliant with IEEE802.11ac/n/a/g/b |
| Expansion Slot | Yes |
| Speaker Output | 10 W + 10 W |
| Mounting | 4 points, 700 × 400 mm pitch, M8 screw |
| Power Supply | 100 V – 240 V AC, 50/60 Hz |
| Power Consumption | 530 W |
| Environmental Conditions | |
| Operating Temperature | 5˚C to 35˚C |
| Operating Humidity | 20% to 80% RH (no condensation) |
| Dimensions (W × D × H) | 78 1/4" × 4 7/16" × 46 1/4" |
| Weight | 176.4 lbs |
| Main Accessories | AC power cord, remote control unit, remote control unit battery (AAA size) × 2, set-up manual, blank sticker, cable clamp × 3, USB cable, pen tray, SHARP Pen software (CD-ROM), touch pen × 2, wireless adapter |
Description

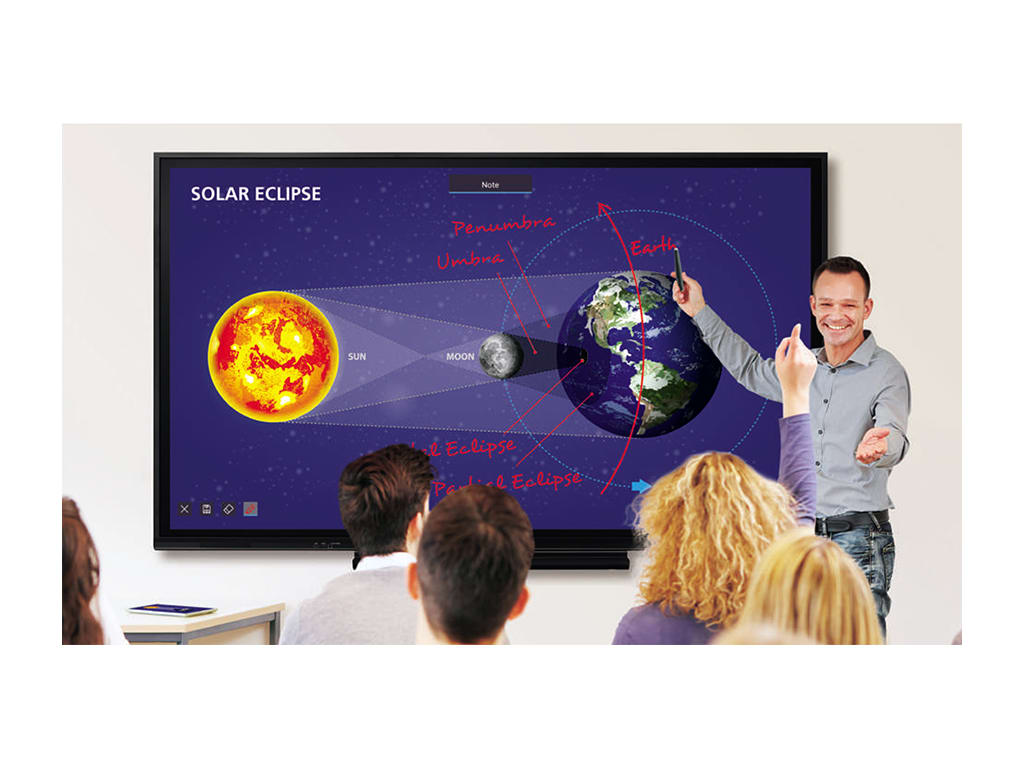

Introducing the Sharp PN-C861H - an impressive 86" AQUOS BOARD 4K Interactive Screen that will revolutionize your presentations and meetings. With its brilliant Ultra-HD display and 20-point multi-touch screen, this interactive display offers a truly immersive experience. The 86" class screen size provides ample space for showcasing your content, while the LED direct Lit display ensures stunning visuals with a resolution of 3840 x 2160.
Equipped with a built-in 10W per channel stereo audio system, the PN-C861H delivers crystal-clear sound to complement your visuals. The built-in SoC controller with Arm Cortex-A53 processor ensures smooth performance, while the built-in whiteboard application allows for easy collaboration and note-taking. With built-in wireless LAN connectivity, you can effortlessly share your presentations wirelessly, making it perfect for modern, dynamic work environments. The PN-C861H also features IR Touch screen technology for precise and responsive touch control, and an OPS-compliant expansion slot for added flexibility and compatibility.
- 86" class (85-9/16" diagonal) screen size
- Brilliant Ultra-HD (3840 x 2160) LED direct Lit display
- 20-Point multi-touch screen
- 400 cd/m2 brightness; 1,200:1 contrast ratio
- 3-year limited warranty
Experience the future of interactive displays with the Sharp PN-C861H. Its impressive features and cutting-edge technology make it the perfect choice for businesses and educational institutions alike. Upgrade your presentations and meetings with this 86" AQUOS BOARD 4K Interactive Screen and take your productivity to new heights.
In the Box
Video
Frequently Asked Questions
Q: What is the Sharp PN-C861H - 86" AQUOS BOARD 4K Interactive Screen?A: The Sharp PN-C861H is a high-resolution interactive screen designed for various applications. It features an 86-inch 4K display with touch capabilities, providing an immersive and interactive experience for users.
Q: What are the benefits of using the Sharp PN-C861H?A: The Sharp PN-C861H offers several benefits for users across different scenarios: - Enhanced collaboration: The interactive screen allows multiple users to work together, share ideas, and collaborate on projects in real-time. - Engaging presentations: The high-resolution display and touch functionality enable presenters to deliver captivating and interactive presentations, enhancing audience engagement. - Productive meetings: With its large size and user-friendly interface, the PN-C861H facilitates efficient meetings, enabling participants to easily share and annotate content. - Educational tool: In educational settings, the interactive screen promotes active learning, encourages student participation, and facilitates visual demonstrations. - Versatile applications: The PN-C861H can be used for video conferencing, digital signage, interactive exhibits, and more, making it a versatile solution for various environments.
Q: What are the key features of the Sharp PN-C861H?A: The Sharp PN-C861H offers a range of features that enhance its usability and performance: - 86-inch 4K UHD display: The large screen size and high resolution ensure clear and detailed visuals. - Capacitive touch technology: The touch functionality supports up to 20 simultaneous touch points, allowing for precise and responsive interactions. - Built-in speakers: The integrated speakers provide high-quality audio output for multimedia content. - Multiple connectivity options: The PN-C861H offers HDMI, DisplayPort, and USB ports, enabling seamless connection to various devices. - Pen software compatibility: The screen is compatible with Sharp's Pen Software, allowing users to write, draw, and annotate directly on the screen.
Q: What are some common applications for the Sharp PN-C861H?A: The Sharp PN-C861H can be utilized in a wide range of applications, including: - Corporate boardrooms and conference rooms - Higher education classrooms and lecture halls - Training and seminar facilities - Retail displays and showrooms - Museums and galleries - Control rooms and command centers
Q: How user-friendly is the Sharp PN-C861H?A: The Sharp PN-C861H is designed with user-friendliness in mind. Its intuitive interface and responsive touch screen make it easy for users of all levels of experience to navigate and interact with the content. Additionally, the Pen Software provides a familiar writing and drawing experience, further enhancing usability.
