Technical Specifications

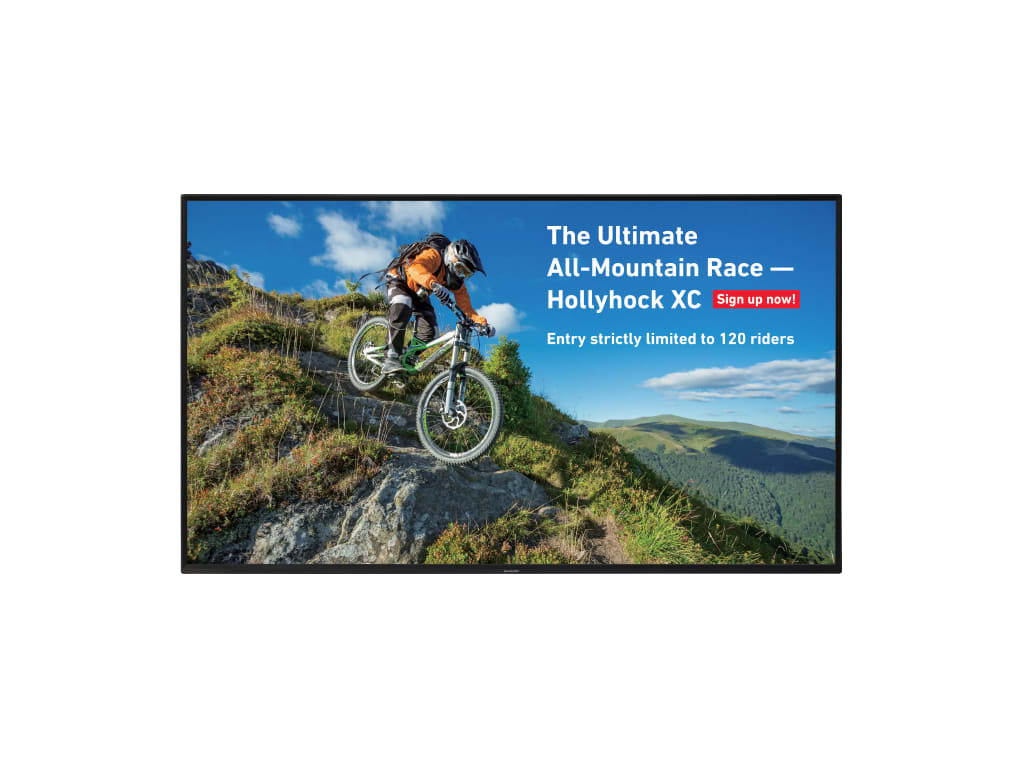

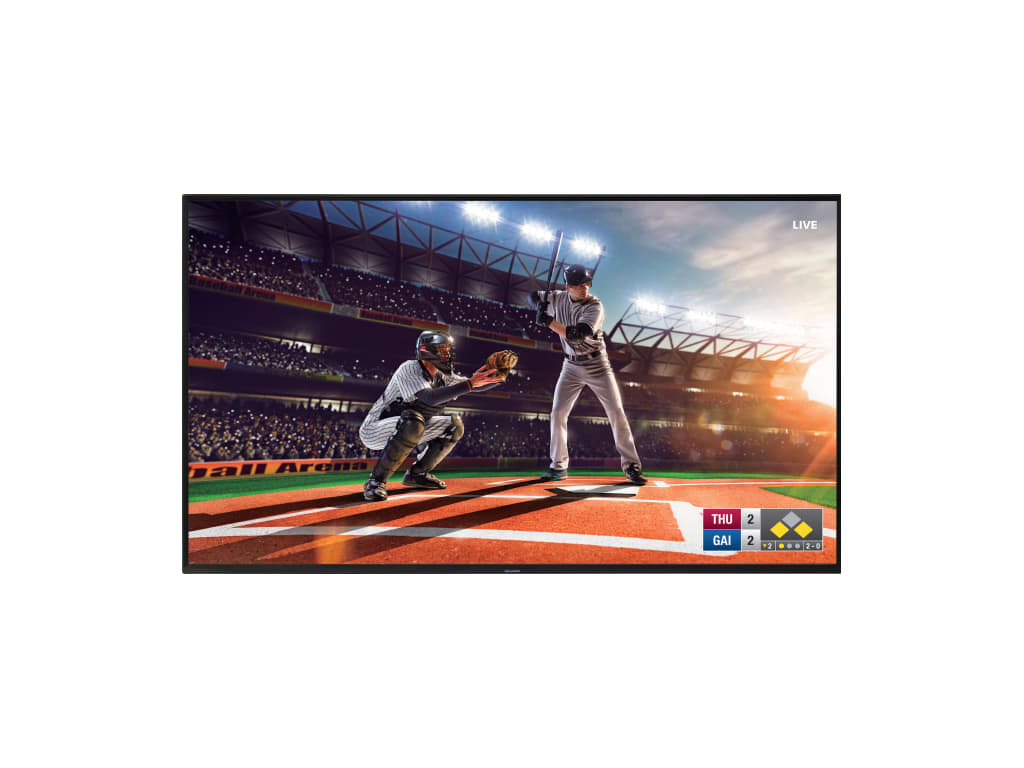

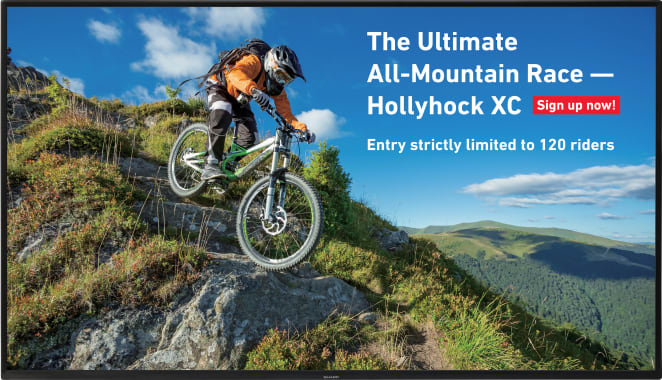

| Model: Sharp 4T-B70CJ1U - 70" Class Commercial LCD Display | |
| Panel Spec | |
| Display Type | TFT-LCD |
| Size | 70" |
| Touch Screen | No |
| Resolution | 3840 x 2160 |
| Aspect Ratio | 16 : 9 |
| Color Depth | 8 bit |
| Contrast Ratio | 4000 : 1 |
| Backlight | LED |
| Viewing Angle | 178° (H), 178° (V) |
| Interfaces | |
| Ethernet | 1 x RJ-45 Female, 10 / 100 / 1000 BaseT |
| USB | 1 x USB Type A |
| Power Inputs | |
| Power over Ethernet (PoE) | No |
| Power Consumption | 220W |
| Environmental | |
| Operating Temperature | 0 - 40°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 20 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 46.3 kg (102 lbs.) |
| Dimensions (L x W x H) | 1577 x 907 x 85 mm (62.1 x 35.7 x 3.3 in) |
| Note | - |
Description
Introducing the Sharp 4T-B70CJ1U - a top-of-the-line 70" Class Commercial LCD Display that is perfect for businesses looking to make a big impact. With its brilliant Ultra High Definition (3840 x 2160) resolution and 300 cd/m2 brightness, this display delivers stunning visuals that will captivate your audience. The 4,000:1 contrast ratio ensures deep blacks and vibrant colors, while the built-in USB Media Player allows for easy content playback. Plus, with the built-in Digital Tuner and 10W per Channel Stereo Audio System, you can enjoy crystal-clear sound to accompany your visuals. And with a 3-Year Limited Warranty, you can have peace of mind knowing that your investment is protected.
The Sharp 4T-B70CJ1U features a sleek and streamlined design, thanks to its Direct LED Backlighting technology. This not only enhances the display's aesthetics but also provides uniform brightness across the entire screen. With a screen size of 70" Class (69.5" diagonal), this display offers ample space to showcase your content. The 4K-Ultra High Definition LCD Display ensures every detail is crisp and clear, making it perfect for presentations, digital signage, and more. With RS-232C and LAN control capability, you can easily integrate this display into your existing setup. And with a 3-Year Limited Warranty, you can trust that this display is built to last.
- 70" Class (69.5" diagonal) Screen Size
- Brilliant 4K-Ultra High Definition (3840 x 2160) LCD Display
- Streamlined Design using Direct LED Backlighting
- Built-in 10W per Channel Stereo Audio System
- Built-in Digital Tuner
- 300 cd/m2 Brightness
- 3-Year Limited Warranty
- 4,000:1 Contrast Ratio
- RS-232C and LAN control capability
In the Box
Frequently Asked Questions
Q: What is the Sharp 4T-B70CJ1U - 70" Class Commercial LCD Display?A: The Sharp 4T-B70CJ1U is a high-quality commercial LCD display designed for various business and commercial applications. It features a large 70-inch screen with advanced display technologies and a wide range of features.
Q: What are the benefits of using the Sharp 4T-B70CJ1U?A: The Sharp 4T-B70CJ1U offers numerous benefits for businesses and organizations, including: * Stunning visual experience: With its 70-inch screen and advanced LCD technology, the display delivers vibrant and detailed visuals, ensuring a captivating viewing experience. * Versatile connectivity: The display offers a variety of connectivity options, such as HDMI, VGA, and USB, allowing easy integration with different devices and systems. * Enhanced productivity: The large screen size and high resolution enable users to view and present content with clarity, enhancing productivity in meetings, presentations, and collaborative work. * Reliable performance: Built with commercial-grade components, the display is designed for continuous operation, ensuring reliable performance even in demanding environments. * Easy content management: The display supports various content management systems, making it simple to schedule and display advertisements, announcements, and other relevant information.
Q: What are the key features of the Sharp 4T-B70CJ1U?A: The Sharp 4T-B70CJ1U offers a range of impressive features, including: * Large 70-inch LCD display with a high resolution for stunning visuals. * Integrated speakers for clear audio playback. * Multiple connectivity options, including HDMI, VGA, USB, and Ethernet. * Built-in media player for seamless playback of multimedia content. * Energy-saving features to reduce power consumption. * Slim and sleek design for seamless integration into any setting.
Q: What are some common applications for the Sharp 4T-B70CJ1U?A: The Sharp 4T-B70CJ1U is suitable for various applications, including: * Digital signage: The large display size and high image quality make it perfect for showcasing advertisements and promotional content in retail stores, airports, and other public spaces. * Conference rooms: The display can facilitate effective presentations, video conferences, and collaboration among team members. * Education: Schools and universities can benefit from the display's large size and interactive capabilities, enhancing classroom engagement and visual learning experiences. * Hospitality: Hotels and restaurants can utilize the display for displaying menus, promotions, and interactive information for guests. * Control rooms: The display's reliability and high-quality visuals make it ideal for monitoring and managing critical operations in control rooms.
Q: How user-friendly is the Sharp 4T-B70CJ1U?A: The Sharp 4T-B70CJ1U is designed with user-friendliness in mind. It features an intuitive interface and easy-to-navigate settings, allowing users to quickly adjust display settings, switch between inputs, and access various features. Additionally, the display comes with a comprehensive user manual and customer support to assist users with any questions or issues they may encounter.
