Technical Specifications
| Newline TT-8621Q (86") Specifications | |
|---|---|
| Feature | Details |
| Display | |
| Active Screen Size | 86" |
| Backlight | LED |
| Display Area (in) | 74.6 x 41.9 in |
| Display Ratio | 16:09 |
| Resolution (in pixels) | 3840 x 2160 (4K) |
| Colors | 1.07 billion (8 bit) |
| Center Brightness | 400 cd/m² |
| Contrast Ratio | Dynamic 4000:1 / Static: by OC spec |
| Response Time | 8 ms (Max 10 ms) |
| Viewing Angle | 178° |
| Lifetime Hours | 50,000 hours |
| Power | |
| Working Voltage | AC100-240V Max 6.5A |
| Max Power Consumption | ≤650W |
| Eco Power Consumption | <270W |
| Standby Power Consumption | <0.5W |
| ENERGY STAR® Compliant | Yes |
| Touch | |
| Touch Solution | IR |
| Transparency | 88% ±3 |
| Touch Surface Hardness | 7H |
| Touch Points | 20 Point |
| Touch Screen Writing Tools | Stylus or Finger |
| Operating System | |
| SoC Chipset | Amlogic 311D2 |
| RAM | 4 GB |
| ROM | 32 GB |
| Android Version | Android 11.0 |
| External Memory (Built In) | Expandable up to 64GB |
| Ports & Connectivity | |
| USB Type-C (PD 65W) | 1 (front) |
| HDMI 2.0 | 1 (front), 2 (rear) |
| USB Type-B (Touch) | 1 (front), 3 (rear) |
| USB 3.0 Type-A | 1 (front), 2 (rear) |
| USB 3.0 Type-C (no PD) | 1 (rear) |
| HDMI OUT 2.0 | 1 (rear) |
| DisplayPort 1.2 | 1 (rear) |
| RS232 | 1 (rear) |
| RJ45 (Gigabit) | 1 IN, 1 OUT (rear) |
| SPDIF | 1 (rear) |
| Audio Line out | 1 (rear) |
| OPS | 1 (rear) |
| Optional Wi-Fi Module Slot | Yes |
| Environmental | |
| Storage Temperature | 14°F - 113°F |
| Working Temperature | 32°F - 104°F |
| Storage Humidity | 0~90% RH (non-condensing) |
| Working Humidity | 20~80% RH (non-condensing) |
| Mounting & Dimensions | |
| Mounting Options | Wall-mount or Mobile Stand (optional) |
| VESA Mount Pattern | 800 x 400 mm |
| Outline Dimensions (in) | 77.9 x 46.9 x 4.8 in |
| Packing Dimensions (in) | 87.4 x 50.7 x 9.8 in |
| Net Weight (lbs) | 143.3 lbs |
| Gross Weight (lbs) | 180.8 lbs |
| Additional Features | |
| Glass Surface Technology | Anti-Glare, Anti-Fingerprint, Antimicrobial Tempered Glass |
| Camera Module (Optional) | 4K@ 30 Hz / UHD, 120° FOV Lenses, 352 x 352 / 30 fps |
| Speakers | 2 x 20W |
Description

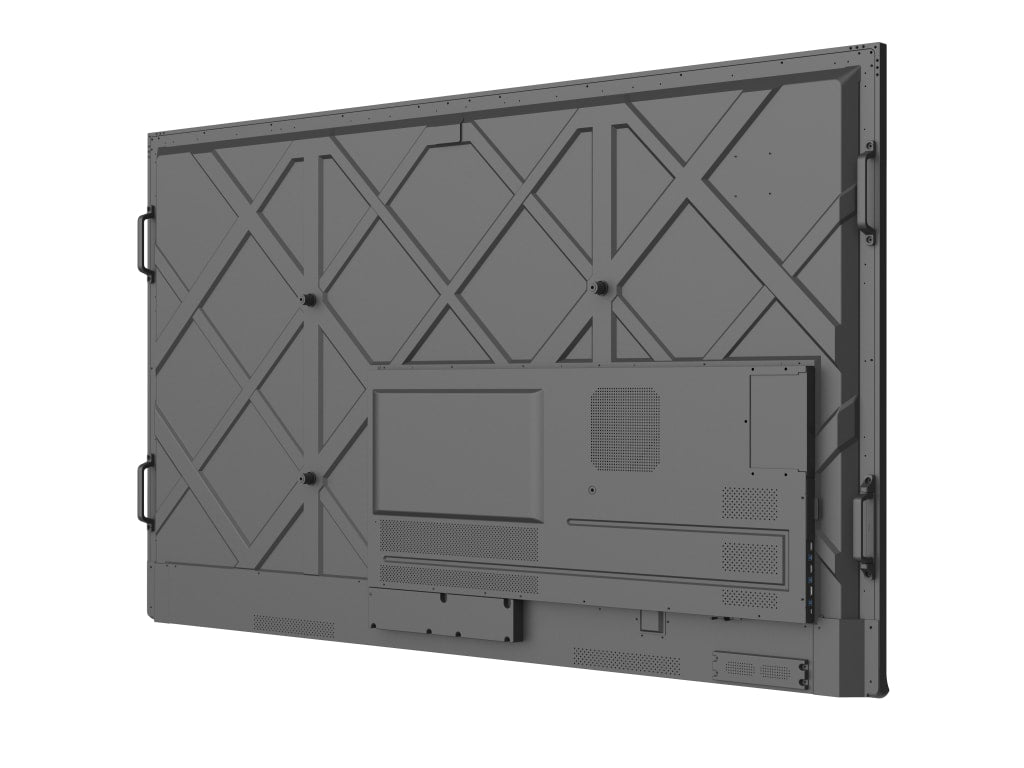

Introducing the NewLine TT-8621Q, an 86" 4K UHD Interactive Display that is perfect for any collaborative environment. With its large active screen size of 86", this display provides a stunning visual experience for presentations, meetings, and interactive learning. The USB Type-C with 65W Power allows for easy connectivity and charging of devices, making it convenient for users. The antimicrobial surface ensures a clean and hygienic touch experience, while the secure Android 11 OS with User Profiles provides a safe and personalized user experience.
With the Newline App Store, users can easily access a wide range of applications and tools to enhance their productivity and creativity. The display also offers better connectivity with Wi-Fi 6, ensuring fast and reliable internet access. The embedded 20W speakers deliver clear and immersive audio, enhancing the overall multimedia experience. Additionally, the camera module capability allows for video conferencing and collaboration, making it ideal for remote meetings and distance learning. Compatible with all devices, the NewLine TT-8621Q is a versatile and user-friendly interactive display that meets the needs of any modern workspace or educational setting.
- Large 86" active screen size for a stunning visual experience
- USB Type-C with 65W Power for easy connectivity and charging
- Antimicrobial surface for a clean and hygienic touch experience
- Secure Android 11 OS with User Profiles for a safe and personalized user experience
- Newline App Store for easy access to a wide range of applications and tools
- Better connectivity with Wi-Fi 6 for fast and reliable internet access
- Embedded 20W speakers for clear and immersive audio
- Camera module capability for video conferencing and collaboration
- Compatible with all devices for versatility and user-friendliness
In the Box
Video
Frequently Asked Questions
Q: What is the NewLine TT-8621Q - 86" 4K UHD Interactive Display?A: The NewLine TT-8621Q is a large-format interactive display that offers a variety of features for business and education applications. It features an 86-inch 4K UHD display with a capacitive touch screen, a built-in camera and microphone, and a variety of connectivity options.
Q: What are the benefits of using an interactive display like the NewLine TT-8621Q?A: Interactive displays like the NewLine TT-8621Q offer a number of benefits over traditional projectors and whiteboards, including: * Increased engagement: The interactive display allows users to interact with content in a more engaging way, leading to improved learning and collaboration. * Improved collaboration: The display makes it easy for multiple users to collaborate on projects, share ideas, and brainstorm solutions. * Enhanced productivity: Users can access information and resources conveniently, improving productivity. * Improved communication: The interactive display makes it easier to share information and ideas, improving communication.
Q: What are the key features of the NewLine TT-8621Q?A: The NewLine TT-8621Q offers a number of key features that make it a great choice for businesses and educational institutions, including: * Large 86-inch 4K UHD display with a resolution of 3840 x 2160 pixels. * Capacitive touch screen that supports up to 20 simultaneous touch points. * Built-in camera and microphone for video conferencing and collaboration. * Variety of connectivity options, including HDMI, VGA, USB, and RJ45. * Durable design built to withstand everyday use.
Q: What are some of the applications for the NewLine TT-8621Q?A: The NewLine TT-8621Q can be used for a variety of applications, including: * Business presentations: Deliver impactful presentations with interactive content. * Education: Enhance classroom learning with interactive lessons and activities. * Training: Conduct interactive training sessions for employees or students. * Video conferencing: Collaborate with remote teams or conduct online meetings. * Collaboration: Work together on projects, share ideas, and brainstorm solutions. * Gaming: Enjoy interactive gaming experiences on a large 4K UHD display. * Digital signage: Display engaging and interactive content for advertising or information purposes.
Q: How easy is the NewLine TT-8621Q to use?A: The NewLine TT-8621Q is designed to be user-friendly. The responsive touch screen and intuitive interface make it easy to navigate and interact with content. The built-in camera and microphone enable seamless video conferencing and collaboration.
Product Expert Review
Review of the NewLine TT-8621Q - 86" 4K UHD Interactive Display
Display Quality:
The NewLine TT-8621Q boasts an impressive display with its 4K UHD resolution. The screen provides sharp and detailed images, making it ideal for presentations and visual content. The brightness level is sufficient for well-lit environments, ensuring that the display remains visible. Color accuracy is also commendable, with vibrant and true-to-life colors that enhance the viewing experience.
The touch responsiveness of the display is excellent, registering touch inputs accurately and without delay. The multi-touch capabilities allow for collaborative work, making it suitable for team meetings or interactive classrooms. The anti-glare properties of the screen are effective, reducing reflections and maintaining visibility even in bright environments. The viewing angles are wide, ensuring that content can be seen clearly from different positions in the room.
Performance and Features:
The NewLine TT-8621Q offers a smooth and responsive interface, ensuring a seamless user experience. The touchscreen is compatible with a variety of software, making it versatile and adaptable to different needs. It comes with pre-installed software that adds value and convenience for users.
Connectivity options are ample, including HDMI, USB, Wi-Fi, and Bluetooth. This allows for easy connection to various devices and enables wireless sharing and collaboration. The display also supports stylus input, providing precision for tasks such as drawing or writing. Gesture recognition adds an intuitive element to navigation and control.
User Experience:
Using the NewLine TT-8621Q in various scenarios has been a positive experience. The touchscreen is intuitive and user-friendly, making it accessible to users with different levels of tech-savviness. The learning curve is minimal, allowing users to quickly adapt and utilize the display effectively.
Applications and Use Cases:
The NewLine TT-8621Q is well-suited for presentations, education, and creative work. Its large size and high resolution make it ideal for displaying visual content and engaging audiences. It can be used in classrooms, boardrooms, or creative studios. The multi-touch capabilities and stylus support enhance collaboration and creative tasks.
Durability and Reliability:
The NewLine TT-8621Q is built to last, with durability that ensures longevity. The product comes with a warranty, providing assurance of its reliability. Over time, the touchscreen maintains its performance and resists wear and tear, making it a reliable investment.
Price and Value for Money:
The NewLine TT-8621Q offers good value for money, considering its large size, high resolution, and range of features. It competes well with similar products in the market and provides a cost-effective solution for interactive displays.
Pros and Cons:
Pros:
- High-quality display with sharp resolution and accurate colors.
- Responsive touch interface with multi-touch capabilities.
- Ample connectivity options for versatile usage.
- Additional features like stylus support and gesture recognition.
- Durable and reliable with warranty.
Cons:
- Price may be a consideration for budget-conscious buyers.
- Size may limit portability and usage in smaller spaces.
Conclusion
The NewLine TT-8621Q is an impressive interactive touchscreen display that excels in display quality, performance, and user experience. It offers a range of features and versatility, making it suitable for various applications. With its durability and competitive pricing, it is a valuable investment for those seeking a high-quality interactive display.
