Technical Specifications

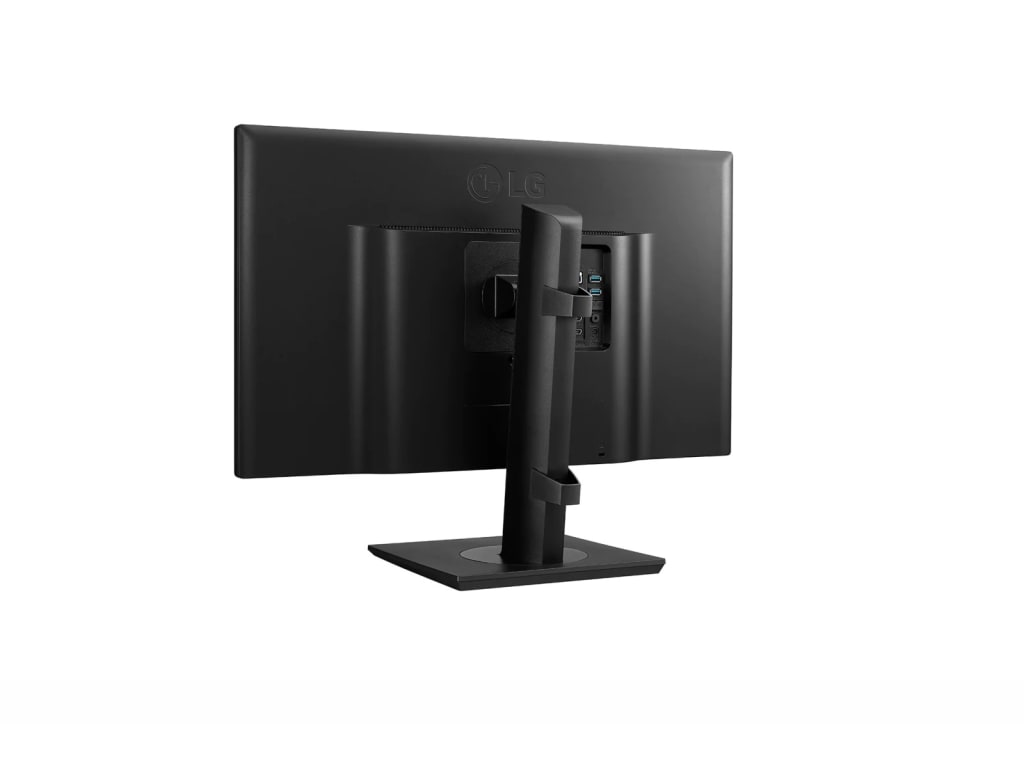

| Model: LG 27HJ713C-B - 27" Clinical Review Monitor with 8MP and sRGB 99% | |
| Panel Spec | |
| Display Type | TFT-LCD |
| Size | 27" |
| Touch Screen | No |
| Resolution | 8MP (3840 x 2160) |
| Aspect Ratio | 16 : 9 |
| Color Depth | 10 bit (1.07 billion colors) |
| Contrast Ratio | 1000 : 1 |
| Backlight | LED |
| Viewing Angle | 178° (H), 178° (V) |

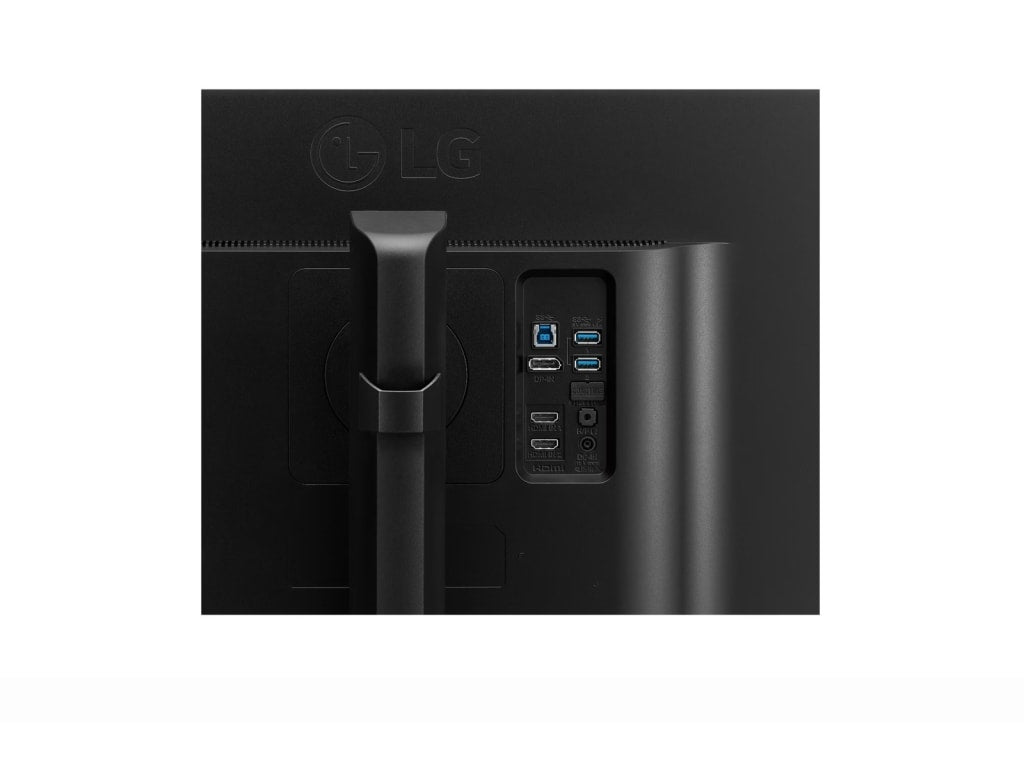

| Interfaces | |
| HDMI | 2 x HDMI (ver. 2.0) |
| DisplayPort | 1 x DisplayPort (ver. 1.2) |
| USB | 3 x USB 3.0 |
| Power Inputs | |
| Power Consumption | 45W (Typical) |
| Power Supply | External Power Adapter |
| Environmental | |
| Operating Temperature | 0 - 40°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 10 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 5.1 kg (11.24 lb) |
| Dimensions (L x W x H) | 63.9 x 43.9 x 22.6 cm (25.2 x 17.3 x 8.9 in.) |
| VESA Mount | 100 x 100 mm |
Resources
Description
The LG 27HJ713C-B is an 8MP clinical review monitor that allows you to easily multi-task while clinical reviewing from different clinical review applications such as department of radiology and exchanges and study information.
- Great image Quality
The 27-inch 8MP IPS display provides the ideal brightness for secondary review. The 178°-wide viewing angle lets patients and doctors to see accurately reproduced images with minimal distortion.
- 350nits (Typ.) & sRGB 99% - Brighter and More Precise
350nits (Typ.) brightness and sRGB 99% of the color space guarantee brighter, more vivid color expression and better resolution for greater image accuracy.
- DICOM Part 14 - Compliance with Medical Standards
The DICOM Part 14 Gamma adjusts the greyscale levels of medical images from various medical imaging modalities, helping more accurate review. Also, it ensures a 250 nit brightness compliant to the ACR-AAPM-SIIM secondary review brightness guideline.
- Brightness Stabilization - Consistently Stable Display
A sensor measures the backlight brightness stability and automatically compensates for brightness fluctuations caused by display aging for a consistently stable display throughout the usage lifespan.
- Flicker Safe - Long Lasting Eye Comfort
Flicker Safe technology virtually eliminates flickering to help reduce eye fatigue.

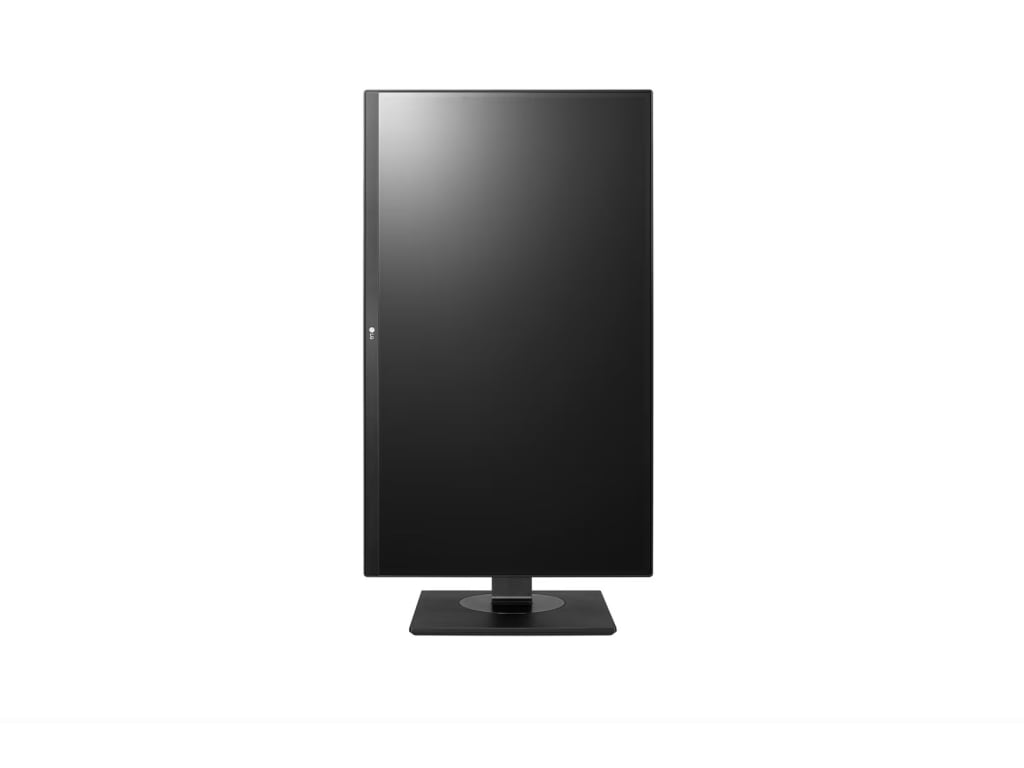

- Two-Way Pivot - Ergonomic Design

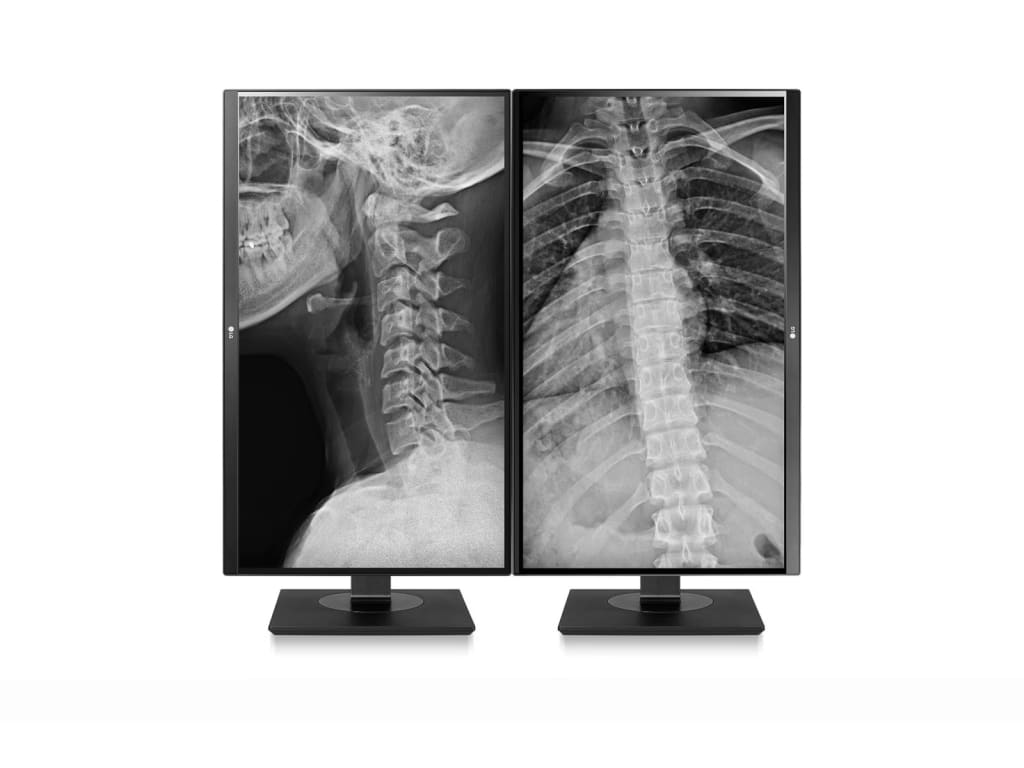

The Ergonomic Stand with Two-Way Pivot adjustment realizes an optimized diagnostic workspace. Rotate two monitors in portrait and use side-by-side for the ultimate reading experience.
In the Box
Frequently Asked Questions
Q: What is the LG 27HJ713C-B - 27" Clinical Review Monitor with 8MP and sRGB 99%?A: The LG 27HJ713C-B is a high-quality clinical review monitor designed for medical professionals. It features a 27-inch display with 8MP resolution and sRGB 99% color accuracy, making it ideal for accurately reviewing medical images and diagnostic scans.
Q: What are the benefits of using the LG 27HJ713C-B in a clinical setting?A: The LG 27HJ713C-B offers several benefits for medical professionals: * Enhanced image quality: With 8MP resolution and sRGB 99% color accuracy, this monitor provides clear and accurate representation of medical images, ensuring accurate diagnosis and treatment planning. * Precise color reproduction: The sRGB 99% color accuracy ensures that medical images are displayed with true-to-life colors, allowing for accurate interpretation and analysis. * Wide viewing angles: The monitor's wide viewing angles ensure that medical professionals can view images from various positions without compromising image quality. * Ergonomic design: The monitor is designed with the comfort of medical professionals in mind, featuring adjustable height, tilt, and swivel options to minimize strain during long hours of use. * DICOM Part 14 compliance: The monitor is compliant with DICOM Part 14 standards, ensuring consistent and accurate display of grayscale images for medical review.
Q: What are the key features of the LG 27HJ713C-B?A: The LG 27HJ713C-B offers a range of features that make it an excellent choice for clinical review: * 27-inch display with 8MP resolution: The large screen size and high resolution allow for detailed examination of medical images. * sRGB 99% color accuracy: The monitor accurately reproduces colors, ensuring precise interpretation of medical images. * DICOM Part 14 compliance: The monitor meets the standards for displaying grayscale medical images. * Wide viewing angles: The monitor provides consistent image quality from various viewing positions. * Ergonomic design: Adjustable height, tilt, and swivel options allow for comfortable and customized viewing. * Multiple connectivity options: The monitor supports HDMI, DisplayPort, and USB connections for easy integration with existing systems.
Q: In what scenarios can the LG 27HJ713C-B be beneficial?A: The LG 27HJ713C-B can be beneficial in various medical scenarios, including: * Radiology: Accurate interpretation of X-rays, CT scans, and MRIs. * Pathology: Detailed examination of tissue samples and slides. * Cardiology: Precise analysis of cardiac images and ECG results. * Surgery: Clear visualization of surgical procedures and real-time imaging. * Telemedicine: Reliable display of medical images during remote consultations. * Medical education: High-quality display for teaching and training purposes.
Q: How user-friendly is the LG 27HJ713C-B?A: The LG 27HJ713C-B is designed to be user-friendly and easy to use. It features an intuitive interface and customizable settings for personalized viewing preferences. The monitor's ergonomic design ensures comfort during extended use, and its connectivity options make it compatible with various devices and systems.
