Technical Specifications
| Category | Specification |
|---|---|
| Display | |
| Screen Size (Diagonal) | 64.5" |
| Backlight | D-LED |
| Native Resolution | 4K (3840 x 2160) |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1200:1 |
| Dynamic Contrast Ratio | 5000:1 |
| Brightness (Maximum) | 400 cd/m² |
| Response Time | 8 ms |
| Display Colours | 1.07 billion |
| Refresh Rate | 60 Hz |
| Viewing Angle | 178° / 178° |
| Viewable Area | 1428 x 804 mm / 56 x 32 in |
| Glass Treatment | Antiglare, Mohs 7 |
| Glass Thickness | 3.2 mm |
| Sensors | Light |
| Audio | 2 x 10 watts |
| Lifetime (Maximum) | 50,000 hours |
| Frame Material | Aluminium |
| Connectivity | |

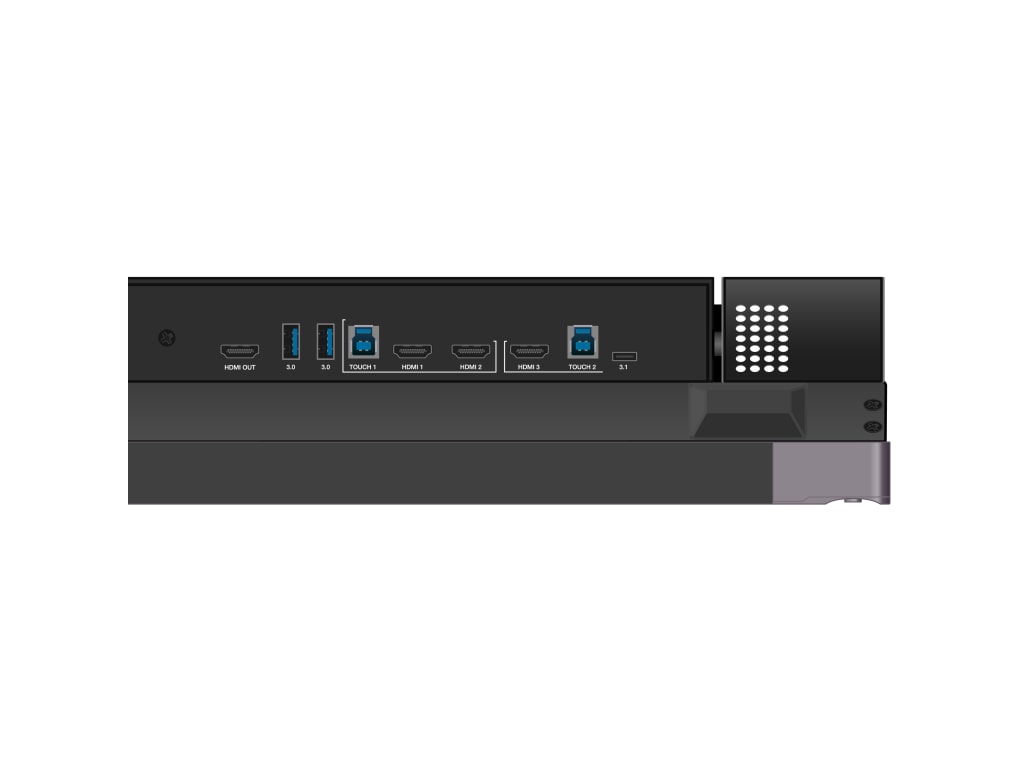

| Inputs | |
| Mini D-sub 15-pin (VGA) | Yes |
| HDMI 2.0 | 2x |
| HDMI 2.0 with ARC | Yes |
| USB-A 2.0 | Yes |
| USB-A 3.0 | 4x |
| USB-C | Yes |
| USB-B | 2x |
| 3.5 mm Stereo Mini Jack | Yes |
| RJ45 - LAN 10/100/1000 | Yes |
| Outputs | |
| 3.5 mm Stereo Mini Jack | Yes |
| SPDIF | Yes |
| RJ45 - LAN 10/100/1000 | Yes |
| Other | |
| Wi-Fi | 802.11 a/n/ac/ax |
| Bluetooth | 2.1, 3, 4, 4.1, 4.2, 5 |
| Open Pluggable Specification (OPS) Slot | Yes |
| Power | |
| Power Supply | AC 100 - 240 V, 50/60 Hz |
| Power Consumption (Max) | 450 W |
| Power Consumption (Network Standby) | <2.0 W |
| Power Consumption (Standby) | <0.5 W |
| Touch System | |
| Touch Technology | IR |
| Touch Points | Maximum 40 |
| Typical Response Time | <10 ms |
| Accuracy | ±1.5 mm |
| Minimum Object Size (Single Touch) | >3 mm |
| Minimum Object Size (Multi-Touch) | >8 mm |
| Supported Operating Systems | Windows, Linux, Mac OS, Chrome |
| Embedded System | |
| Operating System & Version | Android 11 |
| System on Chip (SoC) | Amlogic™ T982 |
| CPU | ARM Cortex™ A55 Quad Core 1.4GHz |
| GPU | ARM Mail G52 MC2 |
| RAM | 4 GB |
| ROM | 32 GB |
| Included Applications | Whiteboard, Browser, Finder, LightCast3, Annotation, WPS Office, Stopwatch, Screen Capture, LightServer, LightManager, LightStore, Palette, Keeper, Visualizer, Welcome, Cloud Drive, SpotLight, Screen Recording, Timer |
| Optional Upgrades | Intel® Core™ Gen i5-1135G7 Processor, 8GB RAM, 256GB ROM OPS, Intel® Core™ Gen i7-1165G7 Processor, 16GB RAM, 256GB ROM OPS |
| General | |
| Dimensions (W x H x D) | 1488 x 82 x 897 mm / 58.9 x 3.4 x 35.1 in |
| Weight | 38 kg / 83.8 lbs |
| Shipping Dimensions (W x H x D) | 1628 x 208 x 1005 mm / 64.1 x 8.2 x 39.6 in |
| Shipping Weight | 44.7 kg / 98.34 lbs |
| Mounting | VESA MIS-F 600 x 400 |
| Operating Temperature | 0 ~ 40°C / 32 ~104°F |
| Operating Humidity | 10 ~ 90% |
| Operating Altitude | <5000 m / >16404 ft |
| Storage Temperature | -20 ~ 60°C / -4 ~140°F |
| Storage Humidity | 10 ~ 90% |
| Security | PIN, Kensington Lock |

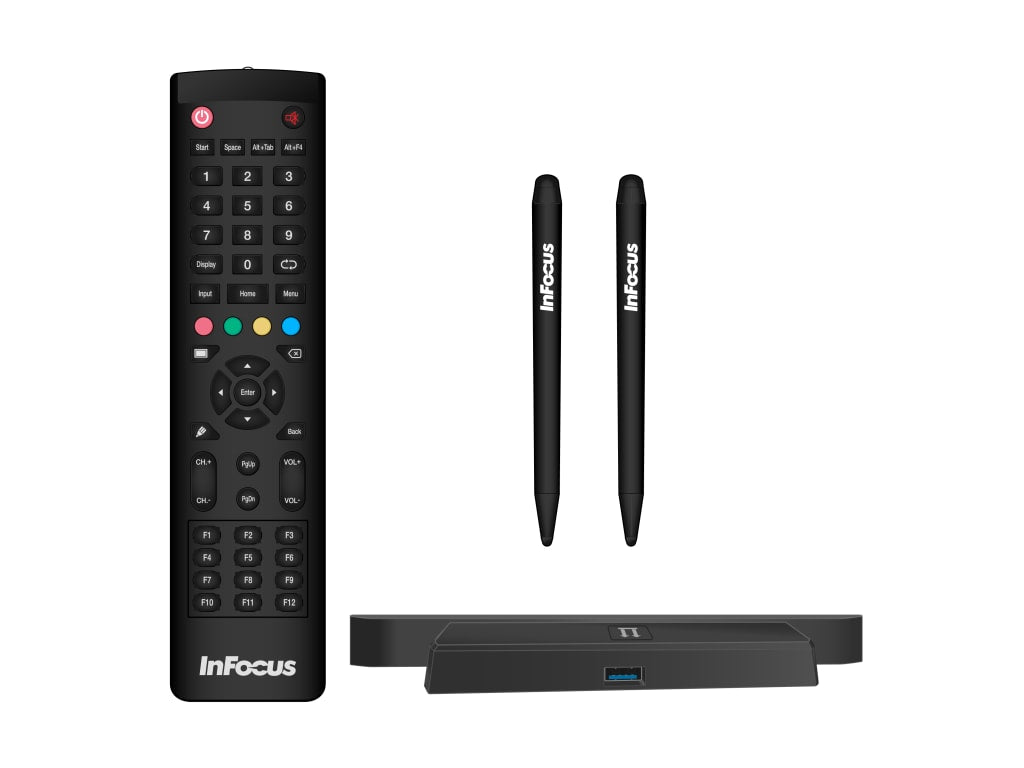

| In the Box | Remote Control (no batteries), 2x Stylus, Power Cord, 3m USB A to B, 3m HDMI, Quick Start Guide, Wi-Fi Module |
| Safety and Regulatory | CB, CE EMC, IC, FCC, cTUVus, NOM, EAC, BIS |
| Environmental | RoHS, WEEE, EU Energy |
Description
Introducing the InFocus INF6510 - a cutting-edge 65" 4K JTouch Interactive Touch Screen that will revolutionize your interactive experience. With its impressive screen size of 64.5" and native resolution of 4K (3840 x 2160), this touch screen delivers stunning visuals and crystal-clear images. The touch technology used is infrared, ensuring precise and responsive touch capabilities. Plus, with a display lifetime maximum of 50000 hours, you can rely on this touch screen for long-lasting performance.
Equipped with a brightness of 400 nits, the InFocus INF6510 ensures vibrant and vivid visuals even in well-lit environments. Powered by Android 11, this touch screen offers a user-friendly and intuitive operating system that allows for seamless navigation and access to a wide range of apps and features. Additionally, the InFocus INF6510 comes with a 3-year warranty, providing you with peace of mind and assurance of its quality and durability.
- Impressive 65" 4K JTouch Interactive Touch Screen
- Infrared touch technology for precise and responsive touch capabilities
- Long display lifetime maximum of 50000 hours
- Vibrant visuals with a brightness of 400 nits
- Powered by Android 11 for a user-friendly operating system
- Comes with a 3-year warranty for added peace of mind
In the Box
Video
Frequently Asked Questions
Q: What is the InFocus INF6510 - 65" 4K JTouch Interactive Touch Screen?A: The InFocus INF6510 is a 65-inch 4K JTouch Interactive Touch Screen that offers a range of features for interactive and collaborative experiences. It provides a high-resolution display with touch screen capabilities, making it ideal for business, education, and entertainment purposes.
Q: What are the benefits of using an interactive touch screen?A: Interactive touch screens offer numerous advantages over traditional displays, including: - Enhanced engagement: The interactive nature of the touch screen encourages active participation and engagement, leading to improved learning and collaboration. - Versatile functionality: The touch screen allows users to interact with content, annotate, draw, and manipulate objects, providing a versatile platform for various applications. - Seamless collaboration: Multiple users can simultaneously interact with the touch screen, making it easy to collaborate on projects, share ideas, and work together in real-time. - Intuitive and user-friendly: The touch screen interface is intuitive and user-friendly, making it accessible to users of all skill levels. - Interactive presentations: The touch screen enables dynamic and interactive presentations, allowing presenters to engage their audience and deliver information in a more engaging manner. - Enhanced productivity: With features like multi-touch capabilities and easy access to resources, the touch screen enhances productivity by streamlining workflows and providing quick access to information.
Q: What are the key features of the InFocus INF6510?A: The InFocus INF6510 offers a range of features that make it a powerful and versatile interactive touch screen: - 65-inch 4K UHD display: The high-resolution display provides crisp and detailed visuals, ensuring a captivating viewing experience. - Multi-touch capabilities: The touch screen supports up to 20 simultaneous touch points, allowing multiple users to interact at the same time. - Built-in speakers: The touch screen includes integrated speakers, eliminating the need for external audio devices. - Connectivity options: It offers a variety of connectivity options, including HDMI, VGA, USB, and RJ45, making it compatible with various devices and easy to integrate into existing setups. - Durable design: The touch screen is built to withstand everyday use and features a robust construction, ensuring long-lasting performance.
Q: What are some possible applications for the InFocus INF6510?A: The InFocus INF6510 can be utilized in a wide range of scenarios, including: - Business presentations and meetings: The touch screen facilitates interactive presentations, allowing presenters to engage their audience and deliver impactful messages. - Education and training: The touch screen enhances learning experiences by enabling interactive lessons, collaborative activities, and engaging educational content. - Video conferencing and collaboration: With its built-in camera and microphone, the touch screen enables seamless video conferencing and collaboration, connecting remote teams and facilitating effective communication. - Digital signage: The touch screen can be used as an interactive signage solution, providing engaging and interactive content to captivate customers and enhance brand experiences. - Gaming and entertainment: The touch screen offers immersive gaming experiences, making it suitable for gaming setups and entertainment purposes.
Q: How user-friendly is the InFocus INF6510?A: The InFocus INF6510 is designed to be user-friendly and intuitive. The touch screen interface is responsive, allowing for smooth and effortless interaction. Additionally, the included software and features are designed to enhance usability and provide a seamless user experience.
