Technical Specifications
| Category | Specification |
|---|---|
| Display | |
| Screen Size (Diagonal) | 74.52" |
| Backlight | D-LED |
| Native Resolution | 4K (3840 x 2160) |
| Pixels | 3840 x 2160 |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1200:1 |
| Dynamic Contrast Ratio | 5000:1 |
| Brightness (Maximum) | 400 cd/m² |
| Response Time | 8 ms |
| Display Colours | 1.07 billion |
| Refresh Rate | 60 Hz |
| Viewing Angle (H/V) | 178° / 178° |
| Viewable Area (mm/in) | 1650 x 928 mm / 65 x 37 in |
| Glass Treatment | Antiglare, Mohs 7 |
| Glass Thickness | 3.2 mm |
| Sensors | Light |
| Audio | 2 x 10 W |
| Lifetime (Maximum) | 50,000 hours |
| Frame Material | Aluminium |

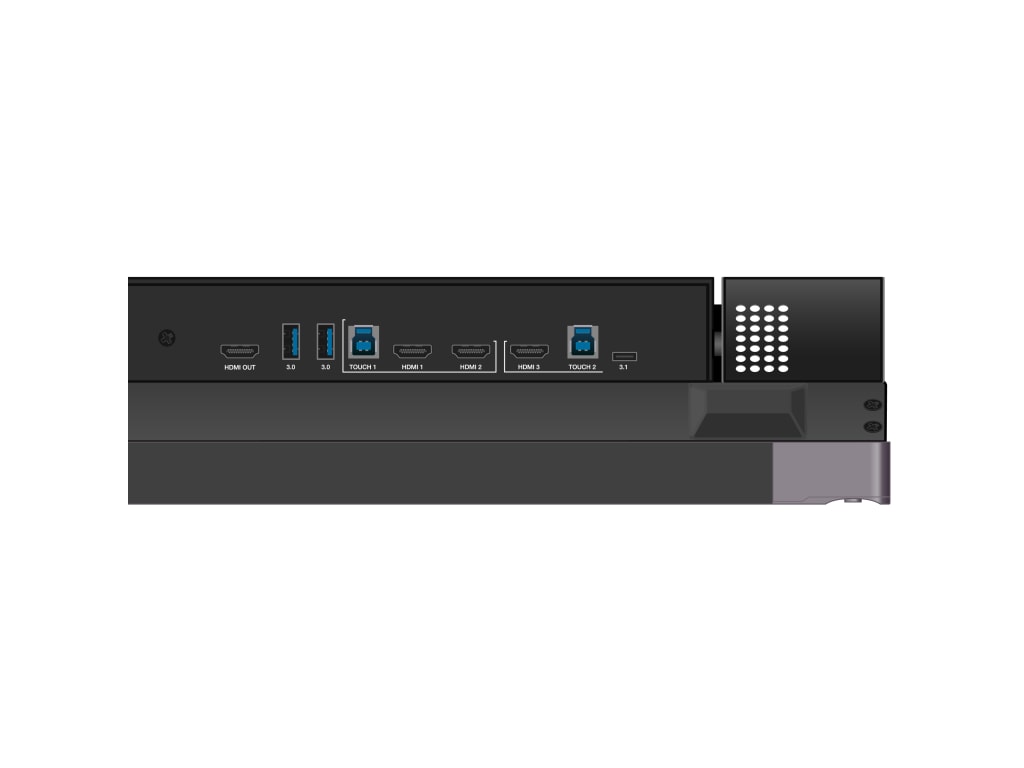

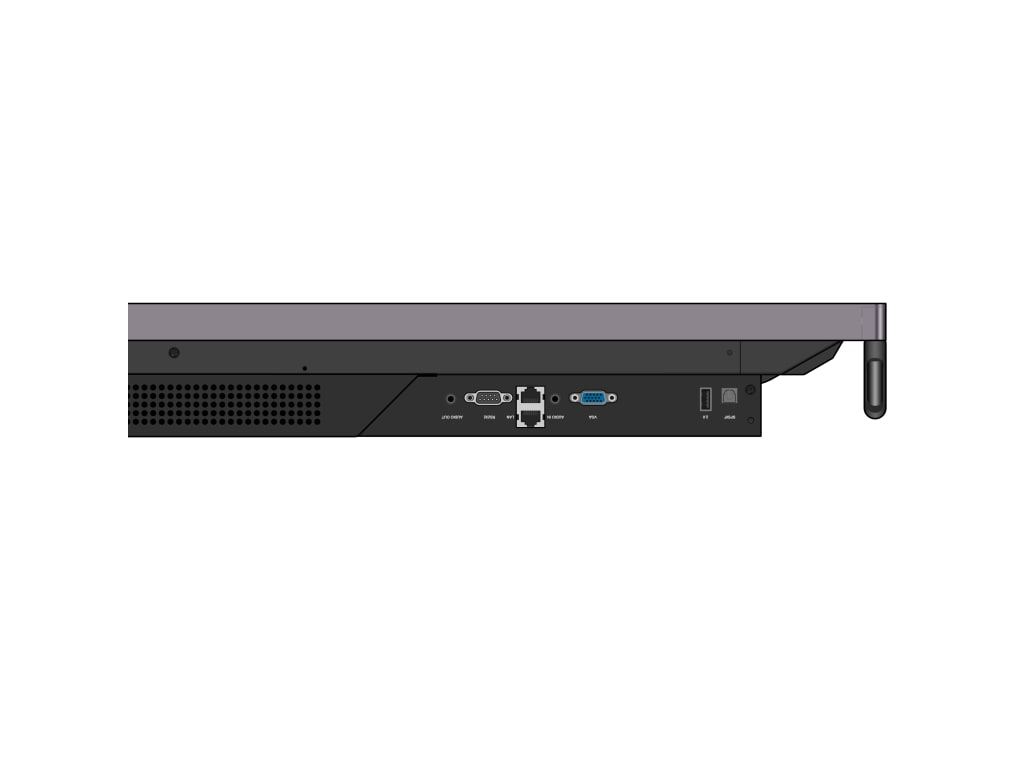

| Connectivity | |
| Inputs | |
| Mini D-sub 15-pin (VGA) | Yes |
| HDMI™ 2.0 | 2x |
| HDMI™ 2.0 with ARC | Yes |
| USB-A 2.0 | Yes |
| USB-A 3.0 | 4x |
| USB-C | Yes |
| USB-B | 2x |
| 3.5 mm Stereo Mini Jack | Yes |
| RJ45 - LAN 10/100/1000 | Yes |
| Outputs | |
| 3.5 mm Stereo Mini Jack | Yes |
| SPDIF | Yes |
| RJ45 - LAN 10/100/1000 | Yes |
| Other | |
| Wi-Fi | 802.11a/n/ac/ax |
| Bluetooth | 2.1, 3, 4, 4.1, 4.2, 5 |
| Open Pluggable Specification (OPS) Slot | Yes |
| Power | |
| Power Supply | AC 100 - 240 V, 50/60 Hz |
| Power Consumption (Max) | 550 W |
| Power Consumption (Network Standby) | <2.0 W |
| Power Consumption (Standby) | <0.5 W |
| Touch System | |
| Touch Technology | IR |
| Touch Points | Maximum 40 |
| Typical Response Time | <10 ms |
| Accuracy | ±1.5 mm |
| Minimum Object Size (Single Touch) | >3 mm |
| Minimum Object Size (Multi-Touch) | >8 mm |
| Supported Operating Systems | Windows, Linux, Mac OS, Chrome |
| Embedded System | |
| Operating System & Version | Android 11 |
| System on Chip (SoC) | Amlogic™ T982 |
| CPU | ARM Cortex™ A55 Quad Core 1.4GHz |
| GPU | ARM Mail G52 MC2 |
| RAM | 4 GB |
| ROM | 32 GB |
| Included Applications | Whiteboard, Browser, Finder, LightCast3, Annotation, WPS Office, Stopwatch, Screen Capture, LightServer, LightManager, LightStore, Palette, Keeper, Visualizer, Welcome, Cloud Drive, SpotLight, Screen Recording, Timer |
| Optional Upgrades | Intel® Core™ Gen i5-1135G7 Processor, 8GB RAM, 256GB ROM OPS, Intel® Core™ Gen i7-1165G7 Processor, 16GB RAM, 256GB ROM OPS |
| General | |
| Dimensions (W x H x D) | 1709 x 88 x 1020 mm / 67.3 x 3.4 x 40.1 in |
| Weight | 49.5 kg / 109.1 lbs |
| Shipping Dimensions (W x H x D) | 1853 x 225 x 1140 mm / 73 x 8.9 x 44.9 in |
| Shipping Weight | 63.4 kg / 139.8 lbs |
| Mounting | VESA MIS-F 800 x 400 |
| Operating Temperature | 0 ~ 40°C / 32 ~104°F |
| Operating Humidity | 10 ~ 90% |
| Operating Altitude | <5000 m / >16404 ft |
| Storage Temperature | -20 ~ 60°C / -4 ~140°F |
| Storage Humidity | 10 ~ 90% |
| Security | PIN, Kensington Lock |

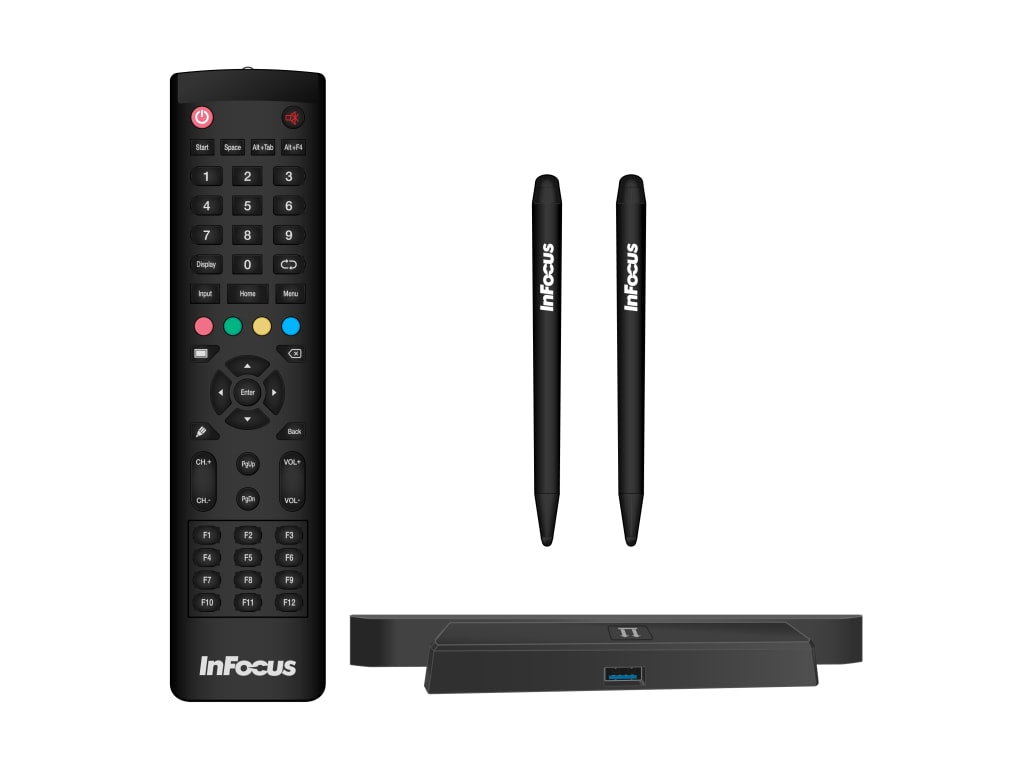

| In the Box | Remote Control (no batteries), 2x Stylus, Power Cord, 3m USB A to B, 3m HDMI, Quick Start Guide, Wi-Fi Module |
| Safety and Regulatory | CB, CE EMC, IC, FCC, cTUVus, NOM, EAC, BIS |
| Environmental | RoHS, WEEE, EU Energy |
Description
Introducing the InFocus 75JTouchKit, a cutting-edge 75" interactive screen that will revolutionize your digital experience. With its impressive 4K resolution and 400 maximum cd/m2 brightness, this touch screen delivers stunning visuals that will captivate your audience. Powered by Android 11, this interactive screen offers a seamless and user-friendly operating system that allows for easy navigation and access to a wide range of apps and features.
The InFocus 75JTouchKit boasts a generous screen size of 74.52", providing ample space for interactive presentations, collaborative work, and engaging content. Its infrared touch technology ensures precise and responsive touch interactions, making it ideal for educational institutions, corporate settings, and entertainment venues. With a display lifetime maximum of 50,000 hours and a 3-year warranty, you can trust that this interactive screen is built to last.
- 75" 4K JTouch Interactive touch screen
- Android 11 operating system for seamless navigation
- Infrared touch technology for precise touch interactions
- Impressive 400 maximum cd/m2 brightness for stunning visuals
- Generous screen size of 74.52" for immersive experiences
- Display lifetime maximum of 50,000 hours for long-lasting performance
- Comes with a 3-year warranty for peace of mind
In the Box
Video
Frequently Asked Questions
Q: What is the InFocus 75JTouchKit - 75" Interactive Screen?A: The InFocus 75JTouchKit is a large 75-inch interactive screen that offers a range of features for various applications. It provides an immersive experience with its interactive capabilities, allowing users to engage with content in a more dynamic way.
Q: How can I benefit from using the InFocus 75JTouchKit?A: The InFocus 75JTouchKit offers numerous benefits in different scenarios, including: * Education: Enhance learning experiences by allowing students to interact with educational content, encouraging active participation and collaboration. * Business presentations: Make presentations more engaging and interactive, enabling presenters to highlight key points and involve the audience. * Collaboration: Facilitate teamwork and brainstorming sessions by providing a platform for multiple users to contribute and collaborate on projects. * Video conferencing: Conduct seamless video conferences with the built-in camera and microphone, enabling remote collaboration and communication. * Digital signage: Create captivating and interactive displays to attract and engage customers in retail or public spaces.
Q: What are the notable features of the InFocus 75JTouchKit?A: The InFocus 75JTouchKit offers a range of impressive features, including: * Large 75-inch display: Enjoy a spacious and immersive viewing experience with the 75-inch interactive screen. * Full HD resolution: The screen delivers crisp and clear visuals with its Full HD resolution, ensuring excellent image quality. * Touchscreen functionality: Interact directly with the display using touch gestures, allowing for intuitive navigation and interaction. * Multiple connectivity options: Connect various devices such as laptops, tablets, and cameras using HDMI, USB, and other connectivity options. * Durable design: The InFocus 75JTouchKit is built to withstand daily use, ensuring long-lasting performance and reliability.
Q: What are some common applications for the InFocus 75JTouchKit?A: The InFocus 75JTouchKit can be utilized in various applications, including: * Classroom learning: Foster interactive and engaging learning environments by incorporating the interactive screen into educational settings. * Corporate boardrooms: Enhance presentations and meetings with interactive features, enabling effective communication and collaboration. * Training sessions: Conduct interactive training sessions, allowing participants to actively engage with the content and enhance learning outcomes. * Retail environments: Utilize the interactive screen for digital signage, providing captivating and interactive displays to attract customers.
Q: Is the InFocus 75JTouchKit user-friendly?A: Absolutely! The InFocus 75JTouchKit is designed with user-friendliness in mind. Its intuitive touch interface and easy-to-navigate menus make it simple for users of all skill levels to operate. Whether you're a teacher, presenter, or business professional, you'll find the interactive screen easy to use and navigate.
