| Technical Specifications | Details |
|---|---|
| Description | 86" PCAP Touch Screen |
| Screen Size | 86" |
| Aspect Ratio | 16:9 |
| Dimensions (W x H x D) | 81.27″ x 49.23″ x 4.09″ |
| Active Area | 73.40″ x 41.35″ |
| Resolution | 3840 x 2160 (4K UHD) |
| Contrast Ratio | 1000:1 |
| Brightness | 500 cd/m² |
| Display Colors | 10-bit |
| Touch Technology | Projected Capacitive (PCAP) |
| Touch Points | 50 |
| Response Time | 15ms |
| Touch Method | Finger or Capacitive Pen |
| Glass Thickness | 5mm (vandal-resistant) |
| Surface Treatment | Hard Coating (2H), Anti-Glare (3%) |
| Power Consumption | 2.7A |
| Weight | 286 lbs |
| Connectivity |
|
| VESA Mount Pattern | 600 × 400 |
| Mounting Options | Wall, Floor Stand, Kiosk, Table |
| Warranty | 3-year warranty (1-year for LCD and touch screen) |
The Digital Touch Systems 8545T is an 86" 4K PCAP Interactive Screen that offers unsurpassed accuracy, optics, and durability. Built to be waterproof, dust-proof, and with long-term stability, this touchscreen is a great candidate for your most demanding applications. The PCAP touch screen line yields less than a 1% failure rate while still boasting a stunning appearance. This multi-touch display comes with standard VESA mounting patterns for landscape, portrait, kiosk, or table mounting options. The vandal-resistant glass is 5mm thick, providing exceptional durability and protection.
The newest in touch technology
- Quick and smooth touch response
- Anti-glare and scratch-resistant glass coating
- 86" 4K UHD PCAP Interactive Screen with 50 Touch Points

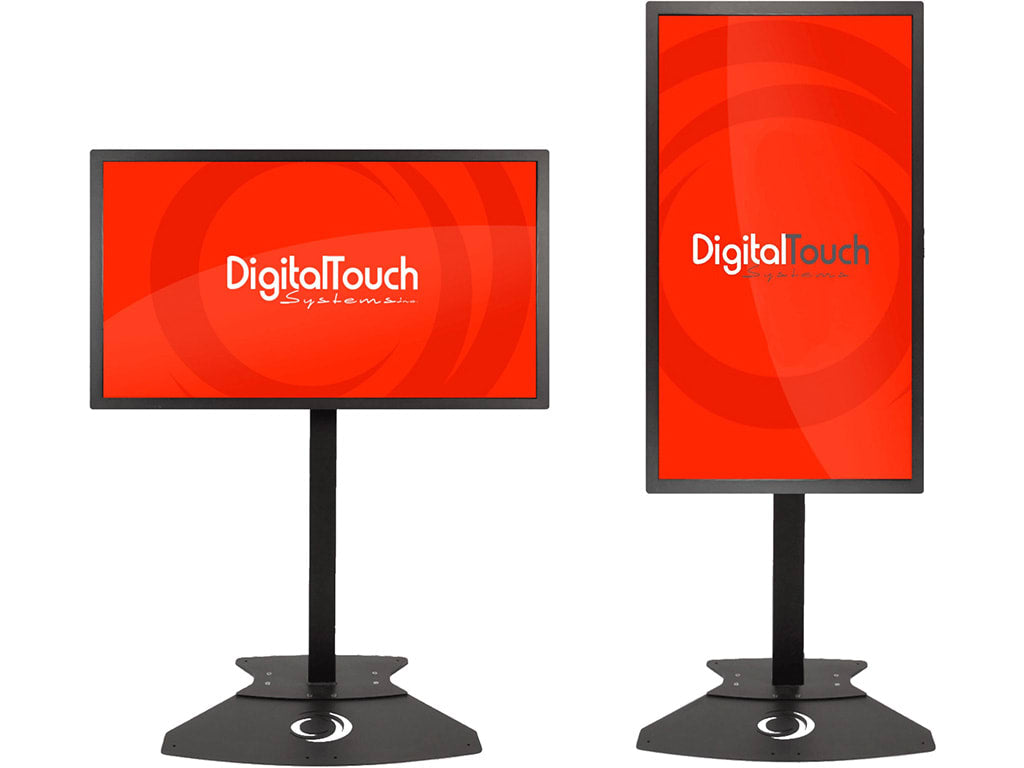

- Many mounting options to choose from

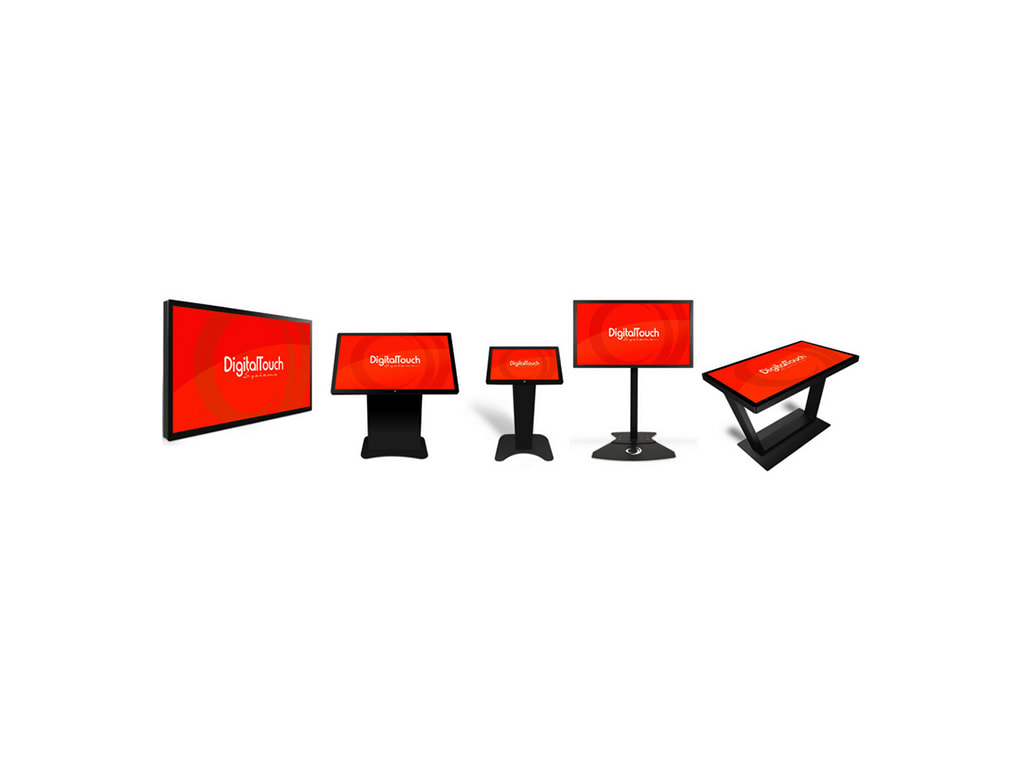

Digital Touch Systems touch screen monitors are available in a variety of builds to match any environment, including touchscreen tables, kiosks, floor stands, or wall-mounted installations.
