| Technical Specifications | Details |
|---|---|
| Description | 65" PCAP Touch Screen |
| Screen Size | 65" |
| Aspect Ratio | 16:9 |
| Dimensions (W x H x D) | 60.25″ x 35.65″ x 2.6″ |
| Active Area | 56.31″ x 31.74″ |
| Resolution | 3840 x 2160 (4K UHD) |
| Contrast Ratio | 1400:1 |
| Brightness | 450 cd/m² |
| Display Colors | 10-bit |
| Touch Technology | Projected Capacitive (PCAP) |
| Touch Points | 50 |
| Response Time | 15ms |
| Touch Method | Finger or Capacitive Pen |
| Glass Thickness | 5mm (vandal-resistant) |
| Surface Treatment | Hard Coating (2H), Anti-Glare (1%) |
| Power Consumption | 1.4A |
| Weight | 150 lbs |
| Connectivity |
|
| VESA Mount Pattern | 600 × 400 |

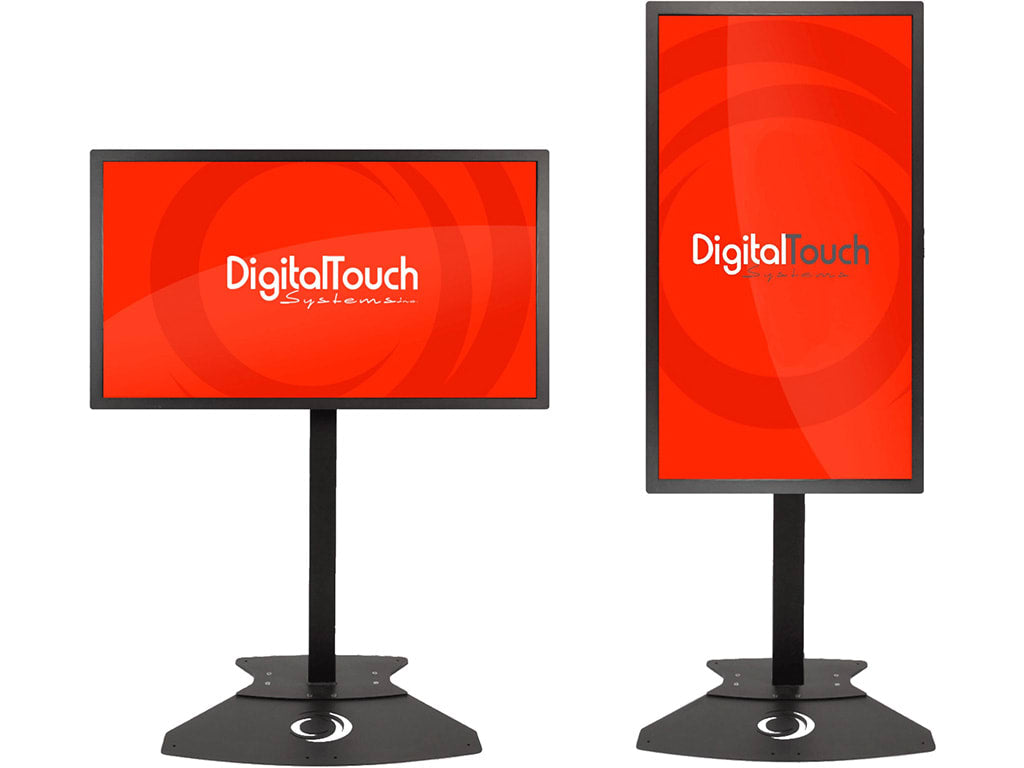

| Mounting Options | Wall, Floor Stand, Kiosk, Table |
| Warranty | 3-year warranty (1-year for LCD and touch screen) |
The Digital Touch Systems 6550T is a 65" 4K PCAP Interactive Screen that offers unsurpassed accuracy, optics, and durability. Built to be waterproof, dust-proof, and with long-term stability, this touchscreen is ideal for the most demanding applications. The PCAP touch screen line yields less than a 1% failure rate while maintaining a sleek and professional appearance. This multi-touch display includes standard VESA mounting patterns for landscape, portrait, kiosk, or table mounting options. The vandal-resistant 5mm glass ensures exceptional durability and long-lasting performance.

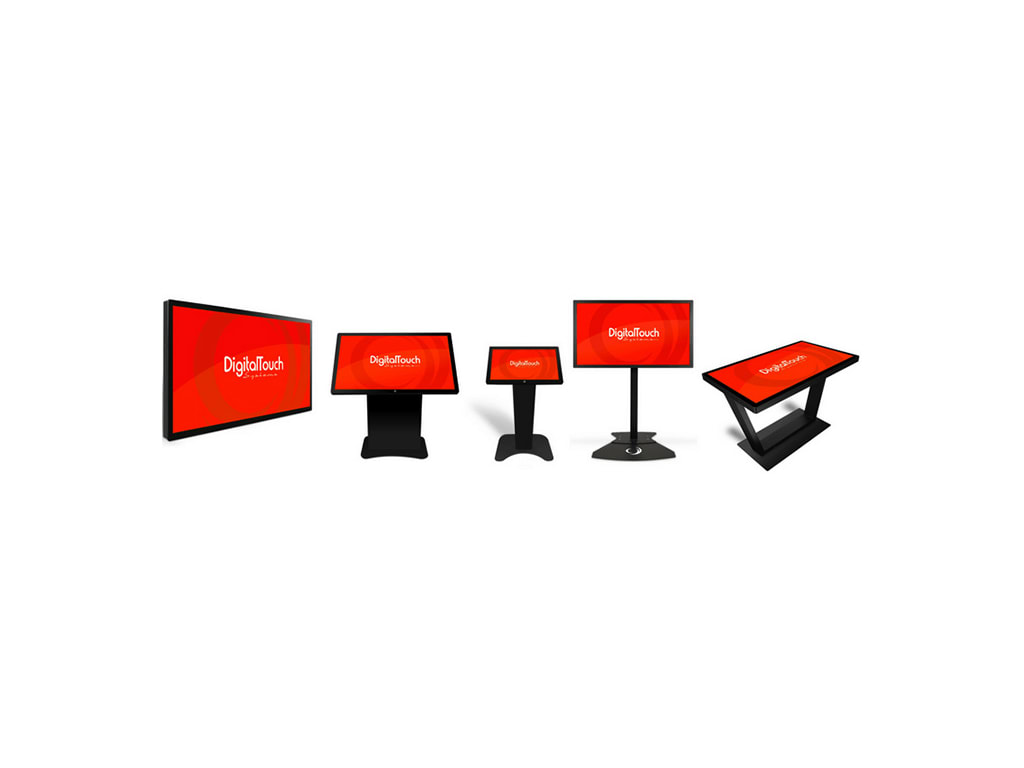

Featuring the newest in touch technology, Digital Touch Systems monitors are available in a variety of builds to match any environment, including touchscreen tables, kiosks, floor stands, or wall-mounted installations. Each model combines advanced engineering with premium materials to ensure a reliable and responsive touch experience.
