| Technical Specifications | Details |
|---|---|
| Model | CTI-6086K+UH20 |
| Screen Size | 86 inches |
| Resolution | 3840 x 2160 (4K UHD) |
| Aspect Ratio | 16:9 |
| Panel Type | Infrared recognition with toughened glass (Level 7 Mohs) |
| Touch Points | 20 points touch, 10 points writing |
| Response Time | ≤10 ms |
| Refresh Rate | 60 Hz |
| Brightness | 350 cd/m² |
| Contrast Ratio | 1100:1 |
| Viewing Angle | 178° horizontal, 178° vertical |
| Speakers | Built-in 2 x 10W + 15W, 2.1 channel |
| Operating System Compatibility | Android 8.0 built-in; Compatible with Windows, Linux, MacOSX, Chrome |

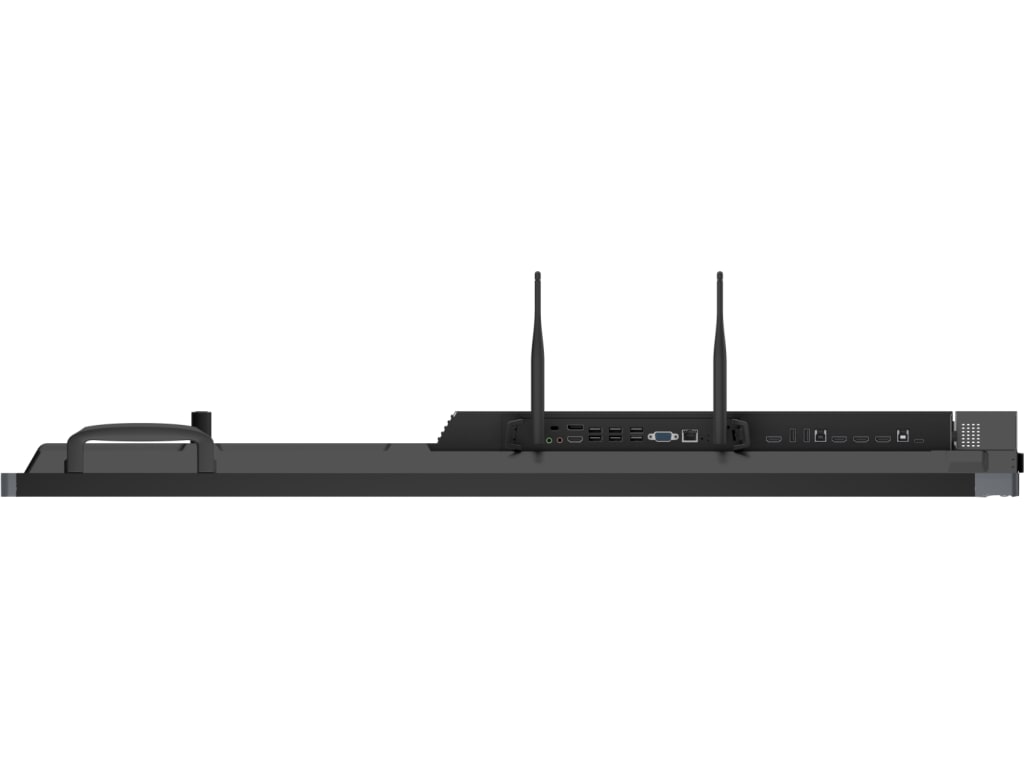

| Connectivity | HDMI Input 3, HDMI Output 1, USB 2.0 x1, USB 3.0 x4, Touch Output x2, VGA Input x1, Audio In x1, Audio Out x1, RS232 x1, RJ45 x2, SPDIF x1 |
| Dimensions (W x H x D) | 74.61" x 41.97" x N/A |
| Power Requirements | 100-240V ~ 50/60Hz |
| Standby Power | ≤0.5W |
| Overall Power (nominal) | 700W |

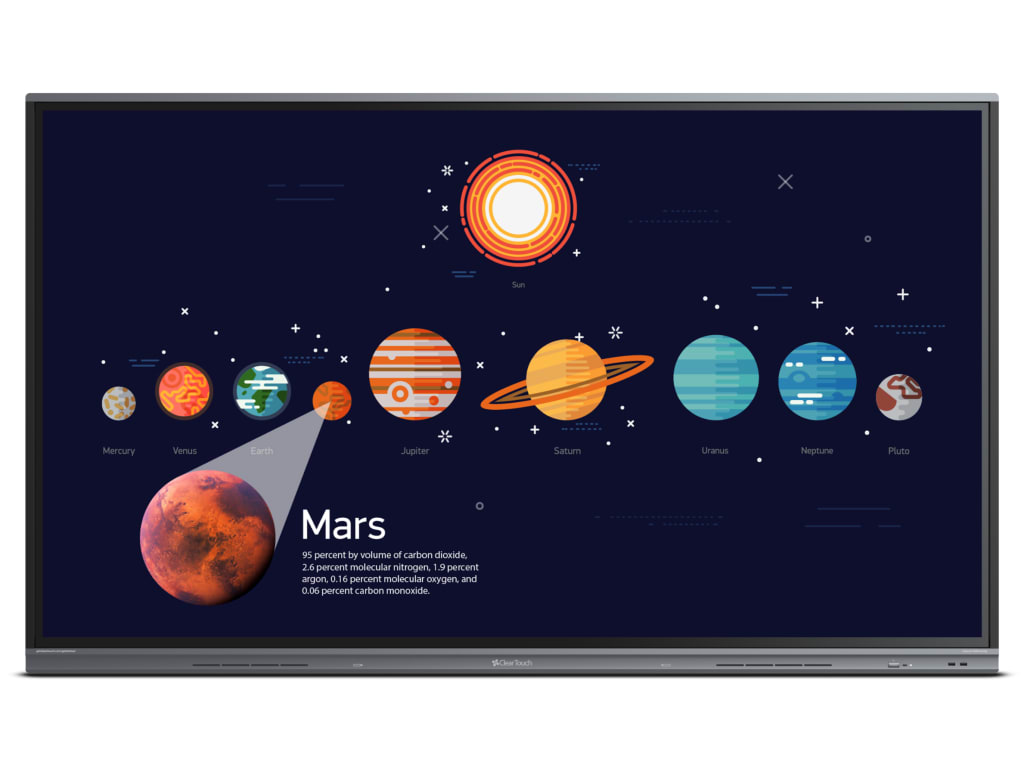

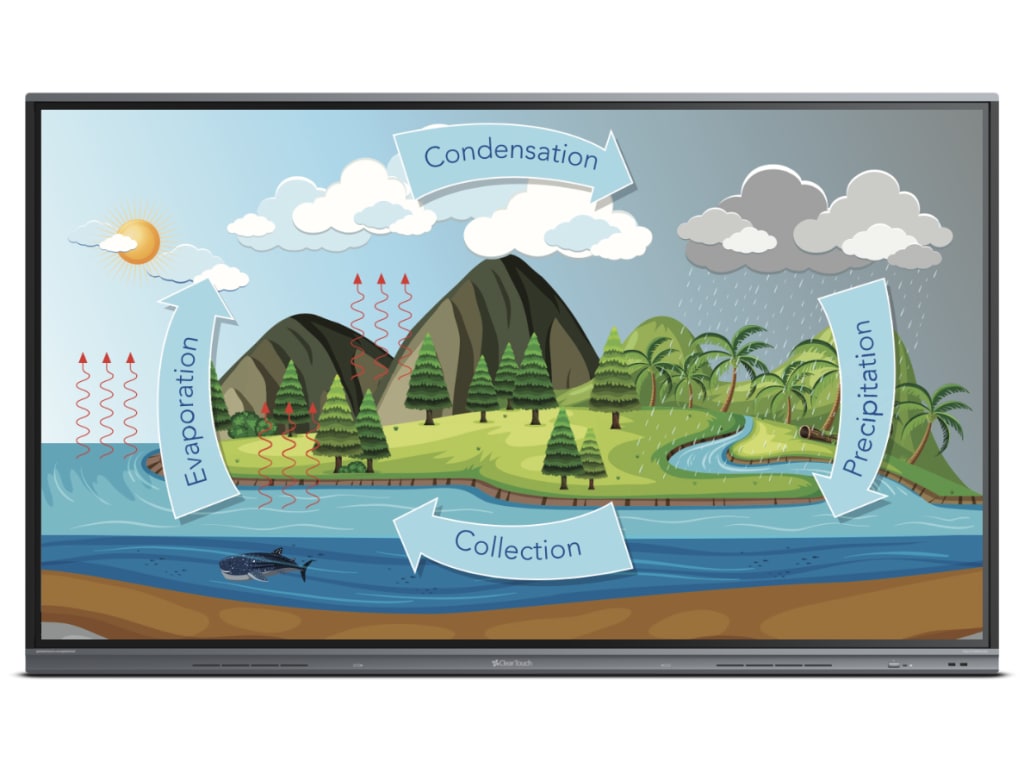

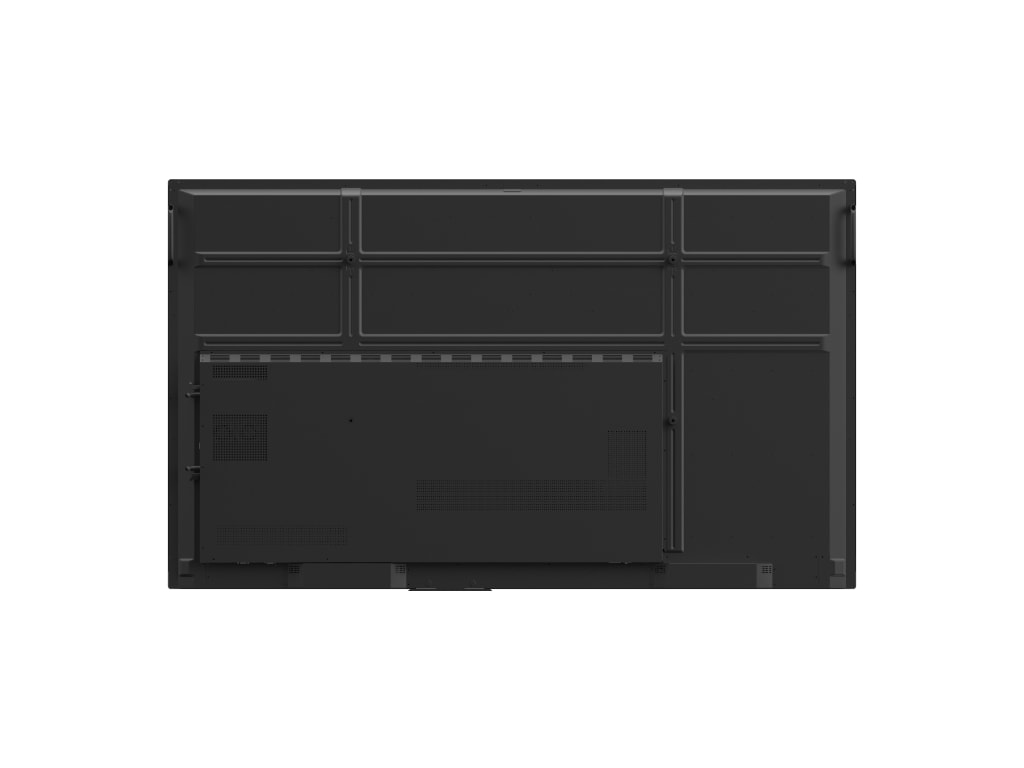

Clear Touch CTI-6086K+UH20 - 86" Interactive Screen with Wall Mount and Wi-Fi Module. The 6000K+ Interactive Panel delivers an engaging experience with its 86" Ultra HD resolution display of 3840 x 2160. Featuring a brightness of 350 cd/m², a 1100:1 contrast ratio, and a 178° wide viewing angle, this panel provides stunning visuals from any perspective. With infrared multi-touch recognition supporting 20 points of touch and 10 points of writing, it enables seamless collaboration in classrooms and meeting spaces. The included Wi-Fi module ensures reliable connectivity, while the pre-installed wall mount with brackets simplifies installation. Built-in speakers and subwoofer deliver clear, powerful audio for an immersive experience.

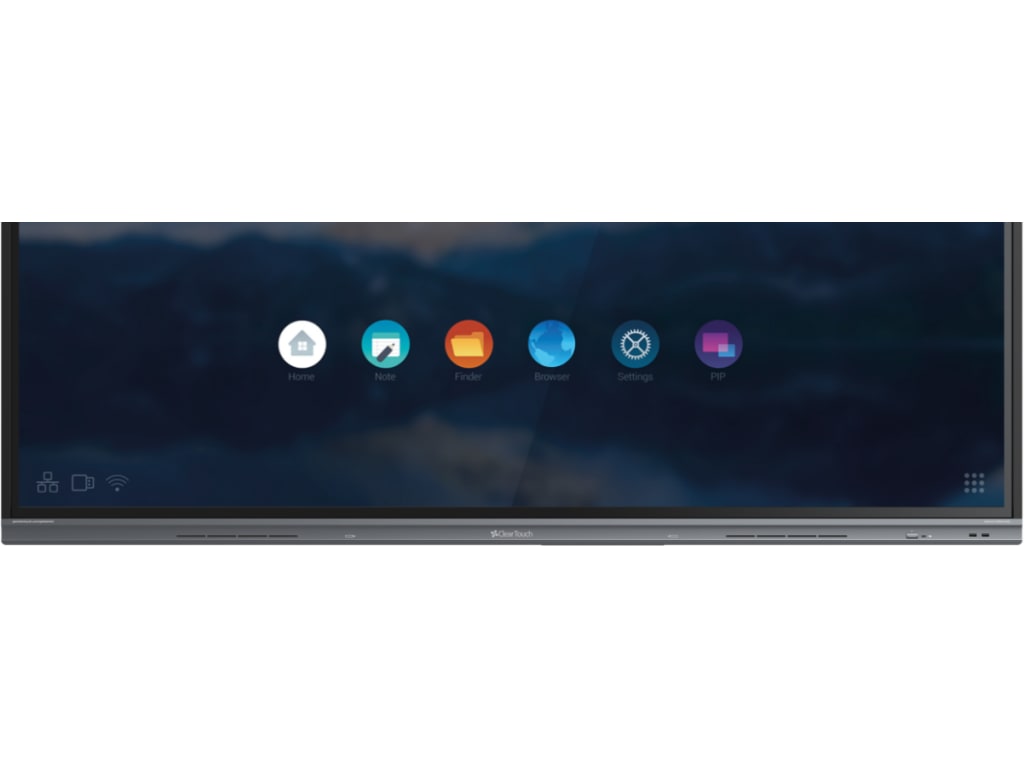

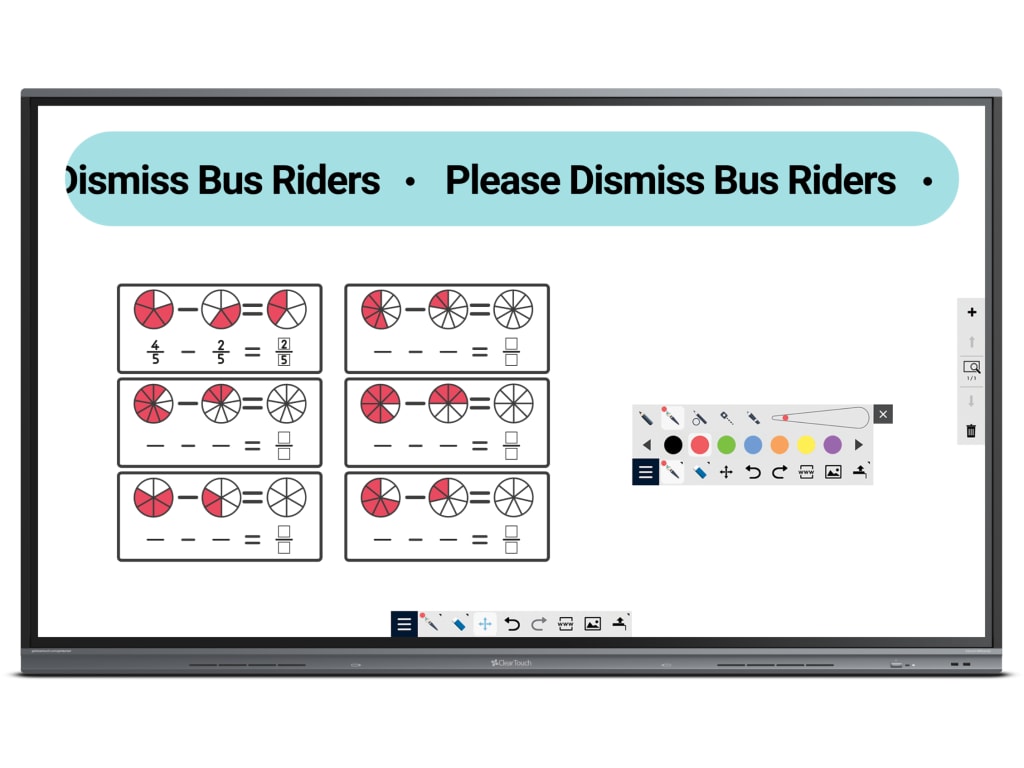

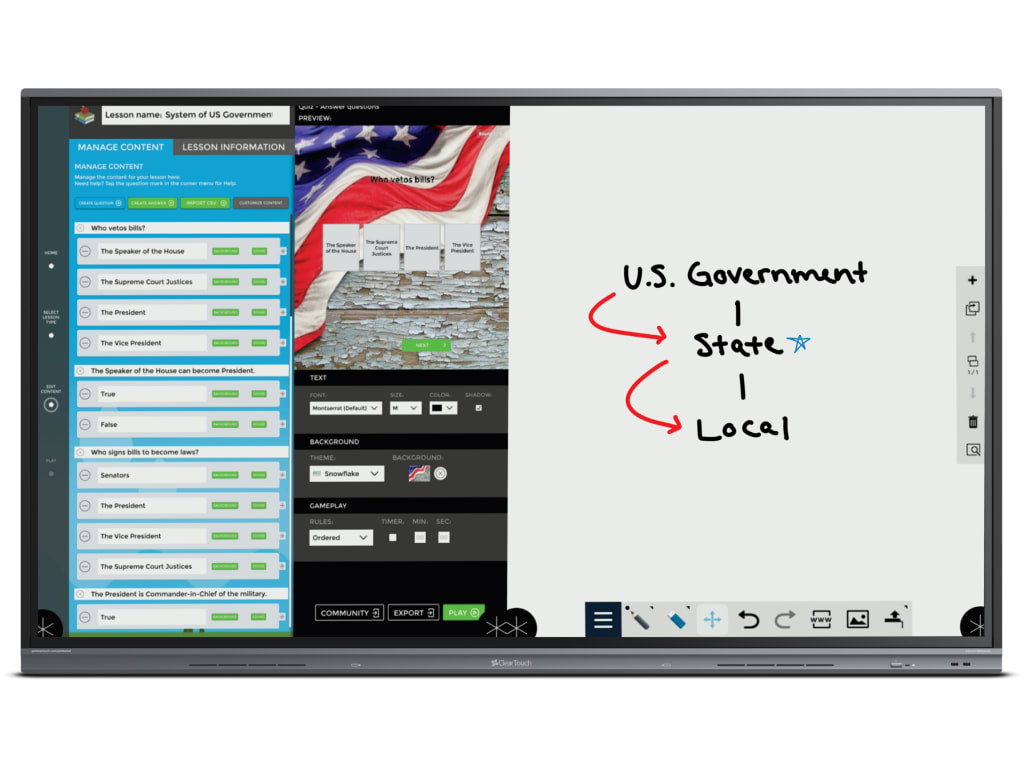

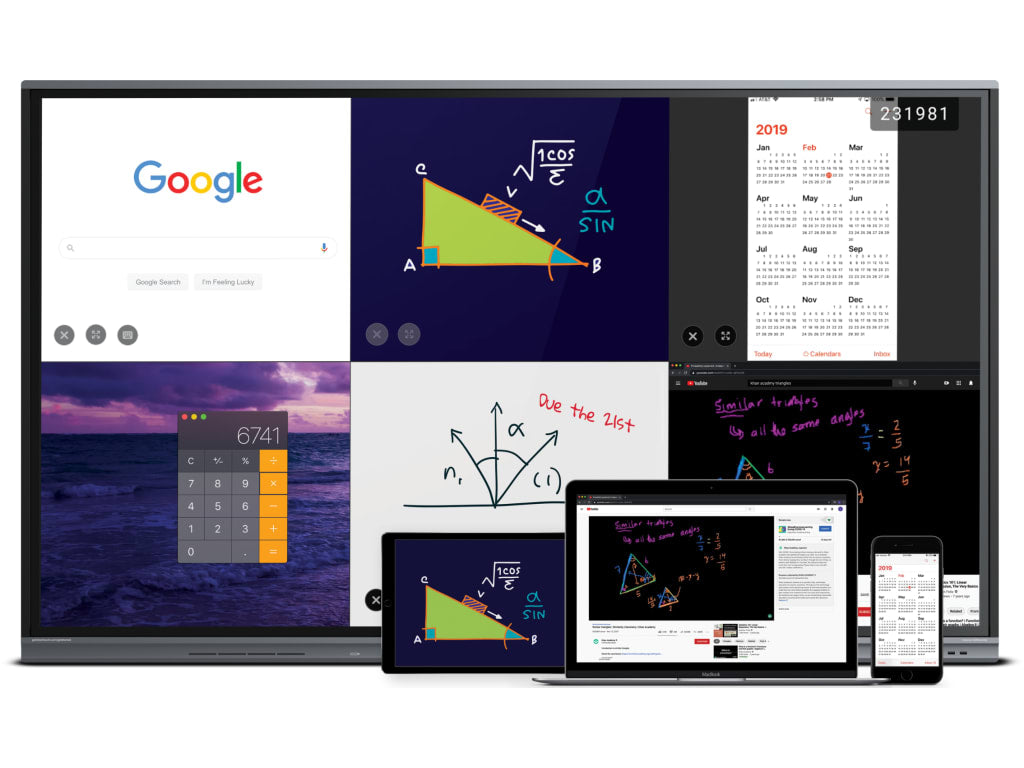

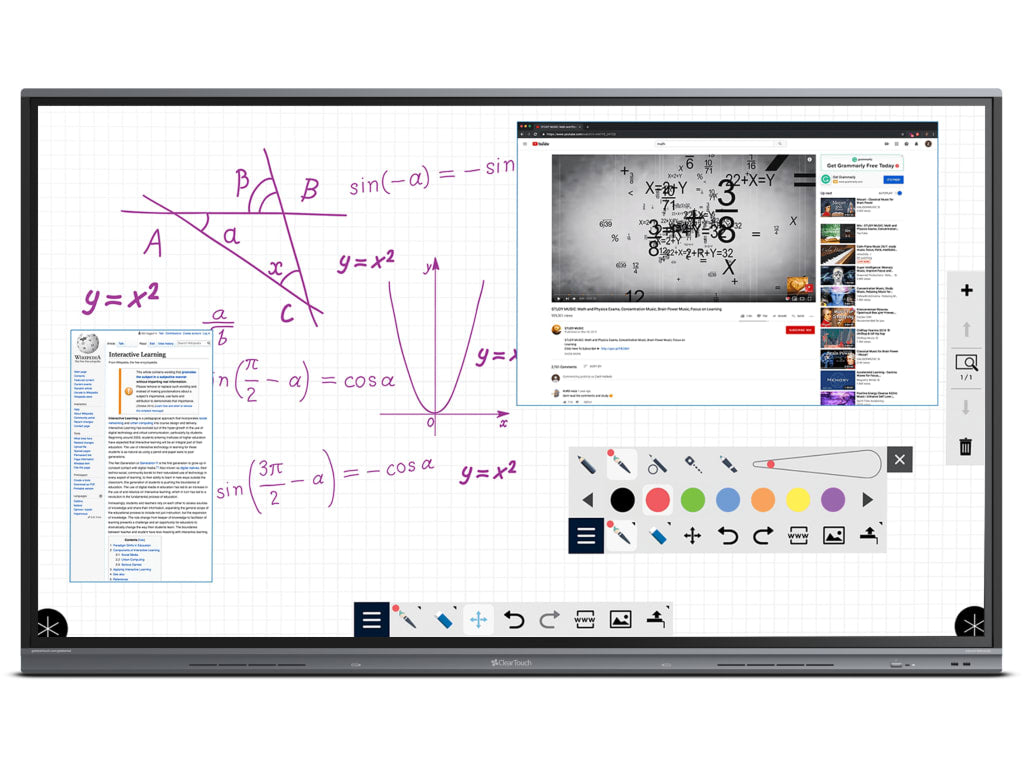

Powered by Android 9.0 with a quad-core A73 processor, the CTI-6086K+UH20 offers responsive performance and smooth operation. Clear Touch’s software suite enhances interactivity with real-time collaboration, infinite whiteboard, and remote management tools, creating a complete digital learning and presentation ecosystem. Designed for flexibility and reliability, this all-in-one panel includes all essential components to get started immediately, making it a trusted solution for modern classrooms and business environments. A standard 1-year warranty is included, with extended coverage options available.
Video
- American standard power cord
- USB touch cable (Type A-B)
- HDMI cable
- Remote control
- Writing pens (2)
- Wi-Fi Module
- Wall Mount with Brackets
- User Manuals / Quick Start Guide
