Technical Specifications
| Model: AG Neovo RX-24G Specifications | |
| Panel Spec | |
| Display Type | TFT-LCD |
| Size | 24" |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16 : 9 |
| Color Depth | 8 bit |
| Contrast Ratio | 1000 : 1 |
| Backlight | LED |
| Viewing Angle | 178° (H), 178° (V) |
| Interfaces | |
| HDMI | 1 x HDMI |
| VGA | 1 x VGA |
| Power Inputs | |
| Power Consumption | 30W |
| Environmental | |
| Operating Temperature | 0 - 40°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 10 - 90% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 5.5 kg ( 12.13 lb ) |
| Dimensions (L x W x H) | 55.5 x 33.2 x 5.9 cm (21.85 x 13.07 x 2.32 in.) |
| Note | N/A |
Description

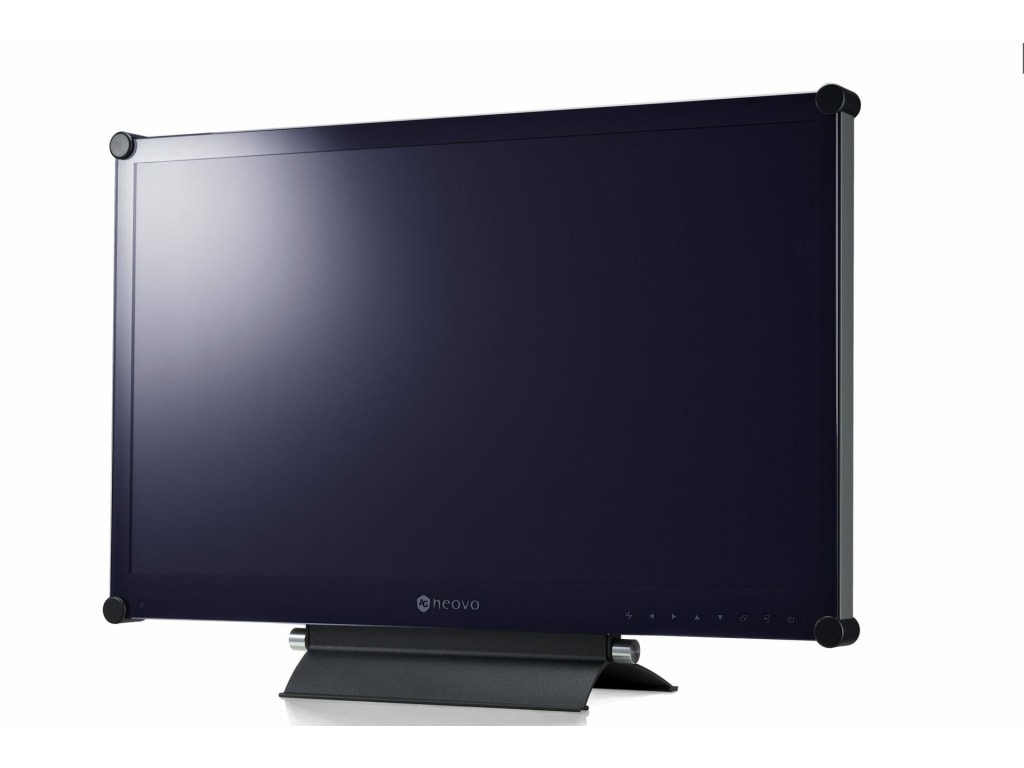

The AG Neovo RX-24G is a 24-inch security monitor designed for video surveillance. With its metal casing and VA panel, this monitor is built to withstand critical environments and perform 24/7 operations. It features a Full HD 1080p resolution and utilizes AG Neovo's patented Anti-Burn-in technology to prevent image ghosting. The NeoV Optical Glass screen protects the display from scratches and other damages, ensuring long-lasting performance. With versatile connectivity options including VGA, DVI, HDMI, DisplayPort, Composite (BNC), and S-Video inputs, this monitor is compatible with various devices and systems.

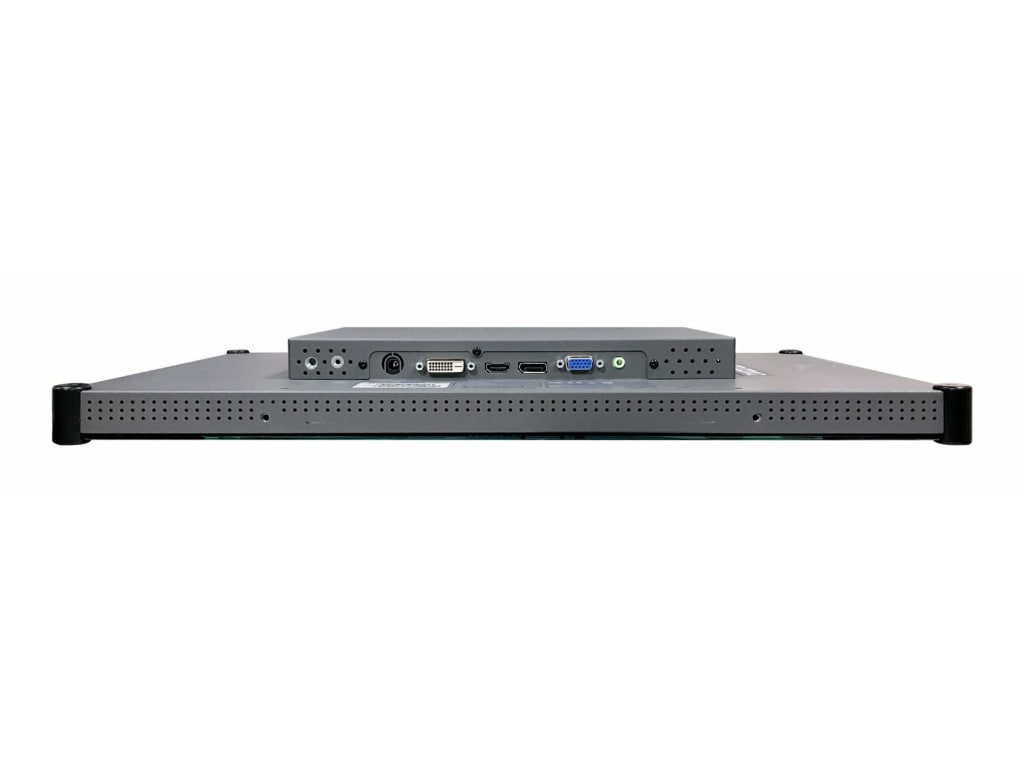

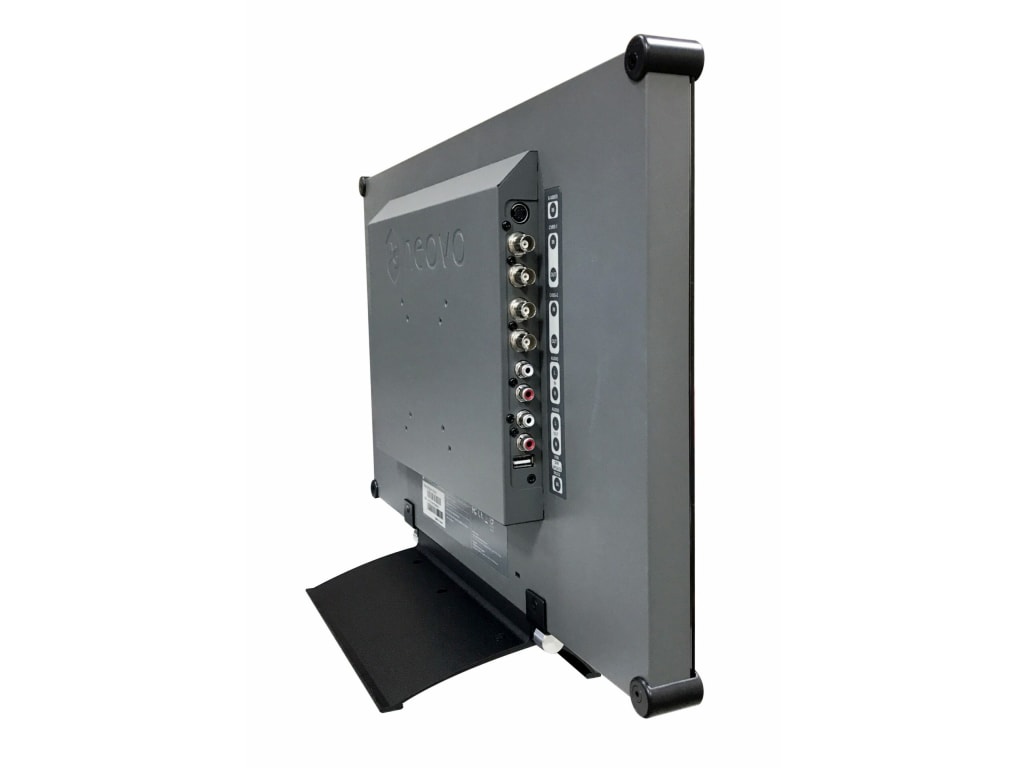

The RX-24G security monitor offers versatile connectivity options, including VGA, DVI, HDMI, DisplayPort, Composite (BNC), and S-Video inputs. It also features a Composite (BNC) passive loop-through output port, allowing for instant monitoring and testing while feeding videos to other devices. The monitor's Anti-Burn-in technology prevents image ghosting, ensuring stable and high-quality visuals. With its NeoV Optical Glass screen and metal casing, the RX-24G is protected from incidental damage and impact, making it suitable for critical environments.
In the Box
Frequently Asked Questions
Q: What is the AG Neovo RX-24G?A: The AG Neovo RX-24G is a 24" 1080p security monitor with a metal casing and VA panel. It is designed specifically for security and surveillance applications, providing high-quality video display and reliable performance.
Q: What are the benefits of using the AG Neovo RX-24G?A: The AG Neovo RX-24G offers several benefits for security monitoring scenarios: * High-resolution display: With its 1080p resolution, the monitor ensures sharp and detailed video playback, allowing for accurate monitoring and identification of objects or individuals. * Wide viewing angles: The VA panel technology provides wide viewing angles, ensuring that the screen can be easily seen from different positions and reducing the risk of missing important details. * Durable metal casing: The metal casing offers enhanced protection and durability, making the monitor suitable for demanding environments and ensuring long-term reliability. * Versatile connectivity: The monitor is equipped with various connectivity options, including HDMI, VGA, and BNC inputs, allowing for easy integration with different surveillance systems.
Q: What are the key features of the AG Neovo RX-24G?A: The AG Neovo RX-24G comes with several key features that enhance its performance and usability: * 24" display size: The monitor's 24" size provides a comfortable viewing experience while still being compact enough for easy installation in different security setups. * VA panel technology: The VA panel delivers excellent color reproduction and wide viewing angles, ensuring accurate and consistent visuals from different perspectives. * Anti-Burn-in™ technology: This feature helps prevent image retention or burn-in, which is particularly important for security monitoring applications where static images may be displayed for extended periods. * Picture-in-Picture (PiP) functionality: The PiP feature allows simultaneous display of multiple video sources, enabling efficient monitoring of different camera feeds on a single screen. * VESA mount compatibility: The monitor is VESA mount compatible, offering flexible installation options and allowing for easy integration into existing security setups.
Q: In what scenarios can the AG Neovo RX-24G be beneficial?A: The AG Neovo RX-24G is well-suited for various security monitoring scenarios, including: * Surveillance control rooms: The monitor's high resolution and wide viewing angles make it ideal for monitoring multiple camera feeds in control room environments. * Retail stores: The reliable performance and durable metal casing of the monitor ensure continuous operation and effective surveillance in retail settings. * Banks and financial institutions: The monitor's anti-burn-in technology and versatile connectivity options make it suitable for security monitoring in banking environments. * Transportation hubs: With its clear display and wide viewing angles, the monitor can assist in monitoring and ensuring the safety of passengers in airports, train stations, and bus terminals. * Industrial facilities: The monitor's robust construction and high-quality display make it suitable for monitoring critical areas and processes in industrial settings.
Q: Is the AG Neovo RX-24G easy to set up and use?A: Yes, the AG Neovo RX-24G is designed to be user-friendly. It can be easily set up and connected to compatible surveillance systems using the available connectivity options. The intuitive on-screen display menu allows for convenient adjustments and customization of display settings according to specific monitoring requirements.
