Technical Specifications
| Model: AG Neovo PM-48 Specifications | |
| Panel Spec | |
| Display Type | TFT-LCD |
| Size | 48" |
| Touch Screen | No |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16 : 9 |
| Color Depth | 8 bit |
| Contrast Ratio | 4000 : 1 |
| Backlight | LED |
| Viewing Angle | 178° (H), 178° (V) |
| Interfaces | |
| Ethernet | 1 x RJ-45 Female, 10 / 100 / 1000 BaseT |
| USB | 2 x USB Type A |
| Power Inputs | |
| Power over Ethernet (PoE) | Not supported |
| Power Consumption | AC 100-240V, 50/60Hz |
| Environmental | |
| Operating Temperature | 0 - 40°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 10 - 90% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 25 kg ( 55.12 lb ) |
| Dimensions (L x W x H) | 109.9 x 62.1 x 5.3 cm (43.27 x 24.45 x 2.09 in.) |
| Note | - |
Resources
Description

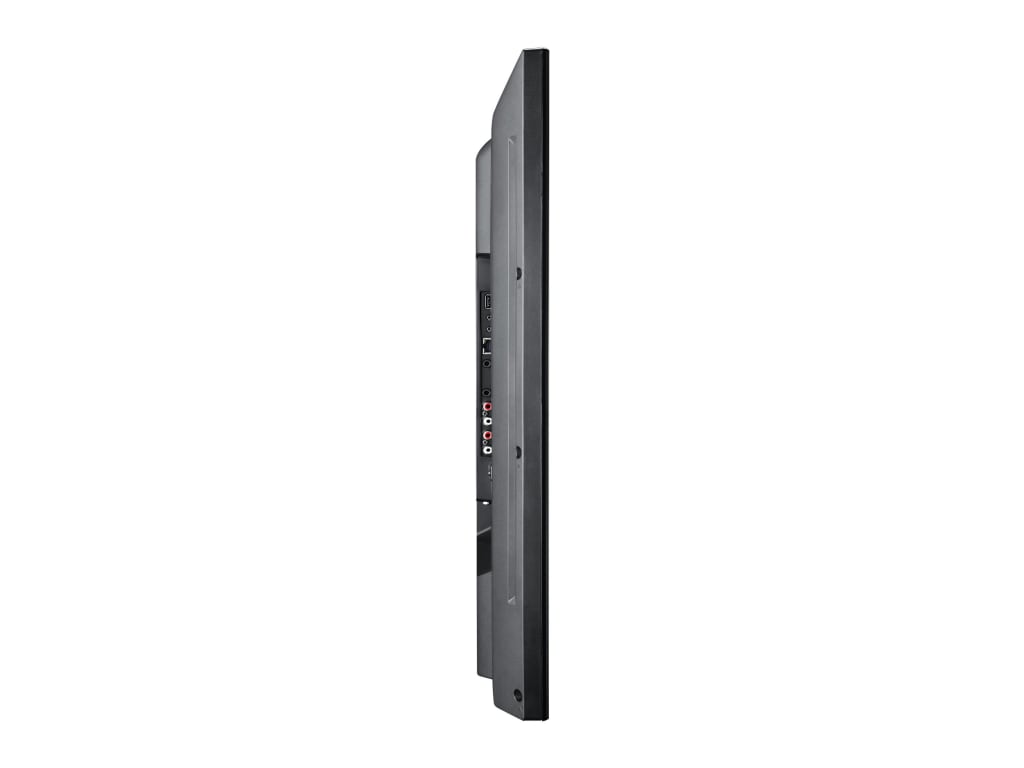

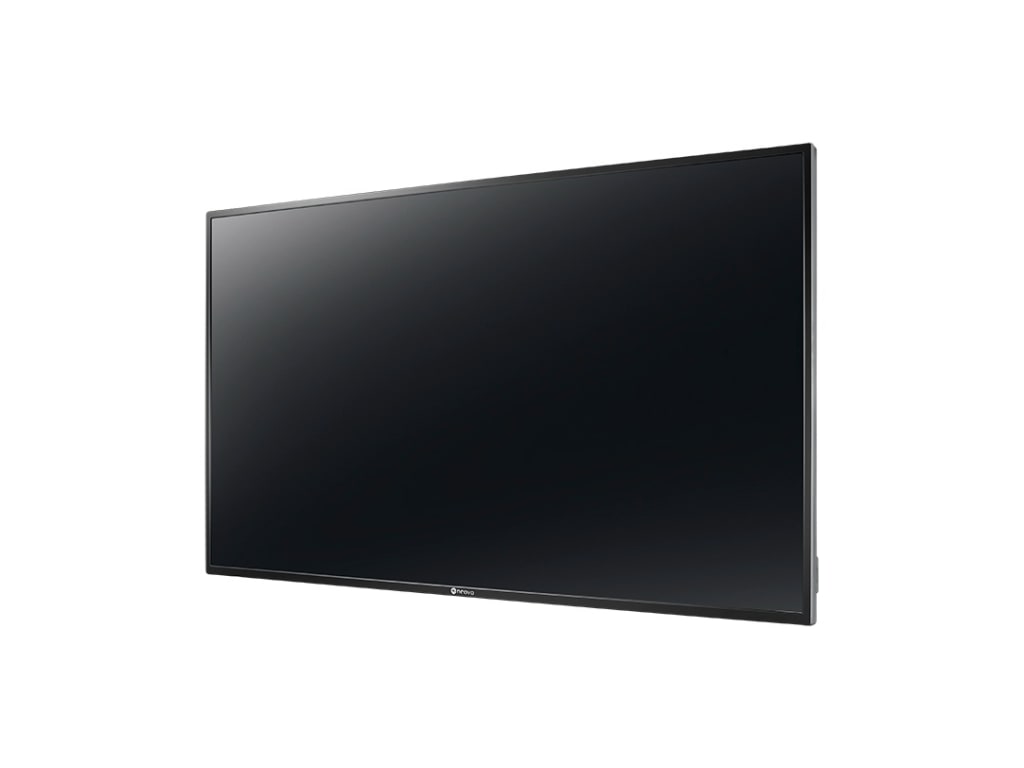

Introducing the AG Neovo PM-48, a high-quality 48" digital signage display that is perfect for commercial operations. With its 48-inch screen size and Full HD 1920x1080 resolution, this display delivers stunning visuals that will captivate your audience. The 350 nits of brightness ensure that your content is clear and vibrant, even in well-lit environments.
The AG Neovo PM-48 offers versatile connectivity options, including HDMI, DVI, VGA, IR, RS232, and RJ45, allowing you to easily connect your devices and control the display. It also features media playback capabilities, allowing you to play photos, videos, and music directly from a USB drive. The IR, RS232, and RJ45 connections make control and management of the display effortless.
With its anti-glare treatment surface, the AG Neovo PM-48 ensures that your content is always visible, even in bright environments. This display is ideal for 16/7 commercial operation, making it perfect for businesses that require a reliable and high-performance signage solution.
- 48'' screen size
- Full HD 1920 x 1080 resolution
- 350 nits of brightness
- Versatile connectivity: HDMI, DVI, VGA, IR, RS232, RJ45
- Media Playback: play photos, videos, and music from a USB drive
- IR/ RS232/ RJ45 connection for easy control and management
- Ideal for 16/7 commercial operation
- Anti-glare treatment surface
In the Box
Frequently Asked Questions
Q: What is the AG Neovo PM-48 - 48" Digital Signage Display?A: The AG Neovo PM-48 is a high-quality digital signage display designed for businesses to showcase their content and advertisements. It features a 48-inch display with stunning visuals and a range of features to enhance the viewing experience.
Q: What are the benefits of using the AG Neovo PM-48?A: The AG Neovo PM-48 offers numerous benefits for businesses in various scenarios: * Captivating visual experience: The 48-inch display with high resolution ensures that your content looks stunning and attracts attention. * Versatile content display: Whether you want to display advertisements, product information, or interactive content, the AG Neovo PM-48 can accommodate all your needs. * Easy content management: With the included software, managing and scheduling your content becomes effortless, allowing you to update and change it as needed. * Durable and reliable: The AG Neovo PM-48 is built to withstand the demands of continuous operation, ensuring long-lasting performance. * Flexible installation options: Whether you want to mount it on a wall or use it as a standalone display, the AG Neovo PM-48 offers versatile installation options to suit your requirements.
Q: What are the key features of the AG Neovo PM-48?A: The AG Neovo PM-48 comes with a range of features to enhance the user experience and ensure optimal performance: * 48-inch Full HD display with a resolution of 1920 x 1080 pixels, providing crisp and clear visuals. * High brightness and contrast ratio for excellent visibility even in well-lit environments. * Wide viewing angles to ensure that your content can be seen from various perspectives. * Built-in media player for hassle-free content playback without the need for external devices. * Multiple connectivity options, including HDMI, VGA, and USB, to easily connect your media sources. * Energy-efficient design to minimize power consumption and reduce operating costs.
Q: What are the potential applications for the AG Neovo PM-48?A: The AG Neovo PM-48 can be used in various scenarios to maximize the impact of your content: * Retail stores: Showcase product promotions, offers, and branding messages to attract customers and drive sales. * Restaurants and cafes: Display menus, daily specials, and promotions to entice customers and enhance their dining experience. * Corporate environments: Communicate important announcements, company news, and employee recognition messages to enhance internal communication. * Trade shows and exhibitions: Grab attention and engage visitors with captivating content to promote your products or services. * Hospitality industry: Provide information about hotel amenities, events, and local attractions to enhance guest experience and satisfaction. * Educational institutions: Display announcements, event schedules, and educational content to keep students, staff, and visitors informed.
Q: How user-friendly is the AG Neovo PM-48?A: The AG Neovo PM-48 is designed to be user-friendly, with intuitive controls and features that make it easy to operate: * User-friendly interface: The display comes with a user-friendly interface that allows for easy navigation and control. * Plug-and-play functionality: Simply connect your media source and start displaying content without any complicated setup. * Remote control: The included remote control enables convenient operation from a distance, allowing you to make adjustments effortlessly. * Customizable settings: Adjust various display settings, such as brightness, contrast, and color, to suit your specific requirements. * On-screen display: The on-screen display provides clear and concise instructions, making it easy to configure and customize your display settings.
