Technical Specifications

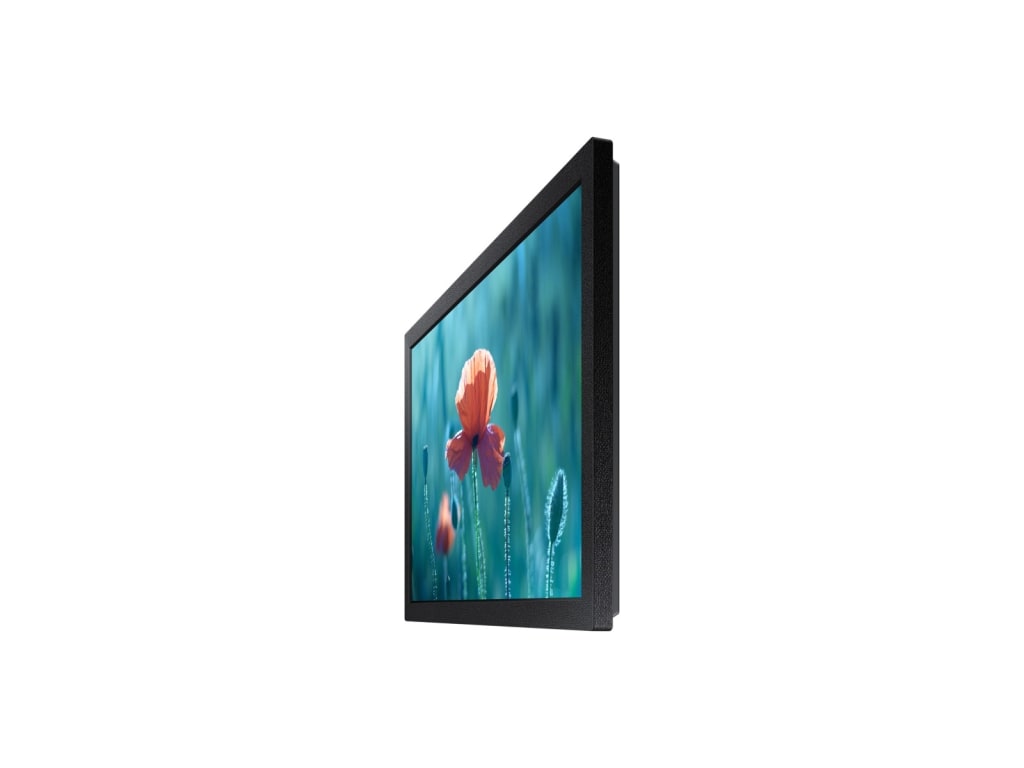

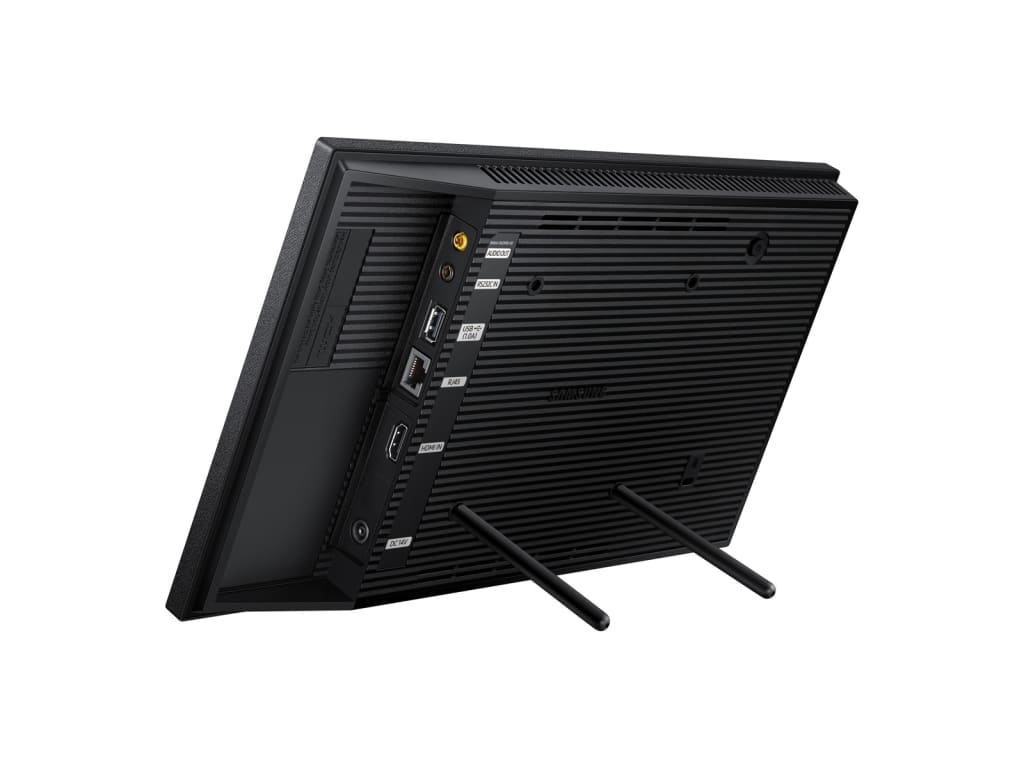

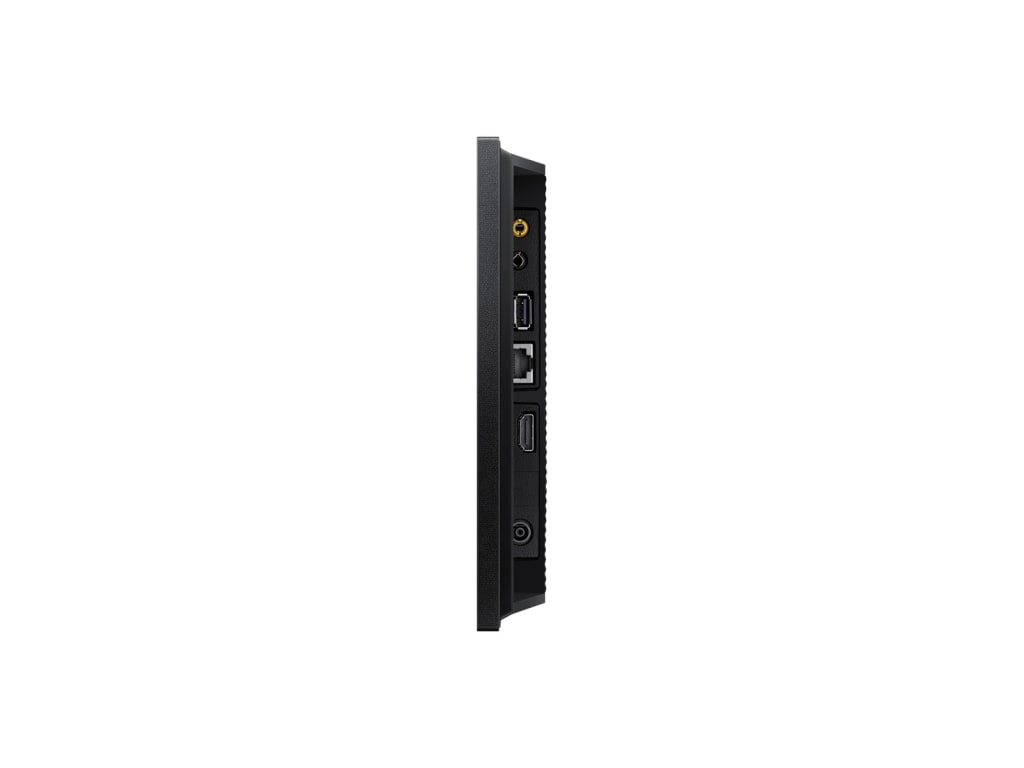

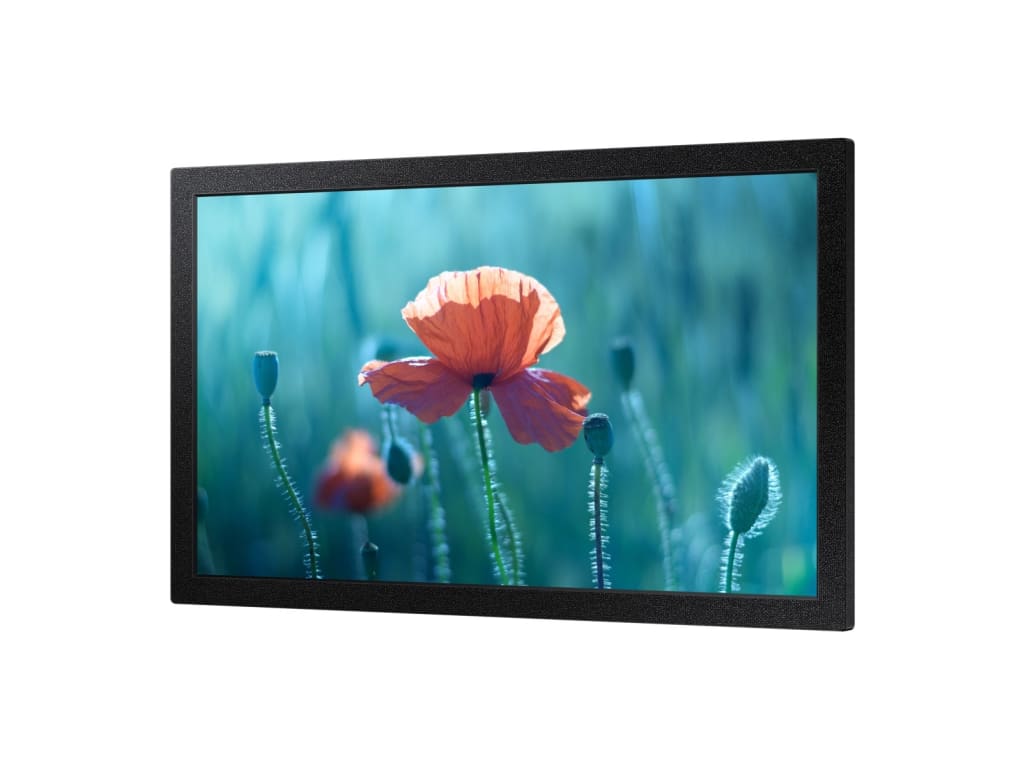

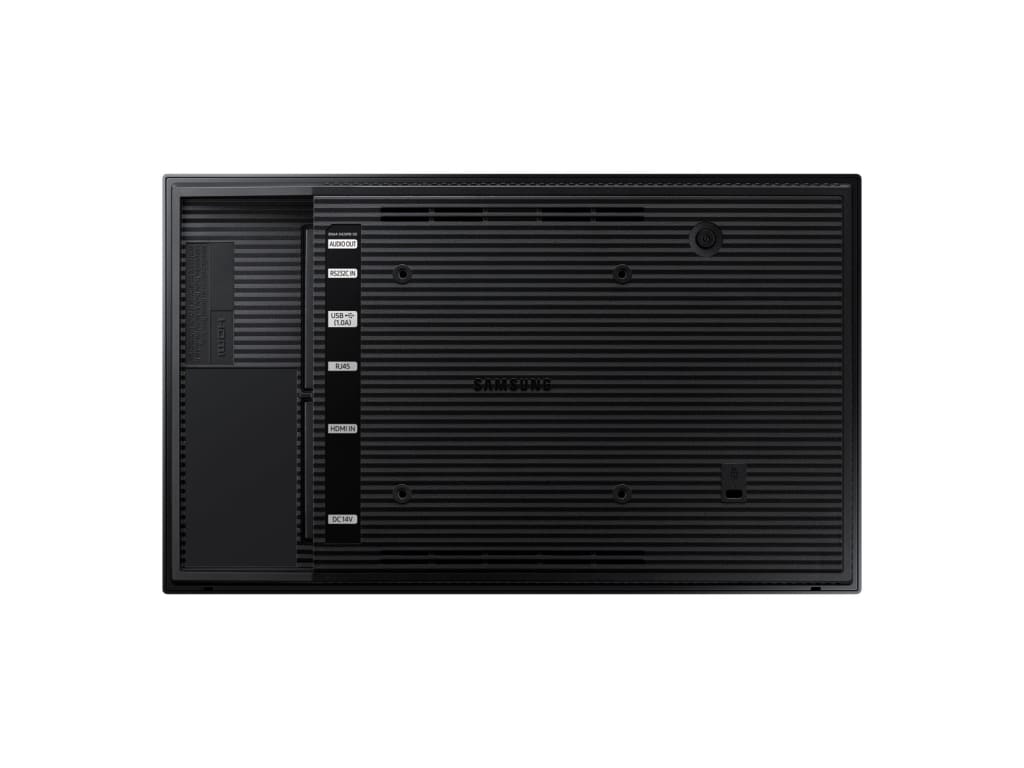

| Model: Samsung QB13R - 13" Edge-Lit LED Small Signage Display | |
| Panel Spec | |
| Display Type | TFT-LCD |
| Size | 13" |
| Touch Screen | No |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16 : 9 |
| Color Depth | 8 bit |
| Contrast Ratio | 5000 : 1 |
| Backlight | LED |
| Viewing Angle | 178° (H), 178° (V) |
| Interfaces | |
| Ethernet | 1 x RJ-45 Female, 10 / 100 / 1000 BaseT |
| USB | 1 x USB Type A |
| Power Inputs | |
| Power over Ethernet (PoE) | No |
| Power Consumption | AC 100 - 240V~ (+/- 10%), 50/60Hz |
| Environmental | |
| Operating Temperature | 0 - 40°C |
| Storage Temperature | -20 - 45°C |
| Humidity | 10 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 0.8 kg (1.76 lb) |
| Dimensions (L x W x H) | 31.00 x 18.00 x 3.50 cm (12.20 x 7.09 x 1.38 in.) |
| Note | - |
Resources
Description
Introducing the Samsung QB13R - a 13" edge-lit LED small signage display that is perfect for any business. With its slim and light design, this display is easy to install and can fit into any space. The 13" screen size provides clear and vibrant visuals, while the 300 nits brightness ensures that your content is easily visible even in bright environments. The 1920 x 1080 resolution delivers sharp and detailed images, making your content stand out.
Equipped with built-in MagicInfo S6 and SSSP 6.0, the Samsung QB13R allows for easy content management and scheduling. The built-in 5W speakers provide clear and immersive audio, enhancing the overall viewing experience. With built-in WiFi, you can easily connect to the internet and access online content. Plus, the 8GB storage allows you to store and play your content directly from the display.
- Large format display size of 13"
- Slim and light design for easy installation
- 300 nits brightness for clear visibility
- 1920 x 1080 resolution for sharp and detailed images
- Built-in MagicInfo S6 and SSSP 6.0 for easy content management
- Built-in 5W speakers for immersive audio
- Built-in WiFi for easy internet connectivity
- 8GB storage for storing and playing content directly from the display
In the Box
Frequently Asked Questions
Q: What is the Samsung QB13R - 13" Edge-Lit LED Small Signage Display?A: The Samsung QB13R is a compact and versatile signage display that offers a range of features for businesses and retail environments. It features a 13-inch edge-lit LED display with vibrant colors and sharp image quality, making it ideal for showcasing advertisements, menus, and promotional content.
Q: What are the benefits of using the Samsung QB13R?A: The Samsung QB13R offers several benefits for businesses and retail environments, including: * Space-saving design: The compact size of the QB13R makes it perfect for areas with limited space, such as small retail stores, cafes, and restaurants. * Eye-catching visuals: The edge-lit LED display technology ensures vibrant colors and sharp image quality, grabbing the attention of customers and enhancing the visibility of your content. * Easy content management: The QB13R comes with an intuitive content management system that allows you to easily create, schedule, and update your content remotely, saving you time and effort. * Versatile connectivity options: With HDMI and USB ports, the QB13R can easily connect to various media players and devices, giving you the flexibility to display different types of content.
Q: What are the key features of the Samsung QB13R?A: The Samsung QB13R offers a range of features that make it a reliable and efficient signage display, including: * 13-inch edge-lit LED display with a resolution of [insert resolution]. * Slim and lightweight design for easy installation and portability. * Integrated media player for hassle-free content playback. * Wi-Fi connectivity for seamless remote content management. * Built-in speakers for audio playback. * 24/7 operation for continuous display without interruption.
Q: What are some scenarios where the Samsung QB13R can be beneficial?A: The Samsung QB13R can be beneficial in various scenarios, including: * Retail stores: Use the QB13R to showcase product promotions, special offers, and brand messaging to attract customers and drive sales. * Restaurants and cafes: Display menus, daily specials, and mouth-watering food images to entice customers and enhance their dining experience. * Corporate offices: Utilize the QB13R to communicate important announcements, company updates, and employee recognition to enhance internal communication. * Trade shows and exhibitions: Grab attention at events by displaying eye-catching visuals, product demos, and engaging content to attract visitors to your booth. * Information kiosks: Provide helpful information, directions, and interactive maps to guide visitors in public spaces, museums, and tourist attractions.
Q: How user-friendly is the Samsung QB13R?A: The Samsung QB13R is designed to be user-friendly, even for those without technical expertise. Its intuitive content management system allows for easy content creation and scheduling. Additionally, the QB13R's slim and lightweight design makes it easy to install and move around as needed.
