Technical Specifications
| Model: Samsung OH85N-D Specifications | |
| Panel Spec | |
| Display Type | TFT-LCD |
| Size | 85" |
| Resolution | 4K UHD (3840 x 2160) |
| Brightness | 3300 nits |
| Aspect Ratio | 16 : 9 |
| Color Depth | 8 bit |
| Contrast Ratio | 5000 : 1 |
| Backlight | LED |
| Viewing Angle | 178° (H), 178° (V) |
| Operating System | |
| OS | Tizen |
| Interfaces | |
| Ethernet | 1 x RJ-45 Female, 10 / 100 / 1000 BaseT |
| USB | 2 x USB Type A |
| Power Inputs | |
| Power Consumption | AC 100 - 240V~ (+/- 10%), 50/60Hz |
| Environmental | |
| Operating Temperature | -30°C to 50°C |
| Storage Temperature | -40°C to 60°C |
| Humidity | 10 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | TBD |
| Dimensions (L x W x H) | TBD |
| Certifications | IP56, IK10, CE, FCC, RoHS |
Description

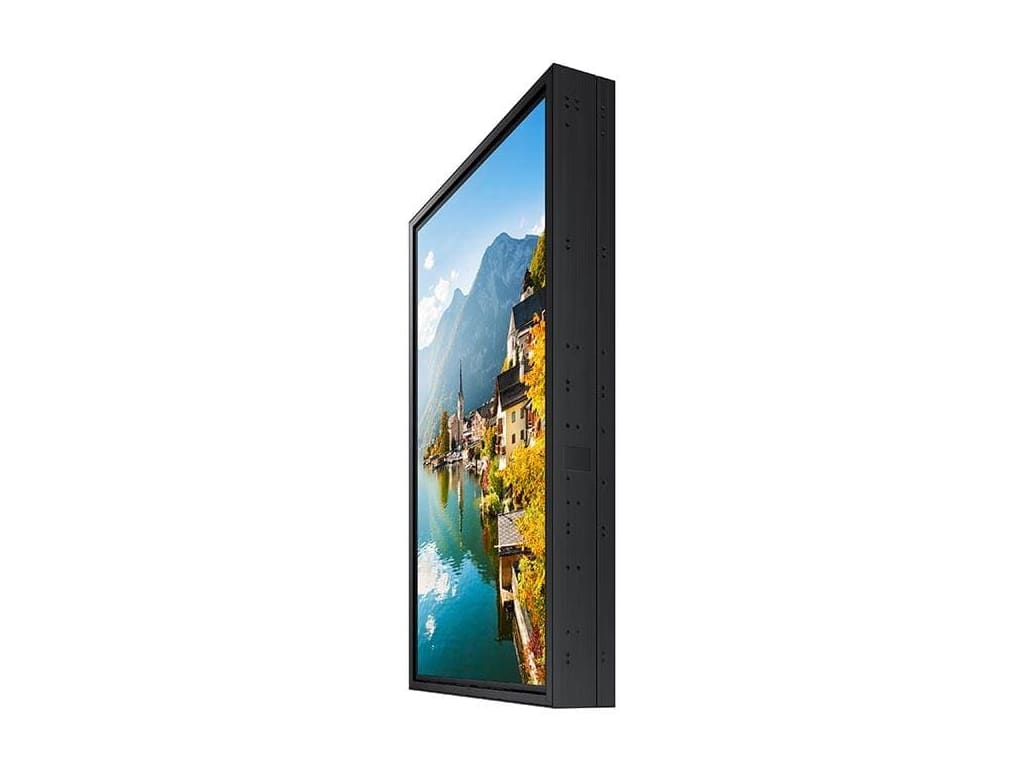

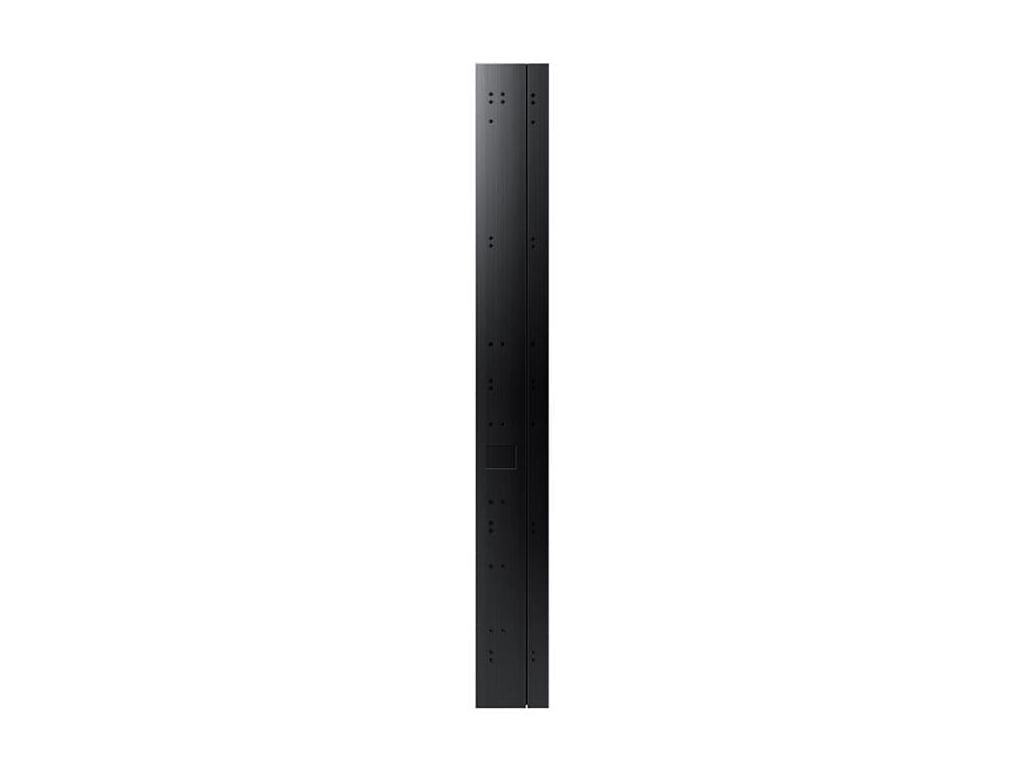

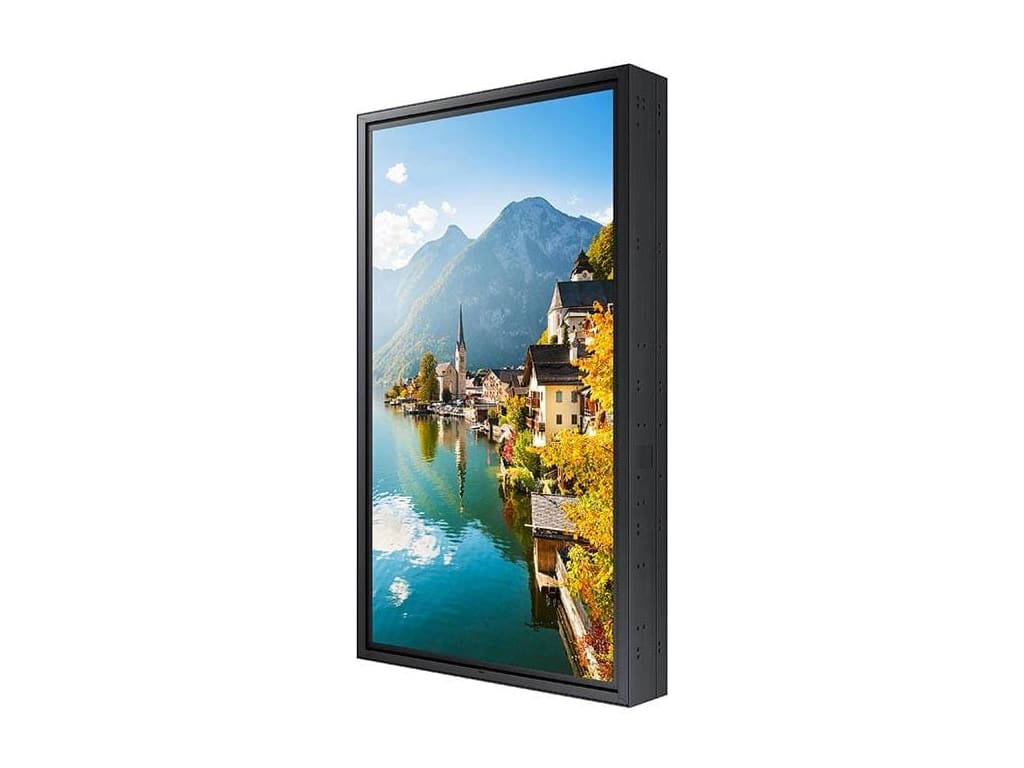

The Samsung OH85N-D is an 85" large-sized digital display optimized for outdoor usage. With its 4K UHD resolution and 3300 nits brightness, it delivers bright and creative messages that are easily visible even under direct sunlight. The display features a D-LED panel type and offers 24/7 performance, making it perfect for continuous use. It also comes with a built-in dimming sensor that automatically adjusts the brightness based on the external lighting environment, saving on operating expenses and power consumption.
The Samsung OH85N-D is equipped with the embedded MagicINFO Player S6, powered by the Tizen operating system. This combination provides advanced content management capabilities, ensuring seamless transition and playback. The display is also weatherproof with IP56 certification, making it resistant to physical impact, dust, humidity, and other outdoor elements. Additionally, the OH85N-D is designed for easy setup and maintenance, allowing users to quickly access the display's inner components for any necessary updates.
In the Box
Frequently Asked Questions
Q: What are the key features of the Samsung OH85N-D?
A: The Samsung OH85N-D is an 85" outdoor signage display with 4K UHD resolution, 3300 nits brightness, and Tizen OS. Its key features include:
- High-resolution display: The 85" screen offers stunning 4K UHD resolution, providing crisp and detailed visuals.
- High brightness: With 3300 nits brightness, the display ensures excellent visibility even in bright outdoor environments.
- Tizen OS: The signage display is powered by Tizen OS, a user-friendly operating system that allows for easy content management and customization.
Q: What are the benefits of the Samsung OH85N-D?
A: The Samsung OH85N-D offers several benefits for various scenarios:
- Outdoor advertising: The high brightness and 4K UHD resolution make the display perfect for outdoor advertising, ensuring your content stands out and captures attention.
- Wayfinding and information display: The large size and clarity of the screen make it ideal for displaying maps, directions, and other information in outdoor spaces like malls, campuses, or parks.
- Outdoor events and entertainment: The display can enhance outdoor events such as concerts, sports matches, or movie nights, providing a clear and immersive viewing experience for the audience.
- Menu boards for restaurants or cafes: The Samsung OH85N-D can be used as a vibrant and eye-catching menu board, allowing customers to easily view and select their desired items.
Q: How durable is the Samsung OH85N-D?
A: The Samsung OH85N-D is designed to withstand outdoor conditions and is built with durability in mind. It features:
- Weather-resistant design: The display is equipped with a weatherproof enclosure, protecting it from dust, moisture, and other environmental factors.
- Temperature regulation: The display includes an internal cooling system that ensures optimal performance even in extreme temperatures.
- Anti-glare coating: The screen is coated with an anti-glare layer, reducing reflections and ensuring clear visibility even in bright sunlight.
Q: Can the Samsung OH85N-D be controlled remotely?
A: Yes, the Samsung OH85N-D supports remote control and management. It can be easily integrated into a network and controlled using Tizen OS's remote management capabilities. This allows for convenient content updates, scheduling, and monitoring from a central location.
Q: What connectivity options are available with the Samsung OH85N-D?
A: The Samsung OH85N-D provides various connectivity options to ensure seamless integration with other devices and systems:
- HDMI: The display offers HDMI ports for connecting media players, laptops, or other HDMI-enabled devices.
- USB: USB ports allow for direct playback of content from USB drives, eliminating the need for additional devices.
- Network connectivity: The display can be connected to a network via Ethernet or Wi-Fi, enabling remote management and content streaming.
Q: Is the Samsung OH85N-D suitable for 24/7 operation?
A: Yes, the Samsung OH85N-D is designed for 24/7 operation. It is built with high-quality components that ensure reliable performance even with continuous use. Additionally, the display includes features like automatic brightness adjustment and power-saving modes to optimize energy efficiency.
