| Technical Specifications | Details |
|---|---|
| Model | Promethean AP7E-U86-NA-1 |
| Screen Size | 86 inches |
| Resolution | 3840 x 2160 (4K UHD) |
| Aspect Ratio | 16:9 |
| Screen Type | TFT LCD with Direct LED backlight |
| Touch Technology | Vellum™ Writing Technology (Infrared) |
| Touch Points | 15 continuous touch points |
| Brightness | 350 cd/m² |
| Contrast Ratio | 4000:1 |
| Viewing Angle | 178° |
| Refresh Rate | 60 Hz |
| Response Time | 8 ms |
| Audio | 2 × 15W front-facing speakers |
| Operating System | Android 8 (Oreo) |
| OS Compatibility | Windows, Mac OS, Linux, Chrome OS |
| Connectivity |
|
| Wireless Connectivity | Wi-Fi 802.11ac module with antennas (included) |
| Warranty | 5 years (with registration) |
| Dimensions (W × H × D) | 77.0" × 46.8" × 4.2" (1957 × 1188 × 106 mm) |
| Weight | 163 lbs (74 kg) net, 232 lbs (105 kg) gross |
| Mount Type | Fixed wall mount (VESA 600 × 400 mm) |
| Country of Origin | China |

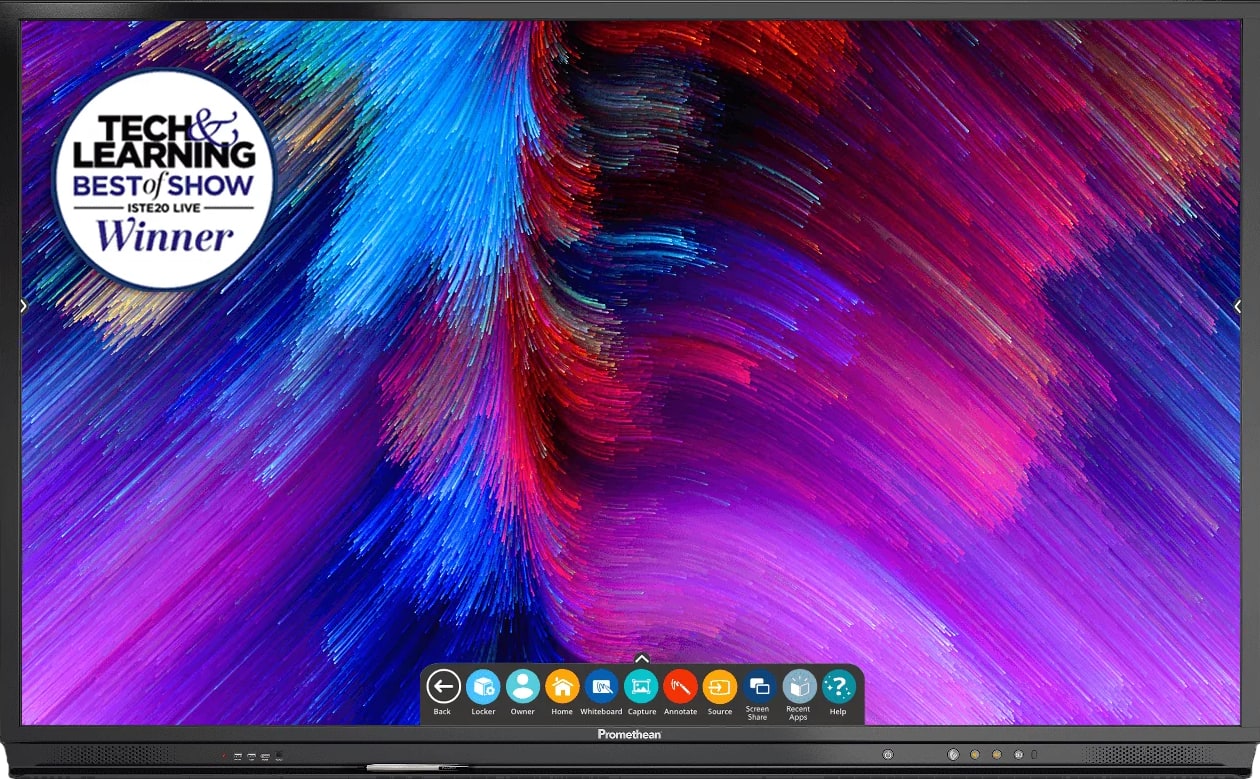

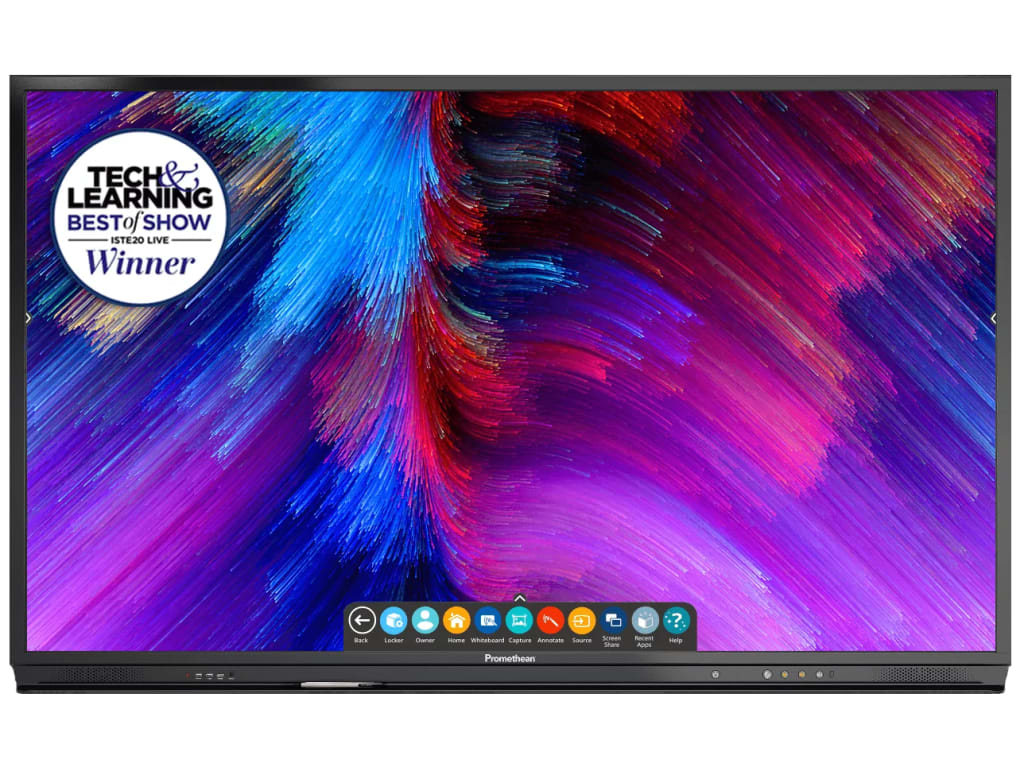

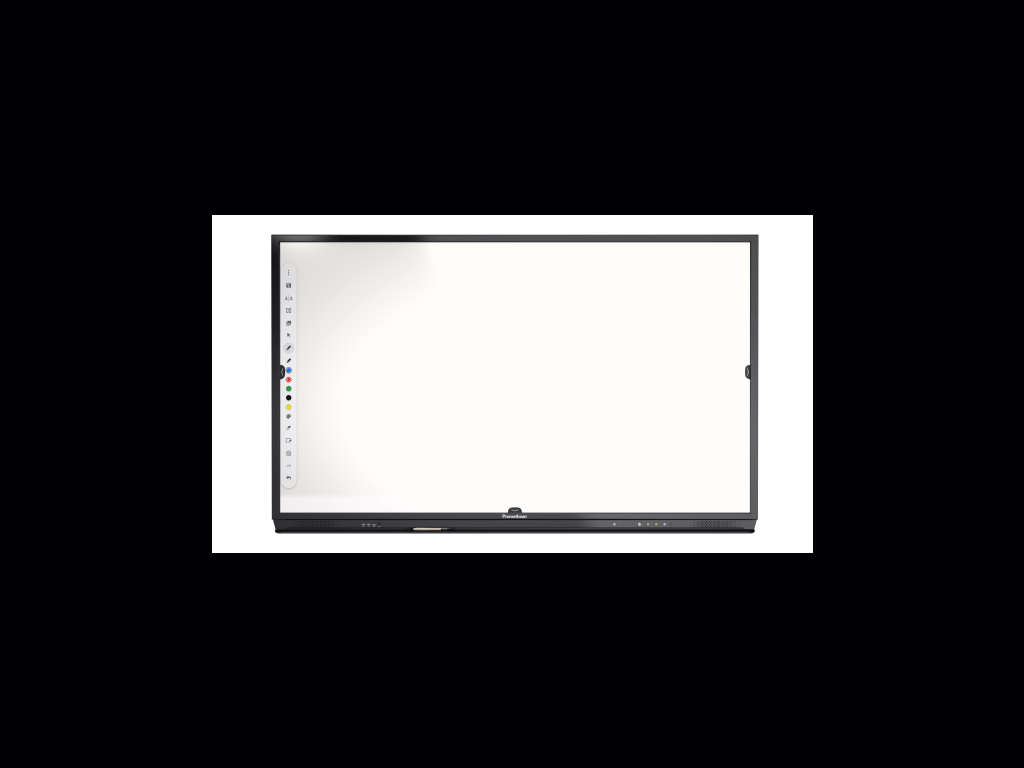

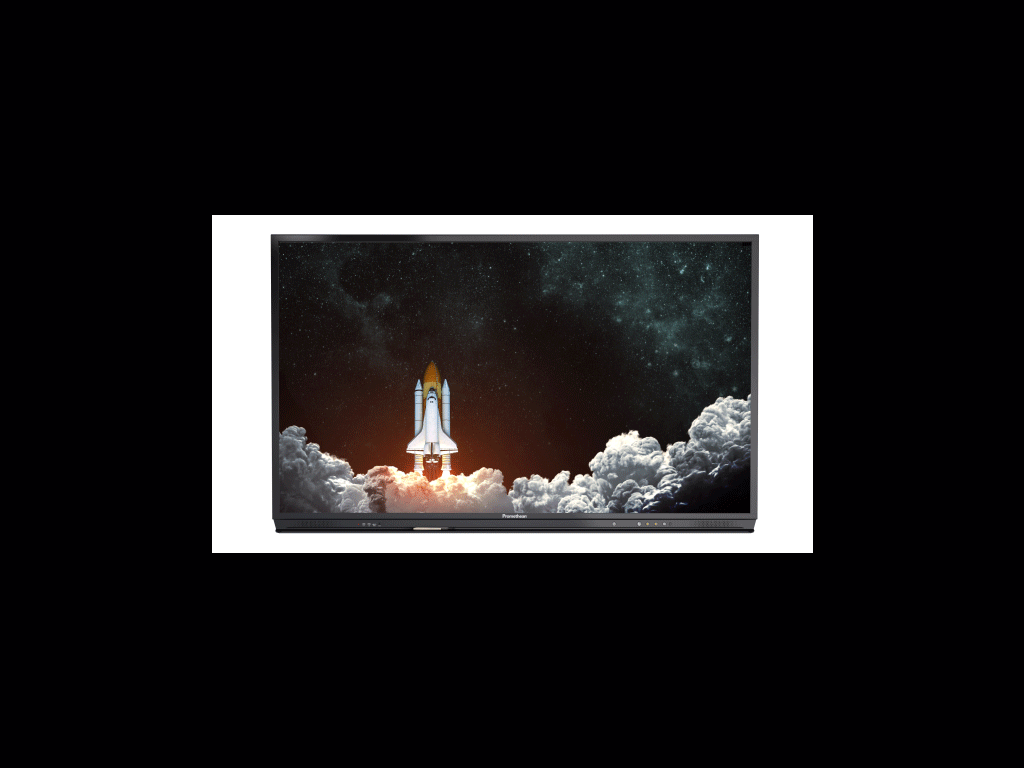

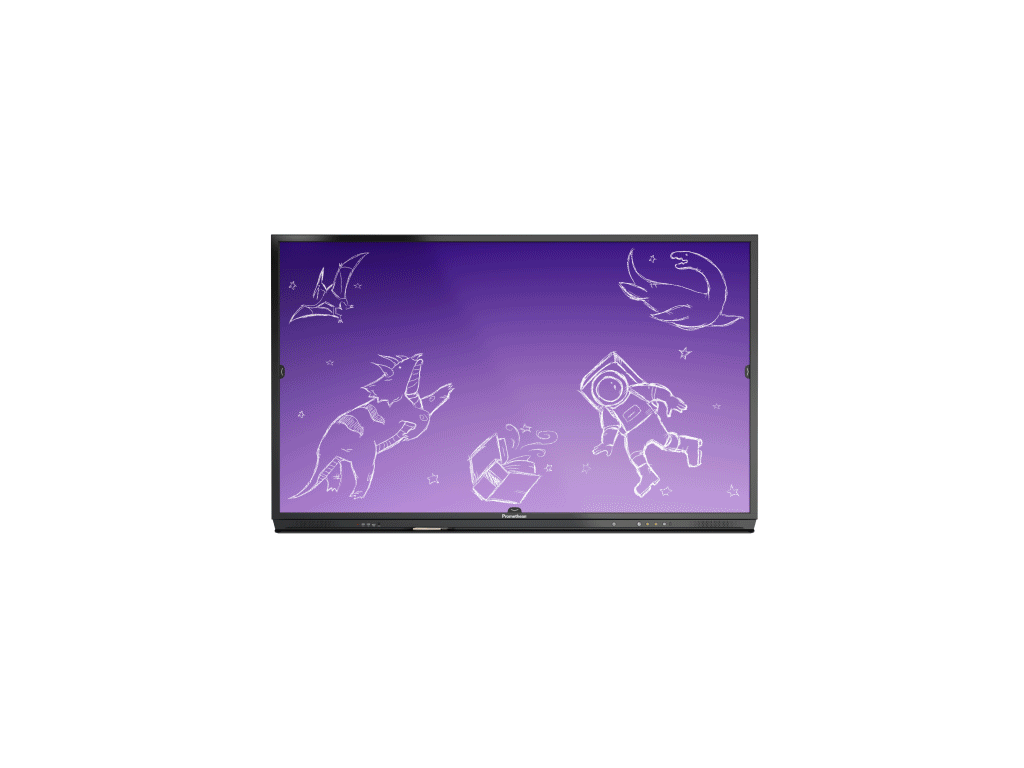

The Promethean AP7E-U86-NA-1 - ActivPanel Nickel 86" Interactive Display Bundle delivers a powerful, value-focused solution for classrooms and collaborative environments. With its expansive 86-inch 4K UHD panel, 350 cd/m² brightness, and durable anti-glare glass, it provides stunning image clarity and reliable performance in any learning space. The onboard Android 8 operating system ensures a smooth, secure, and user-friendly experience.
Equipped with Vellum™ Writing Technology, the ActivPanel Nickel offers up to 15 simultaneous touch points, allowing multiple students or participants to interact at once. Multi-device mirroring enables untethered teaching and content sharing from any device, while dual 15W front-facing speakers deliver rich, room-filling audio. For convenience, the panel features front-facing HDMI and USB ports along with a rear USB-C (PD 2.0) port, making device connections simple and flexible.
Teachers benefit from the Unified Menu for quick access to essential tools, as well as bundled educational software including ActivInspire® and ClassFlow® with no subscription required. The included Wi-Fi 802.11ac module with antennas provides seamless wireless connectivity, while built-in Promethean Panel Management with OTA updates ensures the panel remains supported and up to date.
- ActivPanel Nickel
- 3m HDMI cable
- 3m USB cable (A-B)
- 3m regional power cable
- Remote control
- 2 × AAA batteries for remote control
- ActivPanel Nickel pen
- Sealed antistatic bag
- 4 × VESA mount screws (M6)
- Mini PC bracket with screws
- Quick install guide
- Promethean Wi-Fi module (Ni/Co)
- 2 × Wi-Fi antennas
- Promethean Wi-Fi module user guide
- Wall mount
