Technical Specifications
| Newline TT-7521Q (75" Interactive Flat Panel) Specifications | |
|---|---|
| Feature | Details |
| Display | |
| Active Screen Size | 75" |
| Backlight | LED |
| Display Area (in) | 64.9 x 36.5 in |
| Display Ratio | 16:09 |
| Resolution (in pixels) | 3840 x 2160 (4K) |
| Colors | 1.07 billion (8 bit) |
| Center Brightness | 400 cd/m² |
| Contrast Ratio | 4000:1 Dynamic |
| Response Time | 8 ms (Max 10 ms) |
| Viewing Angle | 178° |
| Lifetime Hours | 50,000 hours |
| Power | |
| Working Voltage | AC100-240V Max 6.2A |
| Max Power Consumption | ≤620W |
| Eco Power Consumption | <240W |
| Standby Power Consumption | <0.5W |
| ENERGY STAR® Compliant | Yes |
| Touch | |
| Touch Solution | IR |
| Transparency | 88% ±3 |
| Touch Surface Hardness | 7H |
| Touch Points | 20 Point |
| Touch Screen Writing Tools | Stylus or Finger |
| Connectivity | |
| USB Type-C (PD 65W) | 1 |

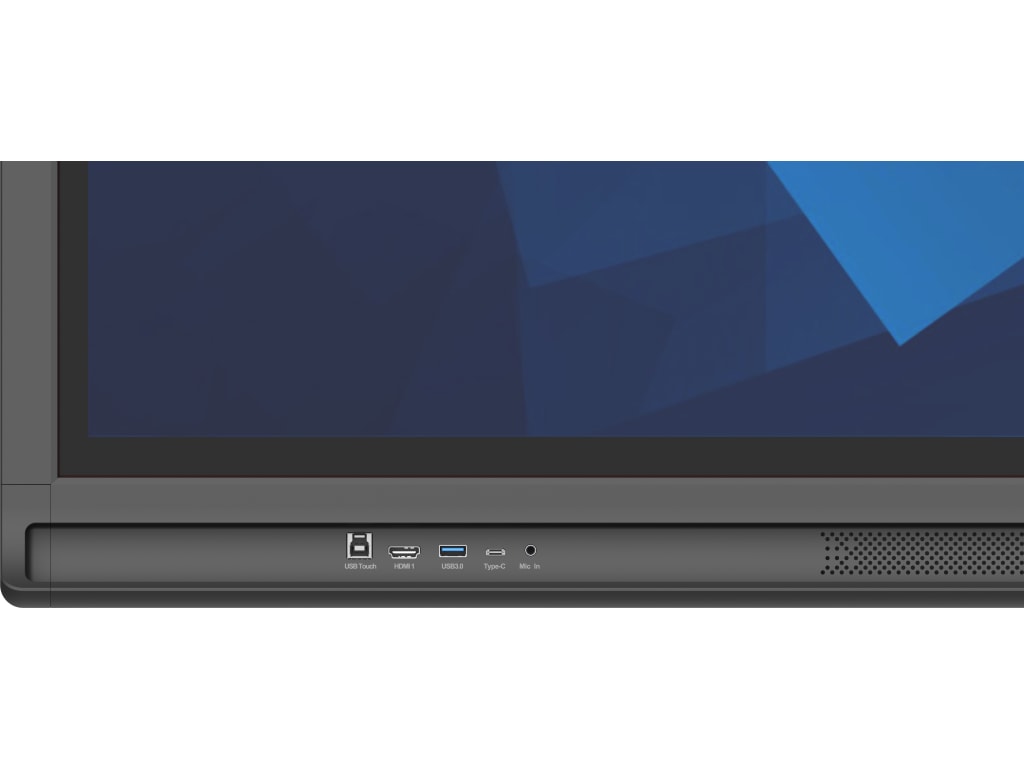

| HDMI 2.0 | 1 (front), 2 (rear) |
| USB Type-B (Touch) | 1 (front), 3 (rear) |
| USB 3.0 Type-A | 1 (front), 2 (rear) |
| USB 3.0 Type-C (no PD) | 1 (rear) |
| HDMI OUT 2.0 | 1 (rear) |
| DisplayPort 1.2 | 1 (rear) |
| RS232 | 1 (rear) |
| RJ45 (Gigabit) | 1 IN, 1 OUT (rear) |
| SPDIF | 1 (rear) |
| Audio Line out | 1 (rear) |
| OPS | 1 (rear) |
| Optional Wi-Fi Module Slot | Yes |
| Environmental | |
| Storage Temperature | 14°F - 113°F |
| Working Temperature | 32°F - 104°F |
| Storage Humidity | 0~90% RH (non-condensing) |
| Working Humidity | 20~80% RH (non-condensing) |
| Mounting & Dimensions | |
| Mounting Options | Wall-mount or Mobile Stand (optional) |

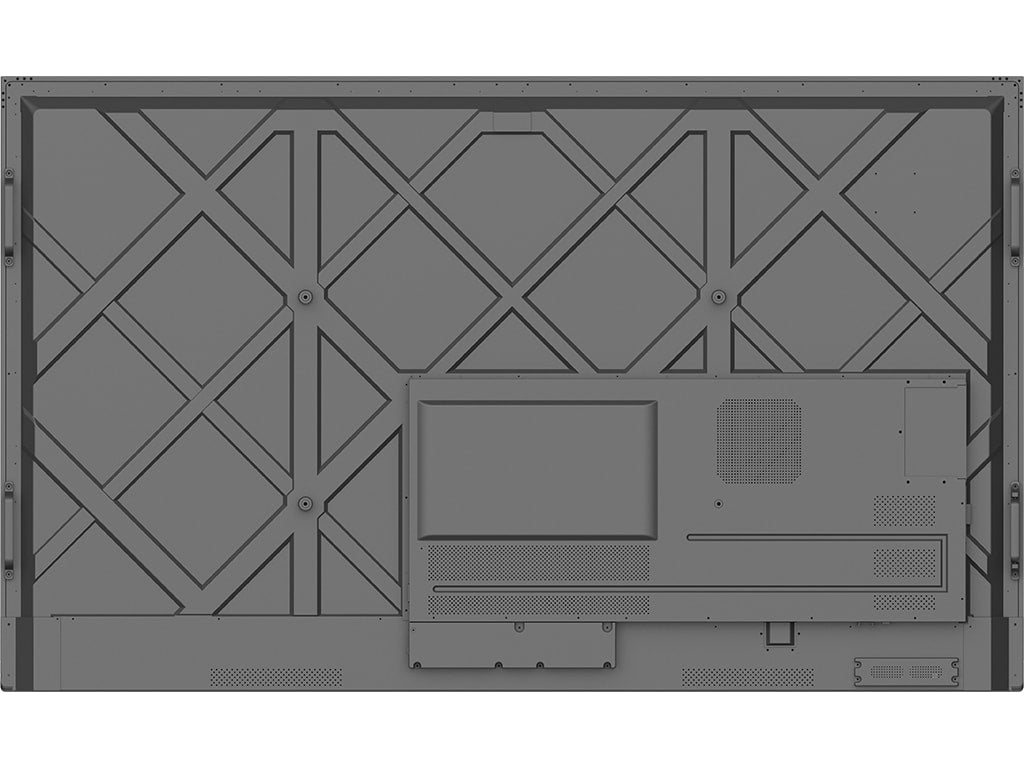

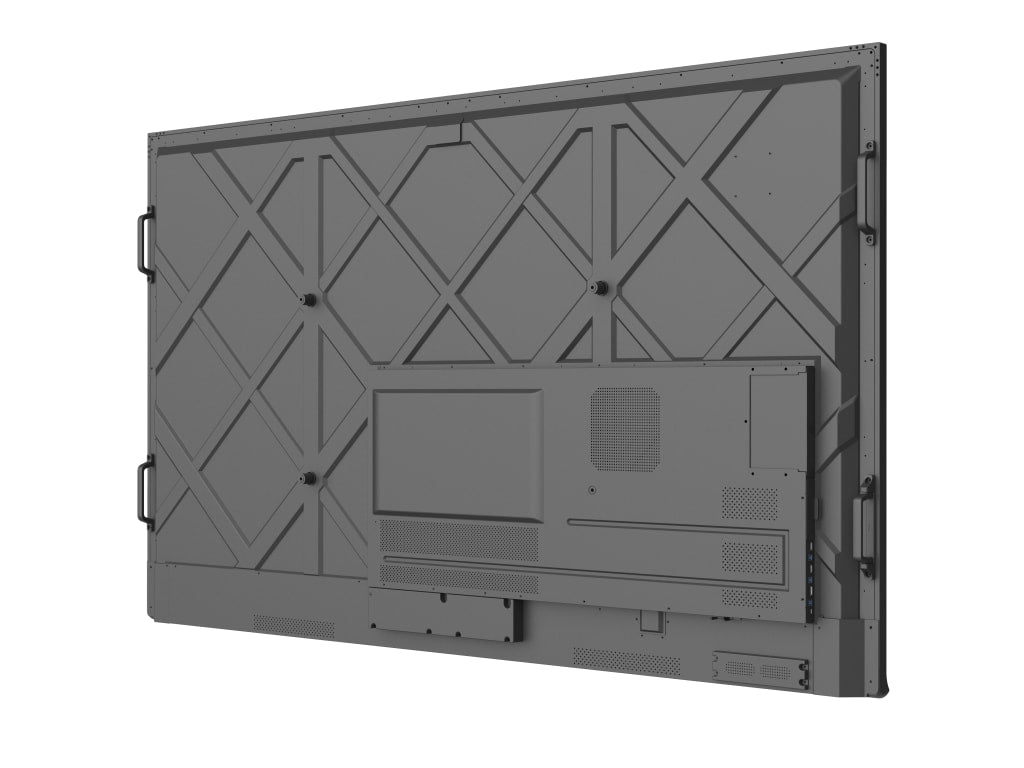

| VESA Mount Pattern | 800 x 400 mm |

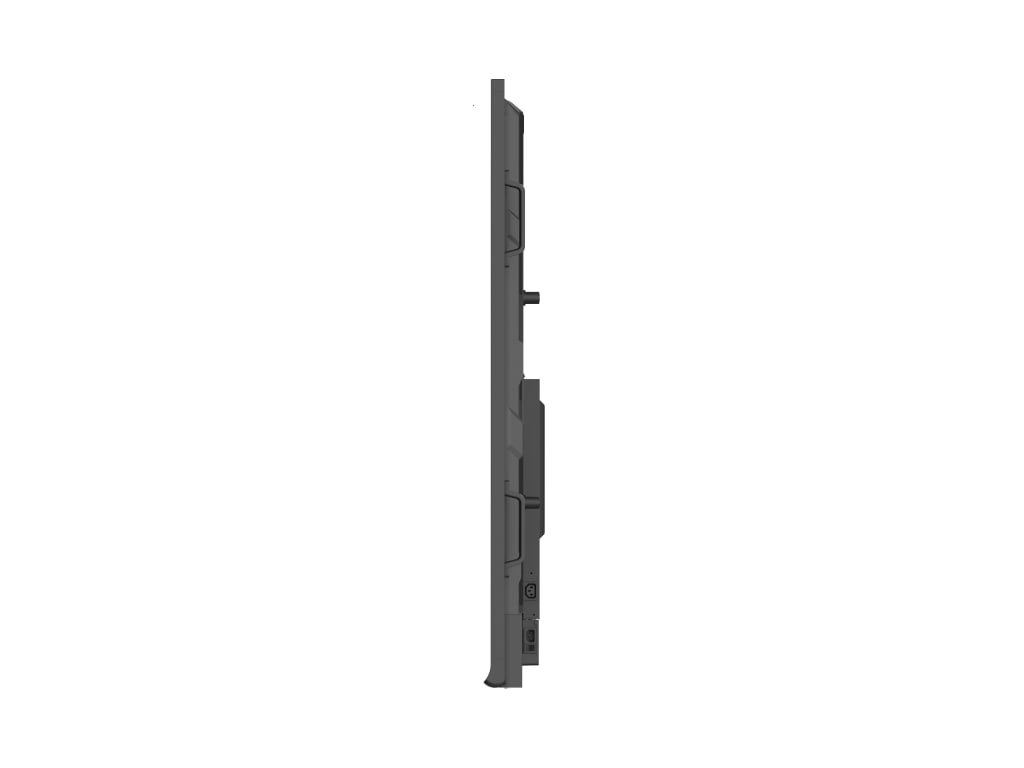

| Outline Dimensions (in) | 68.3 x 42.4 x 4.8 in |
| Packing Dimensions (in) | 73.2 x 45.6 x 8.9 in |
| Net Weight (lbs) | 114.6 lbs |
| Gross Weight (lbs) | 145.5 lbs |
| System | |
| SoC Chipset | Amlogic 311D2 |
| RAM | 4 GB |
| ROM | 32 GB |
| Android Version | Android 11.0 |
| External Memory | Expandable up to 64 GB |
| Other Features | |
| Glass Surface Technology | Anti-Glare, Anti-Fingerprint, Antimicrobial Tempered Glass |
| Camera Module (Optional) | 4K@ 30 Hz / UHD, 120° FOV Lenses, 352 x 352 / 30 fps |
| Speakers | 2 x 20W |
Description

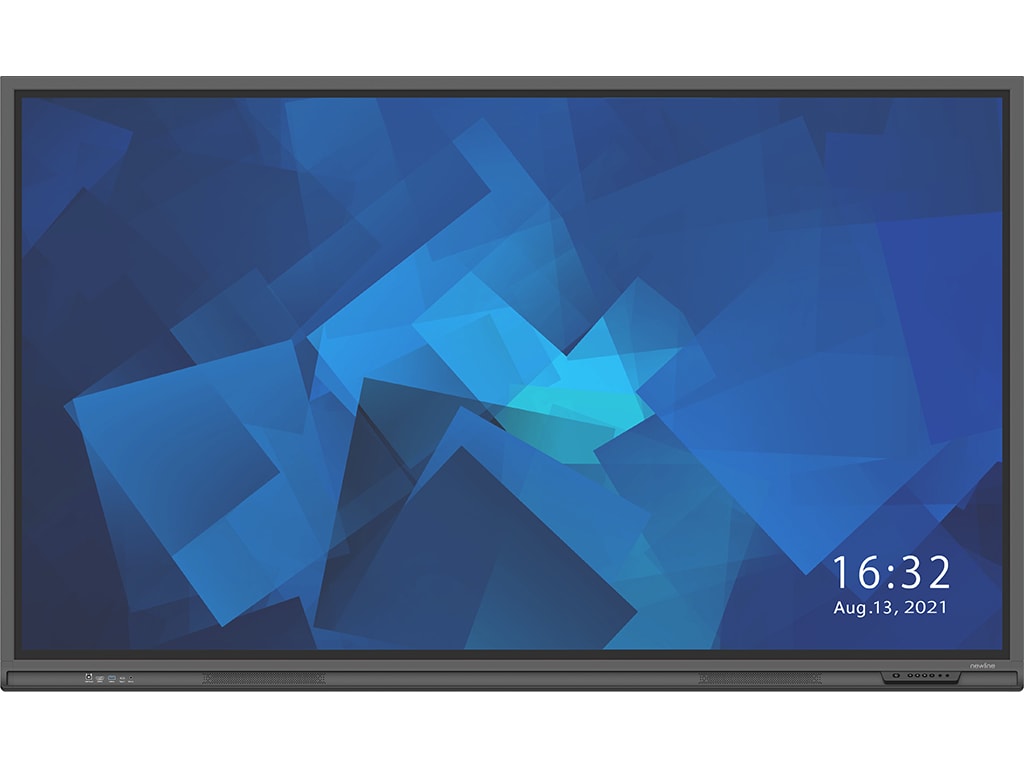

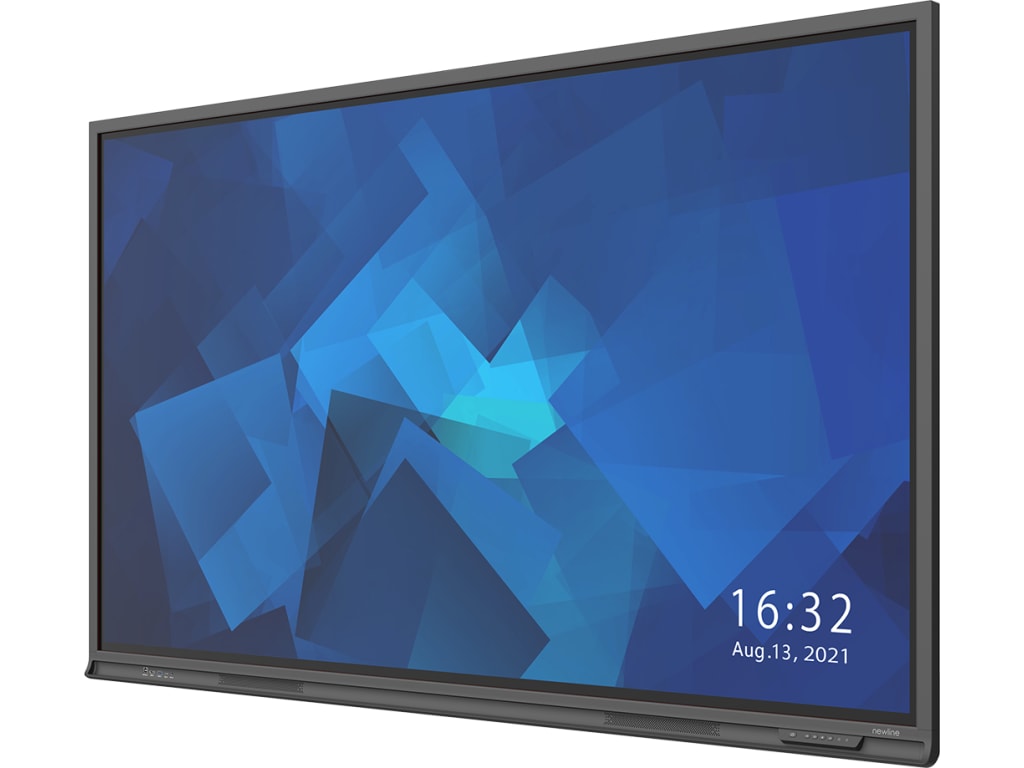

Introducing the NewLine TT-7521Q, a cutting-edge 75" 4K UHD Interactive Display that revolutionizes the way you collaborate and present. With its active screen size of 75", you'll enjoy a truly immersive viewing experience that brings your content to life. The USB Type-C with 65W Power ensures fast and convenient connectivity, while the antimicrobial surface provides a hygienic and safe user experience. Powered by the secure Android 11 OS with user profiles, you can easily customize your settings and access your favorite apps from the Newline App Store. Plus, with better connectivity thanks to Wi-Fi 6, you can seamlessly connect and share content from all your devices. The embedded 20W speakers deliver crisp and clear audio, while the camera module capability allows for video conferencing and collaboration. Compatible with all devices, the NewLine TT-7521Q is the ultimate interactive display for modern workplaces and educational institutions.
Key Features:
- Active Screen Size: 75"
- USB Type-C with 65W Power
- Antimicrobial Surface

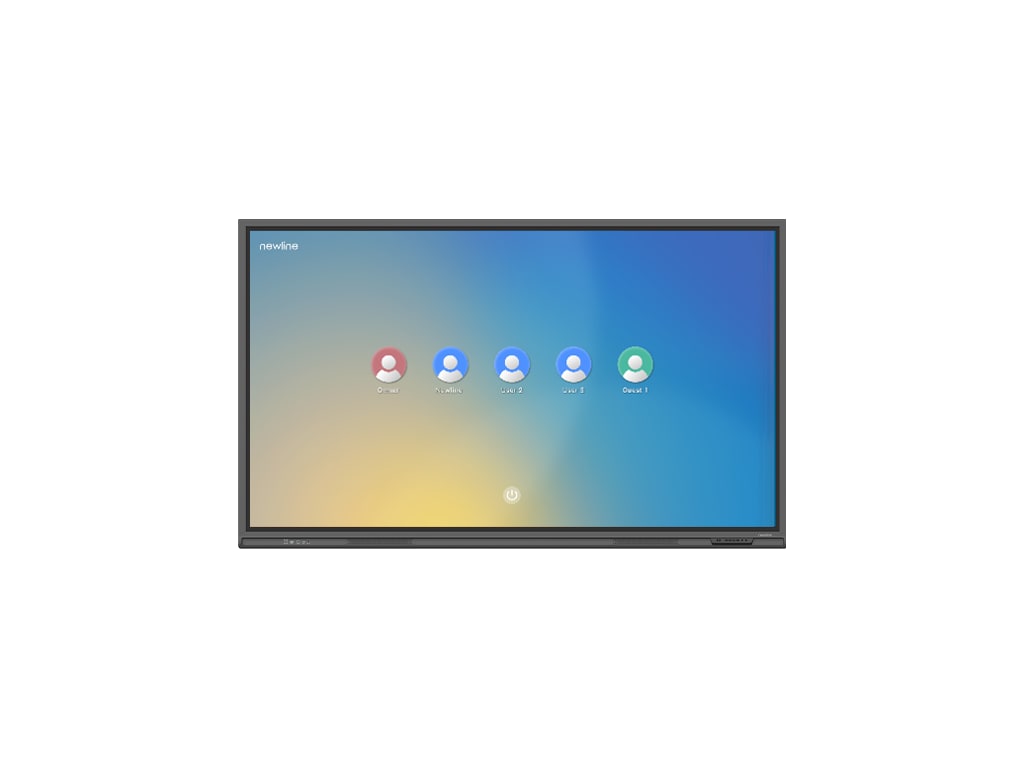

- Secure Android 11 OS with User Profiles
- Newline App Store
- Better Connectivity with Wi-Fi 6
- Embedded 20W Speakers
- Camera Module Capable
- Compatible with all Devices
In the Box
Video
Frequently Asked Questions
Q: What is the NewLine TT-7521Q - 75" 4K UHD Interactive Display?A: The NewLine TT-7521Q is a 75-inch 4K UHD interactive display that offers a wide range of features for business and educational purposes. It provides an immersive and interactive experience with its high-resolution display and touch functionality.
Q: What are the benefits of using the NewLine TT-7521Q?A: The NewLine TT-7521Q offers several benefits for users in various scenarios: * Enhanced collaboration: The interactive display allows multiple users to work together, share ideas, and collaborate on projects, fostering teamwork and creativity. * Engaging learning experience: In educational settings, the interactive display promotes active learning by enabling students to interact directly with the content, increasing engagement and knowledge retention. * Efficient presentations: With its large screen size and high resolution, the NewLine TT-7521Q ensures that presentations and visual materials are displayed clearly and vividly, enhancing communication and understanding. * Versatile applications: The display can be used for a wide range of applications, including video conferencing, digital signage, interactive training sessions, and more, making it a versatile tool for various business and educational needs.
Q: What are the key features of the NewLine TT-7521Q?A: The NewLine TT-7521Q offers a comprehensive set of features designed to enhance user experience and productivity: * 75-inch 4K UHD display: The large screen size and high resolution provide a stunning visual experience, ensuring that content is displayed with exceptional clarity and detail. * Interactive touch functionality: The display supports multi-touch gestures, allowing users to interact directly with the content, annotate, and collaborate effortlessly. * Built-in camera and microphone: The NewLine TT-7521Q comes equipped with a camera and microphone, enabling video conferencing and remote collaboration without the need for additional devices. * Extensive connectivity options: With HDMI, VGA, USB, and RJ45 ports, the display offers versatile connectivity, allowing seamless integration with various devices and systems. * Durable and reliable: The display is built to withstand daily use, ensuring long-lasting performance and reliability.

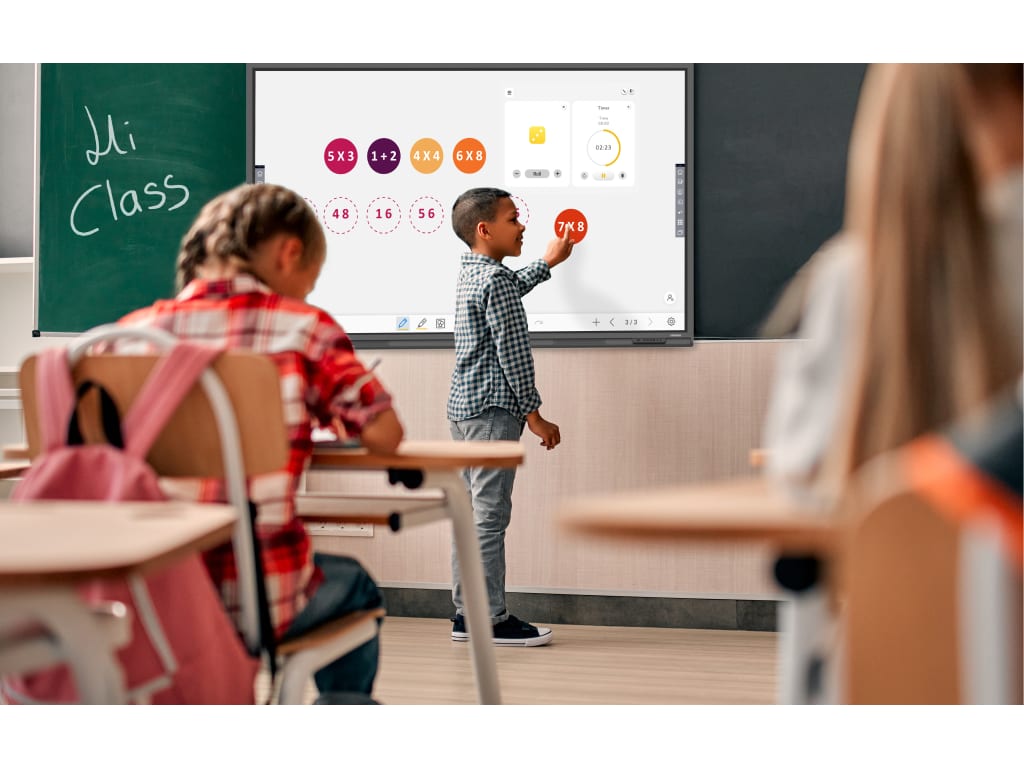

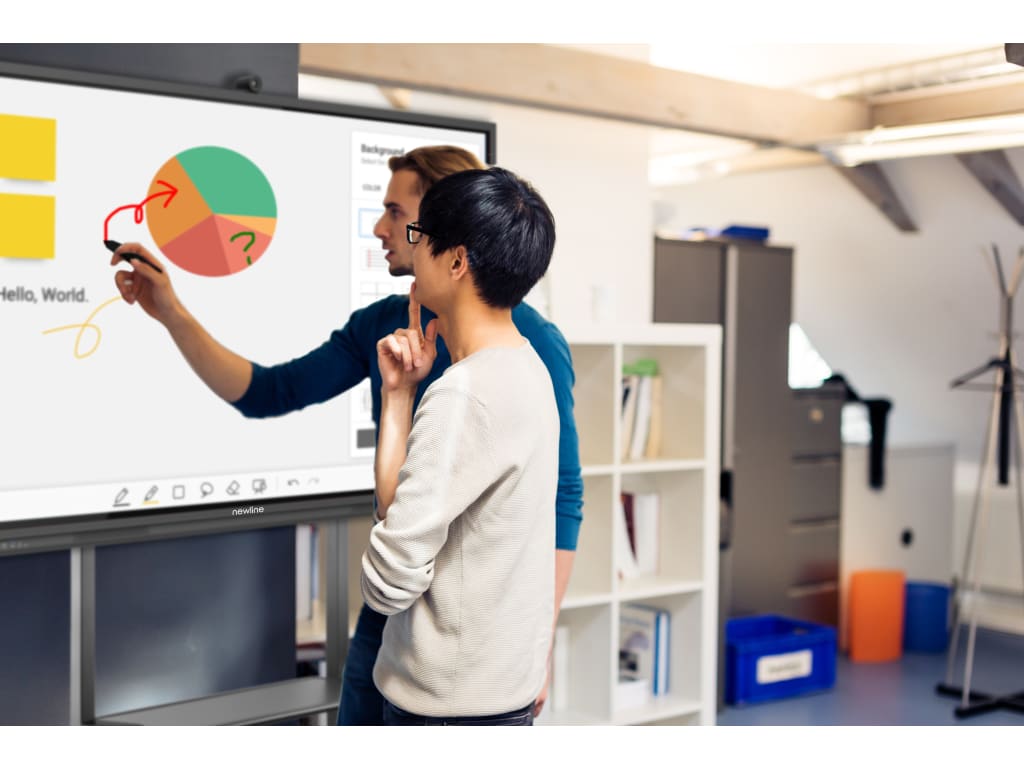

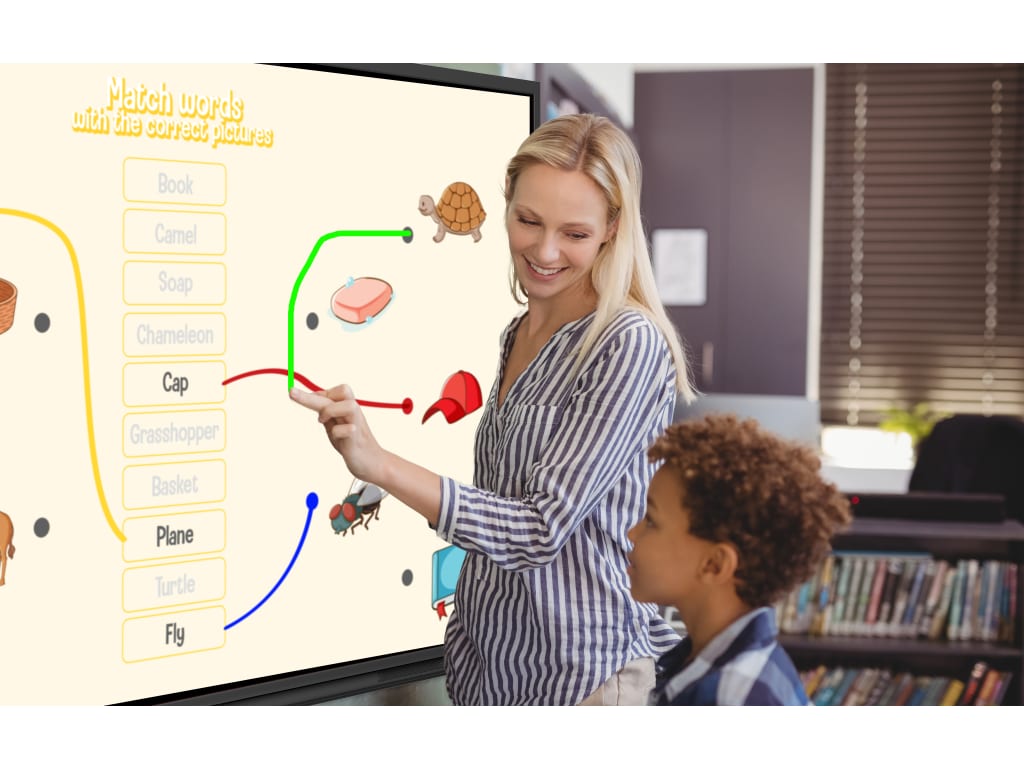

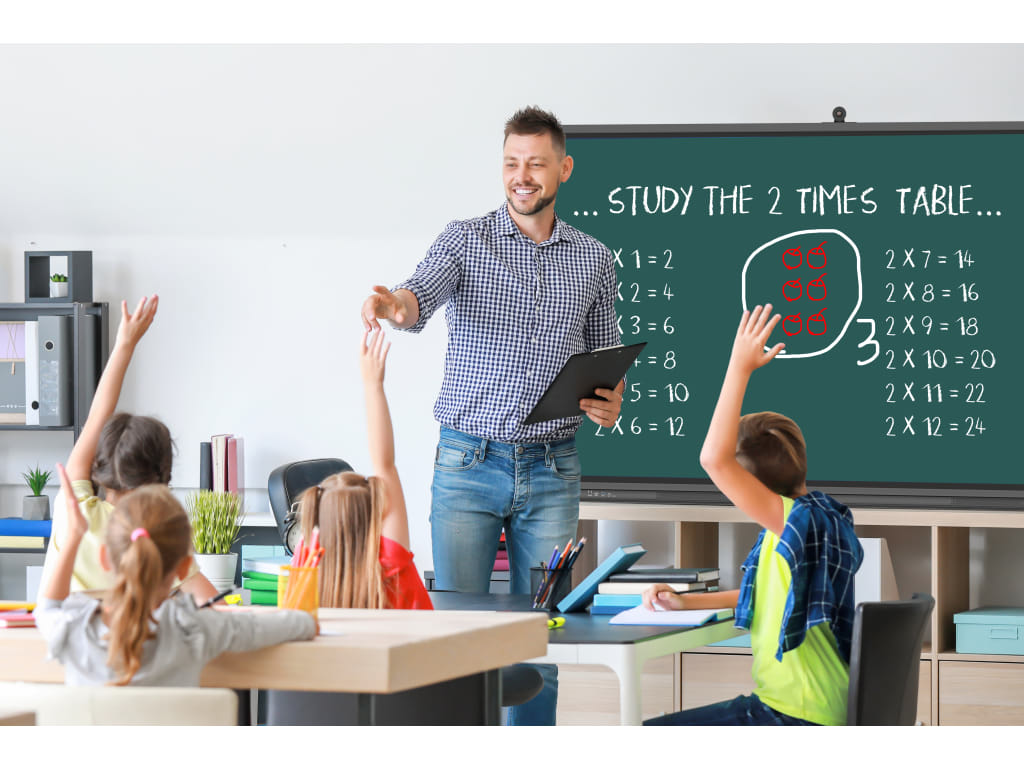

Q: How can the NewLine TT-7521Q be used in different scenarios?A: The NewLine TT-7521Q can be utilized in various scenarios to enhance productivity and engagement: * Business meetings and presentations: The display facilitates effective communication and collaboration during meetings, presentations, and brainstorming sessions, allowing participants to interact with the content and share ideas. * Classroom and educational settings: In schools and universities, the interactive display promotes active learning and student engagement, enabling teachers to create interactive lessons and interactive exercises. * Training sessions and workshops: The display can be used for interactive training sessions, workshops, and seminars, providing an immersive and interactive learning experience for participants. * Video conferencing and remote collaboration: With its built-in camera and microphone, the display enables high-quality video conferencing and remote collaboration, making it easy to connect with colleagues and clients from anywhere.
Q: Is the NewLine TT-7521Q user-friendly?A: Yes, the NewLine TT-7521Q is designed to be user-friendly. The intuitive touch functionality and user-friendly interface make it easy for users to navigate and interact with the display. The display also supports various software applications and platforms, ensuring compatibility and ease of use.
Product Expert Review
Review of the NewLine TT-7521Q - 75" 4K UHD Interactive Display
Display Quality:
The NewLine TT-7521Q offers a stunning display with its 75" 4K UHD resolution. The screen is incredibly sharp, providing clear and detailed images that enhance visual presentations. The brightness level is impressive, ensuring that content is easily visible even in well-lit environments. The color accuracy is excellent, displaying a vibrant and accurate color palette that is ideal for creative work.
The touch responsiveness of the display is highly impressive, registering touch inputs accurately and without any noticeable delay. The multi-touch capabilities allow for seamless collaboration, supporting multiple users interacting with the screen simultaneously. The anti-glare properties are effective in reducing reflections and maintaining visibility in different lighting conditions. The wide viewing angles ensure that content can be viewed clearly from various positions, making it suitable for classrooms or meeting rooms.
Performance and Features:
The NewLine TT-7521Q offers a speedy and responsive interface, providing a seamless user experience. The touchscreen is compatible with various software, making it versatile for different uses. It also comes with pre-installed software that is tailored for collaboration, adding value to its use in team settings.
The display offers a range of connectivity options, including HDMI, USB, Wi-Fi, and Bluetooth, providing flexibility in connecting different devices. Additional features such as stylus support and gesture recognition enhance the versatility and usability of the display.
User Experience:
Using the NewLine TT-7521Q in various scenarios has been a positive experience. The learning curve for new users is minimal, thanks to its intuitive user interface. The touchscreen is highly responsive, making interactions smooth and efficient. The display size and touch capabilities make it ideal for collaborative work and engaging presentations.
Applications and Use Cases:
The NewLine TT-7521Q excels in a range of scenarios, particularly in education and business settings. Its interactive features are well-suited for engaging students in classrooms or facilitating collaborative work in meetings. Industries such as design, architecture, and creative work can benefit from its precise touch and display qualities.
Durability and Reliability:
The NewLine TT-7521Q is built to last, with a solid build quality that suggests long-term durability. It comes with a warranty that provides assurance of its reliability. Over time, the touchscreen's performance remains consistent, showing little sign of wear or degradation.
Price and Value for Money:
When compared to similar products in the market, the NewLine TT-7521Q offers good value for money. Its features and performance make it a competitive option in its price range.
Pros and Cons:
Pros:
- High-quality display with excellent resolution and color accuracy.
- Responsive touch interface with multi-touch capability.
- Versatile connectivity options.
- Intuitive and user-friendly interface.
- Durable and reliable.
Cons:
- Price may be a consideration for some buyers.
- Size may be limiting for smaller spaces.
Conclusion
The NewLine TT-7521Q is an impressive interactive touchscreen display that excels in both educational and professional environments. Its high-quality display, responsive performance, and user-friendly interface make it a valuable investment for those seeking an interactive solution that enhances collaboration and engagement.
