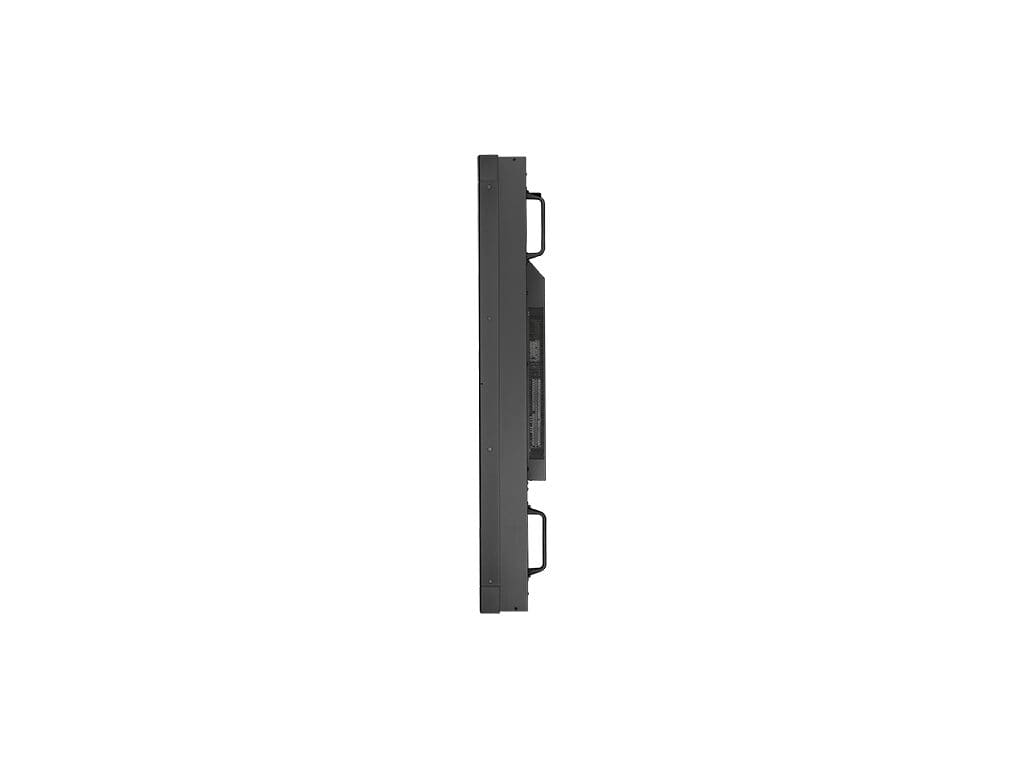

NEC X754HB - 75" LED Backlit Display, Full HD, 60 Hz, 2500 cd/m2
NEC X754HB - 75" LED Backlit Display, Full HD, 60 Hz, 2500 cd/m2
NEC X754HB - 75" LED Backlit Display, Full HD, 60 Hz, 2500 cd/m2
NEC X754HB - 75" LED Backlit Display, Full HD, 60 Hz, 2500 cd/m2
NEC X754HB - 75" LED Backlit Display, Full HD, 60 Hz, 2500 cd/m2
Roll over image to zoom in Click on image to zoom
NEC X754HB - 75" LED Backlit Display, Full HD, 60 Hz, 2500 cd/m2NEC X754HB - 75" LED Backlit Display, Full HD, 60 Hz, 2500 cd/m2NEC X754HB - 75" LED Backlit Display, Full HD, 60 Hz, 2500 cd/m2NEC X754HB - 75" LED Backlit Display, Full HD, 60 Hz, 2500 cd/m2NEC X754HB - 75" LED Backlit Display, Full HD, 60 Hz, 2500 cd/m2

NEC X754HB - 75" LED Backlit Display, Full HD, 60 Hz, 2500 cd/m2

NECSKU: NEC X754HB
Price:
$11,299.00

✉️ Request a Quote

Talk to our experts: Call at 800 992 5279

Purchase Orders Accepted

Technical Specifications

Model: NEC X754HB - 75" LED Backlit Display
Panel Spec
Display Type LED
Size 75"
Resolution Full HD (1920 x 1080)
Refresh Rate 60 Hz
Brightness 2500 cd/m2
Interfaces
Ethernet 1 x RJ-45 Female, 10 / 100 / 1000 BaseT
USB Not specified
Power Inputs
Power Consumption Not specified
Environmental
Operating Temperature Not specified
Storage Temperature Not specified
Humidity Not specified
Physical Properties
Housing Not specified
Weight Not specified
Dimensions (L x W x H) Not specified
Note Not specified

Resources

User Manual

Other Resources

Description

The LED backlit 75" NEC X754HB offers superior brightness, extended runtimes, and advanced engineering necessary for digital signage and messaging in high ambient light applications. This is the ideal display for window-facing retail signage where the sun may directly affect the fidelity of picture quality for a normal television or dimmer display. It can also be used for quick serve restaurant menuboard applications when coupled with a weatherproof type of enclosure. Direct LED backlighting combined with an integrated ambient light sensor allows for adaptable panel brightness depending on environmental conditions.

  • This means that if the display senses higher lux during brighter hours of the day, the display will show a brighter image. At night when the ambient light is much less, the display will dim down, saving overall power consumption. Special quarter lambda polarizer is integrated onto the panel of this display that allows for the display to be seen in any type of orientation even when a customer is wearing polarized sunglasses. This display is the ideal solution for installations where high brightness is a necessity.

    • The X754HB is designed with a brightness that can be seen in applications where the highest amount of ambient light is present. This includes areas where the sun will be a factor and could possibly tarnish the image on the display including indoor retail shop windows or outdoor types of applications when coupled with outdoor enclosures. While traditional televisions or even mainstream commercial displays range from 200 to 700 cd/m2 of brightness, the NEC X-HB lineup ranges from 2000 to 2700 cd/m2 which is more than enough for crystal clear visibility during all times of day. On top of this, these panels have a higher resistance to the "blackening effect" often produced by direct sunlight on a liquid crystal panel. This is due to a higher temperature transition necessary to make the liquid crystals change from nematic to isotropic.

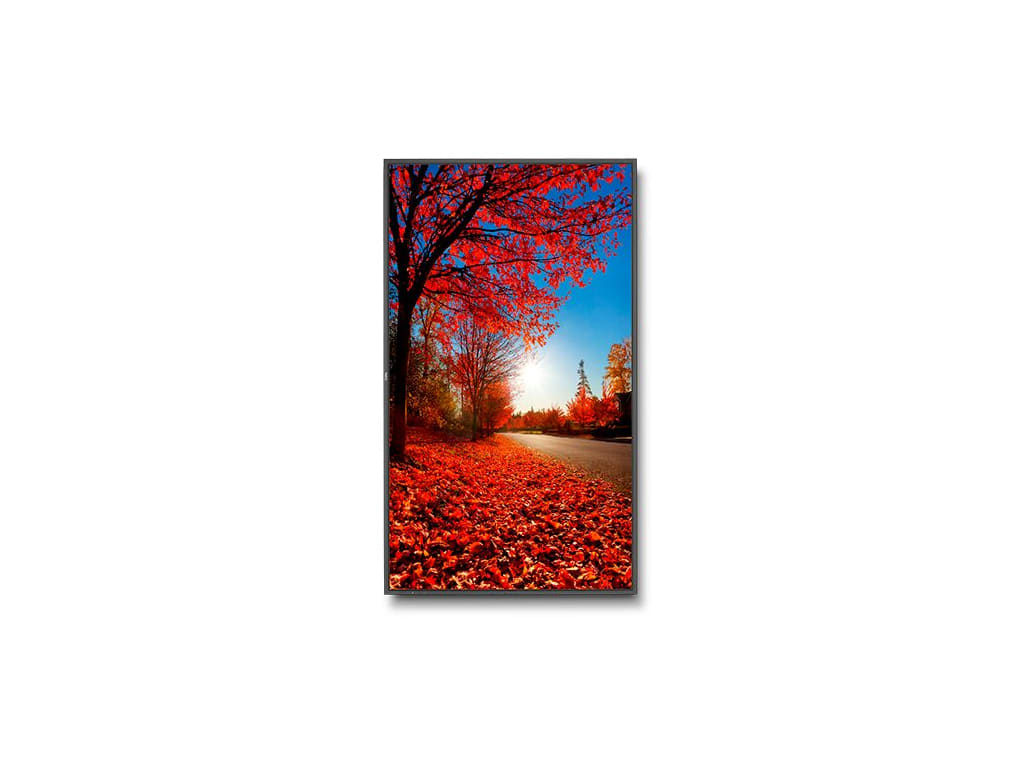

  • Conventional displays have panels that, when turned into portrait orientation, will have their light blocked by polarizing filters - such as certain sunglasses. The NEC X-HB series contains a special quarter lambda polarizer film that allows light to exit the panel in a way that the content will be clearly seen on the display regardless of orientation or polarized sunglasses.
  • Monitoring and managing the temperature of each display is crucial to secure reliability and longevity. An industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics, and fan-based technology allows for 24/7 operation and protects your display investment.
  • This new optional human (motion) sensor accessory (KT-RC2) helps to deliver creative digital signage to end users by allowing for dynamic control of brightness, audio, and source inputs while saving operating costs. Auto dimming adjusts the backlight of the LCD automatically depending on the amount of ambient light.
  • The built-in near field communication (NFC) chip allows data to be read and written via a mobile phone or tablet PC. Users can significantly reduce installation costs as displays can be easily configured and serviced using the NEC NFC Android app. This is extremely useful for larger rollouts as it can be utilized even when the display is powered off.
  • This software is an all-in-one remote support solution that runs from a central location and provides monitoring, asset management, and control functionality of the majority of NEC display devices and Windows computers. It is ideal for multidevice installations over larger infrastructures.
  • The NEC Display Wall Calibrator software ensures color uniformity and fidelity across multiple screens, creating a perfectly matched image in menuboard or tiled environments.
  • The NEC HB displays support Intel's Open Pluggable Specification (OPS) and interface expansion slots to provide the flexibility customers need.
  • This function provides accurate proof that displays are working as established when checking from an external location. Information regarding video source, time on, audio source, and more can be pulled through the display when coupled with NaViSet Administrator 2.

    • In the Box

    Frequently Asked Questions

    Q: What is the NEC X754HB - 75" LED Backlit Display?

    A: The NEC X754HB is a 75-inch LED backlit display that offers a high brightness level of 2500 cd/m2, making it ideal for outdoor and high ambient light environments. It features a Full HD resolution and a 60 Hz refresh rate, providing crisp and smooth visuals.

    Q: What are the benefits of using the NEC X754HB?

    A: The NEC X754HB offers several benefits for various scenarios, including: * Enhanced visibility: With a brightness level of 2500 cd/m2, this display ensures clear visibility even in bright outdoor environments, making it perfect for digital signage and advertising purposes. * Immersive viewing experience: The large 75-inch size and Full HD resolution of the display deliver stunning visuals, capturing viewers' attention and providing an immersive experience. * Versatile connectivity: The display offers various connectivity options, including HDMI, DVI-D, DisplayPort, and VGA, allowing easy integration with different devices and sources. * Durable and reliable: The display is designed to withstand demanding environments, featuring a robust build quality that ensures long-lasting performance.

    Q: What are the key features of the NEC X754HB?

    A: The NEC X754HB comes with several key features that enhance its usability and performance, including: * High brightness: The display's 2500 cd/m2 brightness level ensures excellent visibility in outdoor and high ambient light environments. * Full HD resolution: With a resolution of 1920 x 1080 pixels, the display delivers sharp and detailed images. * Wide viewing angles: The display offers wide viewing angles, ensuring consistent image quality, even when viewed from different positions. * Advanced connectivity: The display provides multiple connectivity options, including HDMI, DVI-D, DisplayPort, and VGA, allowing for easy connection to various devices. * Robust design: The display is built to withstand challenging conditions, featuring a rugged construction that protects it from dust, humidity, and other environmental factors.

    Q: In what scenarios can the NEC X754HB be used?

    A: The NEC X754HB is suitable for a wide range of scenarios, including: * Outdoor digital signage: Its high brightness level and durable design make it perfect for displaying advertisements and information in outdoor environments. * Retail environments: The display can be used in retail stores to showcase products, promotions, and branding messages with vibrant visuals. * Transportation hubs: Airports, train stations, and bus terminals can utilize the display to provide important information, schedules, and wayfinding assistance to travelers. * Sports venues: The display can be used in stadiums and arenas to show live game footage, replays, and advertisements to enhance the spectator experience. * Corporate settings: The display is ideal for conference rooms, meeting spaces, and lobbies, where it can be used for presentations, video conferencing, and digital signage.

    Q: How user-friendly is the NEC X754HB?

    A: The NEC X754HB is designed with user-friendliness in mind. It offers intuitive controls and a user-friendly interface, making it easy to navigate through settings and adjust display preferences. Additionally, its versatile connectivity options ensure seamless integration with various devices and sources.
