NEC X474HB - 47" LED Backlit Display, Full HD, 60Hz, 1400 cd/m2

NECSKU: NEC X474HB

Price:
Sale price$3,199.00

Talk to our experts: Call at 800 992 5279

Product Overview

Technical Specifications

Model: NEC X474HB - 47" LED Backlit Display
Panel Spec
Display Type LED
Size 47"
Resolution 1920 x 1080 (Full HD)
Refresh Rate 60Hz
Brightness 1400 cd/m2

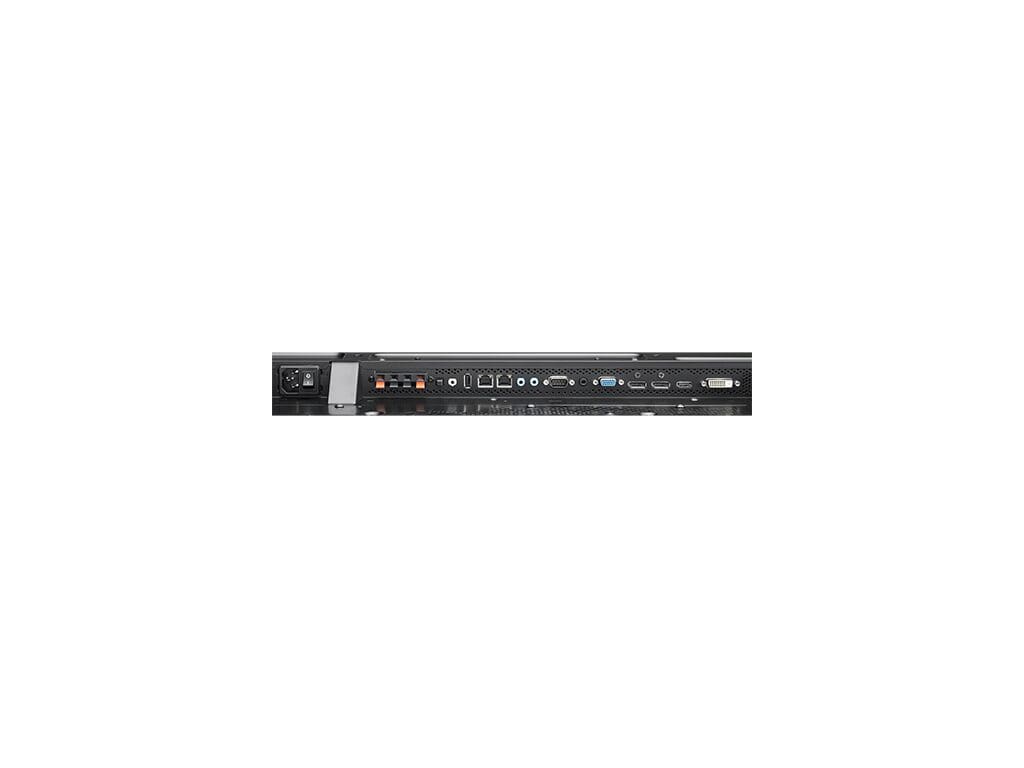

Interfaces
Ethernet 1 x RJ-45 Female, 10 / 100 / 1000 BaseT
USB 1 x USB Type A
Power Inputs
Power Consumption N/A
Environmental
Operating Temperature 0 - 40°C
Storage Temperature N/A
Humidity N/A
Physical Properties
Housing N/A
Weight N/A
Dimensions (L x W x H) N/A
Note N/A

Description

The LED backlit 47" NEC X474HB offers a high brightness panel ideal for QSR and digital signage applications, especially in high ambient light environments. This display features improved color fidelity and an improved operating temperature over its predecessor. LED backlighting provides reduced power consumption and the chassis supports first-class connectivity options.

  • High Brightness, High Temperature Panel
  • Quarter Lambda Polarizer Film
  • Advanced Heat Management
  • Human Sensor and Ambient Light Sensor
  • Intelligent Wireless Data Function
  • NaViSet Administrator 2
  • Dedicated Color Calibration Software
  • Expansion slots
  • Proof of Play

The X474HB is designed with a brightness that can be seen in applications where the highest amount of ambient light is present. This includes areas where the sun will be a factor and could possibly tarnish the image on the display including indoor retail shop windows or outdoor types of applications when coupled with outdoor enclosures. While traditional televisions or even mainstream commercial displays range from 200 to 700 cd/m2 of brightness, the NEC X-HB lineup ranges from 2000 to 2700 cd/m2 which is more than enough for crystal clear visibility during all times of day. On top of this, these panels have a higher resistance to the "blackening effect" often produced by direct sunlight on a liquid crystal panel. This is due to a higher temperature transition necessary to make the liquid crystals change from nematic to isotropic.

Conventional displays have panels that, when turned into portrait orientation, will have their light blocked by polarizing filters - such as certain sunglasses. The NEC X-HB series contains a special quarter lambda polarizer film that allows light to exit the panel in a way that the content will be clearly seen on the display regardless of orientation or polarized sunglasses.

Monitoring and managing the temperature of each display is crucial to secure reliability and longevity. An industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics, and fan-based technology allows for 24/7 operation, and protects your display investment.

This new optional human (motion) sensor accessory (KT-RC2) helps to deliver creative digital signage to end users by allowing for dynamic control of brightness, audio, and source inputs while saving operating costs. Auto dimming adjusts the backlight of the LCD automatically depending on the amount of ambient light.

The built-in near field communication (NFC) chip allows data to be read and written via a mobile phone or tablet PC. Users can significantly reduce installation costs as displays can be easily configured and serviced using the NEC NFC Android app. This is extremely useful for larger rollouts as it can be utilized even when the display is powered off.

NaViSet Administrator 2 is an all-in-one remote support solution that runs from a central location and provides monitoring, asset management, and control functionality of the majority of NEC display devices and Windows computers. It is ideal for multidevice installations over larger infrastructures.

The NEC Display Wall Calibrator software ensures color uniformity and fidelity across multiple screens, creating a perfectly matched image in menu board or tiled environments.

The NEC HB displays support Intel's Open Pluggable Specification (OPS) and interface expansion slots to provide the flexibility customers need.

The Proof of Play function provides accurate proof that displays are working as established when checking from an external location. Information regarding video source, time on, audio source, and more can be pulled through the display when coupled with NaViSet Administrator 2.

In the Box

Frequently Asked Questions

Q: What is the NEC X474HB - 47" LED Backlit Display?

A: The NEC X474HB is a high-brightness LED backlit display that offers a full HD viewing experience. With a 47-inch screen size and a brightness level of 1400 cd/m2, it delivers clear and vibrant visuals even in bright environments.

Q: What are the benefits of using the NEC X474HB - 47" LED Backlit Display?

A: The NEC X474HB provides several benefits for various scenarios, including: * Enhanced visibility: With a high brightness level of 1400 cd/m2, the display ensures excellent visibility even in well-lit environments, making it suitable for outdoor applications, storefronts, and areas with large windows. * Crisp and clear visuals: The full HD resolution and LED backlighting technology deliver sharp and vibrant visuals, ensuring an immersive viewing experience for digital signage, presentations, and multimedia content. * Versatile connectivity: The display offers a range of connectivity options, including HDMI, DisplayPort, and DVI-D, allowing for easy integration with different devices and content sources. * Durable design: Built with commercial-grade components, the NEC X474HB is designed to withstand continuous use and is equipped with advanced cooling technology to prevent overheating.

Q: What are the key features of the NEC X474HB - 47" LED Backlit Display?

A: The NEC X474HB comes with several key features that make it a reliable choice for various applications: * High brightness level of 1400 cd/m2 for excellent visibility in bright environments. * Full HD resolution (1920 x 1080) for sharp and detailed visuals. * LED backlighting technology for energy efficiency and enhanced color reproduction. * Multiple connectivity options, including HDMI, DisplayPort, and DVI-D. * Advanced cooling system to prevent overheating and ensure reliable performance.

Q: What are some common applications for the NEC X474HB - 47" LED Backlit Display?

A: The NEC X474HB can be utilized in a wide range of scenarios, including: * Outdoor digital signage: The high brightness level allows for clear visibility in outdoor environments, making it ideal for displaying advertisements, promotions, and information. * Retail and storefront displays: The display's bright and vibrant visuals can attract attention and engage customers in retail settings. * Wayfinding and information displays: The clear and detailed visuals make the display suitable for providing directions, maps, and important information in public spaces. * Presentations and conferences: The full HD resolution and versatile connectivity options make it a great choice for delivering impactful presentations and conducting meetings. * Hospitality and entertainment: The display can be used in hotels, restaurants, and entertainment venues to showcase menus, promotions, and entertainment content.

Q: Is the NEC X474HB - 47" LED Backlit Display easy to install and use?

A: Yes, the NEC X474HB is designed for easy installation and user-friendly operation. It comes with a comprehensive user manual and offers various mounting options for flexibility. The intuitive on-screen menu allows for convenient adjustment of settings and customization of display preferences.
