Technical Specifications
| Model: NEC E868 - 86" UHD Commercial Display, 4K, IPS | |
| Panel Spec | |
| Display Type | TFT-LCD |
| Size | 86" |
| Resolution | 3840 x 2160 (4K UHD) |
| Aspect Ratio | 16 : 9 |
| Color Depth | 10 bit |
| Contrast Ratio | 1300 : 1 |
| Backlight | LED |
| Viewing Angle | 178° (H), 178° (V) |

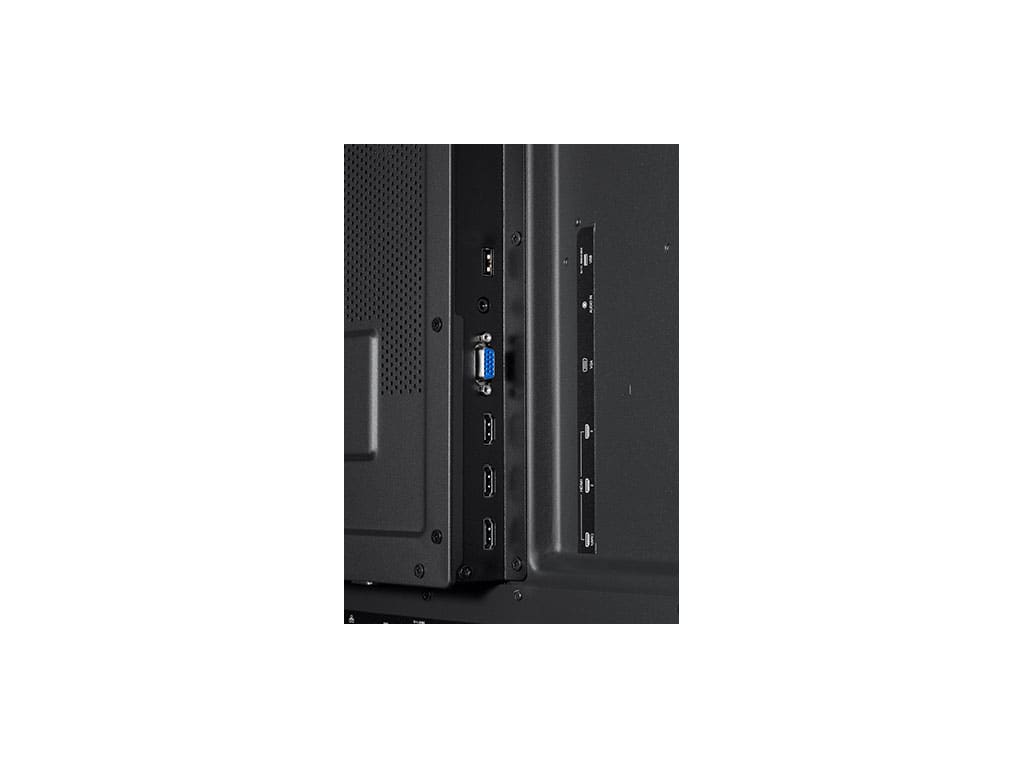

| Interfaces | |
| HDMI | 2 x HDMI (2.0) |
| DisplayPort | 1 x DisplayPort (1.2) |
| VGA | 1 x VGA |
| Audio | 1 x 3.5mm Audio In, 1 x 3.5mm Audio Out |
| USB | 1 x USB (Media Playback) |
| Power | |
| Power Consumption | 240W (Typical) |
| Power Supply | 100-240V AC |
| Environmental | |
| Operating Temperature | 0 - 40°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 20 - 80% RH, Non-Condensing |
| Physical Properties | |
| Dimensions (L x W x H) | 1946 x 1120 x 96 mm (76.6 x 44.1 x 3.8 in.) |
| Weight | 68.8 kg (151.8 lb) |
Description

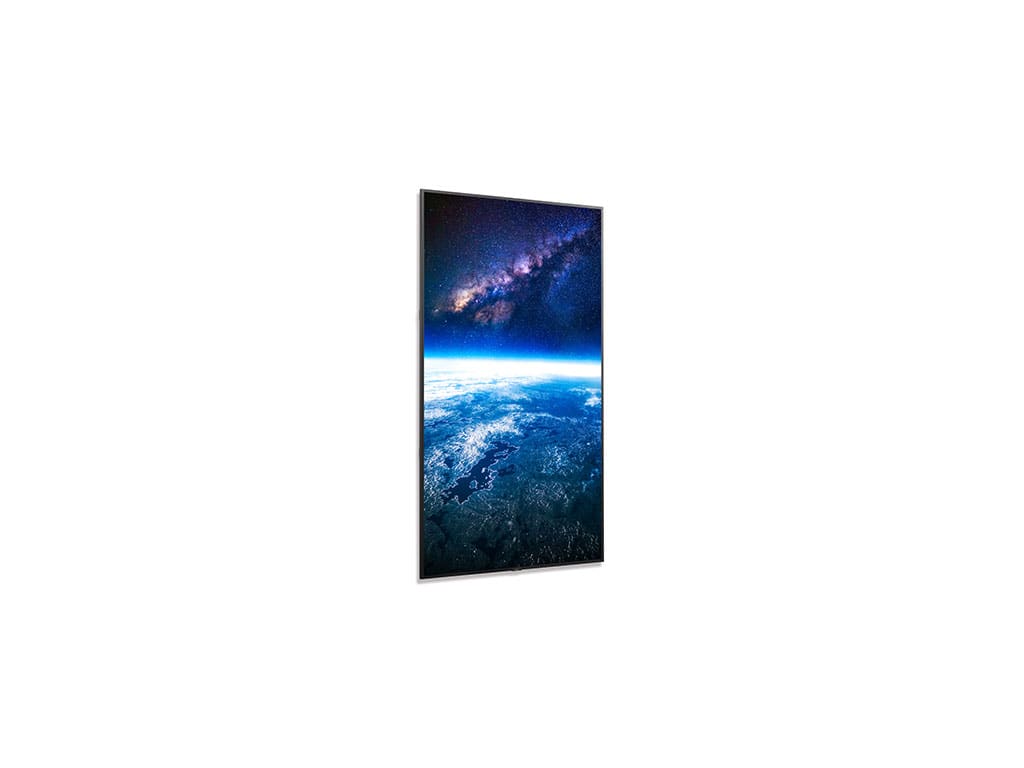

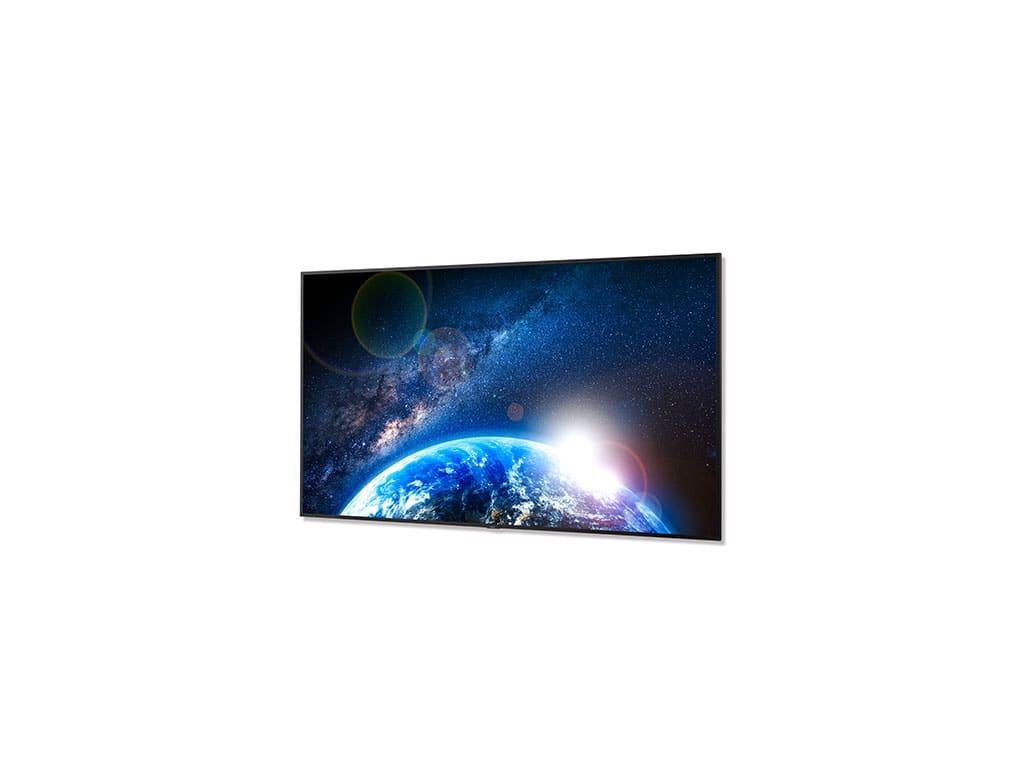

The NEC E868 is an 86" Ultra High Definition Commercial Display that offers stunning UHD resolution for enhanced meeting and conferencing performance. With its 4K UHD native resolution, this display provides high-end visual acuity, ensuring clear and detailed visuals. It can be installed in both landscape and portrait orientations, offering flexibility to suit your specific needs. The 24-hour on/off timer allows you to maintain power schedules, ensuring the display is always ready for use.
The NEC E868 features an industrial-strength, premium-grade panel that ensures reliable performance and a long lifetime, resulting in a low total cost of ownership. The display is equipped with an integrated media player, allowing for audio, video, or image playback via USB. It also includes an integrated ambient light sensor, which automatically adjusts the display's luminance based on external brightness conditions, ensuring optimal visibility without distracting reflections.
The NEC E868 comes with built-in, integrated 10W speakers that enhance the viewing experience with superior sound quality. It also features a USB Type-C port for external power supply, providing convenience and flexibility. With its video signal wake-up function, the display supports plug-and-play functionality, making it easy to use. The display is backed by a full 3-year commercial warranty, offering peace of mind and protection for your investment.
In the Box
Frequently Asked Questions
Q: What is the NEC E868 - 86" UHD Commercial Display, 4K, IPS?A: The NEC E868 is a high-quality commercial display that offers a stunning 86-inch 4K UHD display with IPS technology. It is designed for businesses and organizations that require a large and impressive display for their digital signage or presentation needs.
Q: What are the benefits of using the NEC E868?A: The NEC E868 offers numerous benefits for businesses and organizations, including: * Enhanced visual experience: The 86-inch 4K UHD display provides a crisp and vibrant image quality, ensuring that your content looks stunning and catches the attention of your audience. * Wide viewing angles: With IPS technology, the display offers wide viewing angles, allowing your content to be easily seen from different perspectives without any loss in image quality. * Versatile connectivity options: The NEC E868 comes with various connectivity options such as HDMI, DisplayPort, and USB, making it easy to connect different devices and sources to the display. * Reliable performance: NEC is known for its high-quality and reliable products, and the E868 is no exception. It is built to last and can withstand continuous use in commercial environments.
Q: What are the key features of the NEC E868?A: The NEC E868 boasts several key features that make it a top choice for commercial displays, including: * 86-inch 4K UHD display with a resolution of 3840 x 2160 pixels, providing exceptional image clarity and detail. * IPS technology for wide viewing angles and accurate color reproduction. * High brightness and contrast ratio, ensuring that your content stands out even in well-lit environments. * Multiple connectivity options, including HDMI, DisplayPort, and USB, allowing you to easily connect various devices and sources. * Built-in speakers for clear audio playback without the need for external speakers. * Energy-efficient design, helping you save on energy costs while reducing your environmental footprint.
Q: What are some scenarios where the NEC E868 can be beneficial?A: The NEC E868 is a versatile commercial display that can be beneficial in various scenarios, including: * Retail environments: Use the large 86-inch display to showcase your products, promotions, or brand messages, attracting customers and driving sales. * Corporate presentations: Deliver impactful presentations and engage your audience with the stunning visuals and wide viewing angles of the NEC E868. * Education and training: Enhance learning experiences by displaying educational content, training materials, or interactive presentations on the large and vibrant display. * Hospitality and entertainment: Create immersive experiences for guests by using the NEC E868 for digital signage, wayfinding, or displaying entertainment content. * Trade shows and exhibitions: Grab attention and make a lasting impression with the impressive size and image quality of the NEC E868 at trade shows and exhibitions.
Q: Is the NEC E868 easy to install and manage?A: Yes, the NEC E868 is designed for easy installation and management. It comes with a comprehensive user manual and includes mounting options for different setups. Additionally, NEC provides software tools and remote management capabilities to simplify the management and control of multiple displays if needed.
