Technical Specifications
| Model: LG 98UM3E-B - 98-inch UHD LED Back-lit Digital Display with webOS Smart Signage Platform | |
| Panel Spec | |
| Display Type | LED |
| Size | 98" |
| Touch Screen | No |
| Resolution | 3840 x 2160 (UHD) |
| Aspect Ratio | 16 : 9 |
| Color Depth | 8 bit |
| Contrast Ratio | 1200 : 1 |
| Backlight | LED |
| Viewing Angle | 178° (H), 178° (V) |
| Interfaces | |
| Ethernet | 1 x RJ-45 Female, 10 / 100 / 1000 BaseT |
| USB | 2 x USB Type A |
| Power Inputs | |
| Power over Ethernet (PoE) | No |
| Power Consumption | TBD |
| Environmental | |
| Operating Temperature | 0 - 40°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 10 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | TBD |
| Dimensions (L x W x H) | TBD |
| Note | N/A |
Description

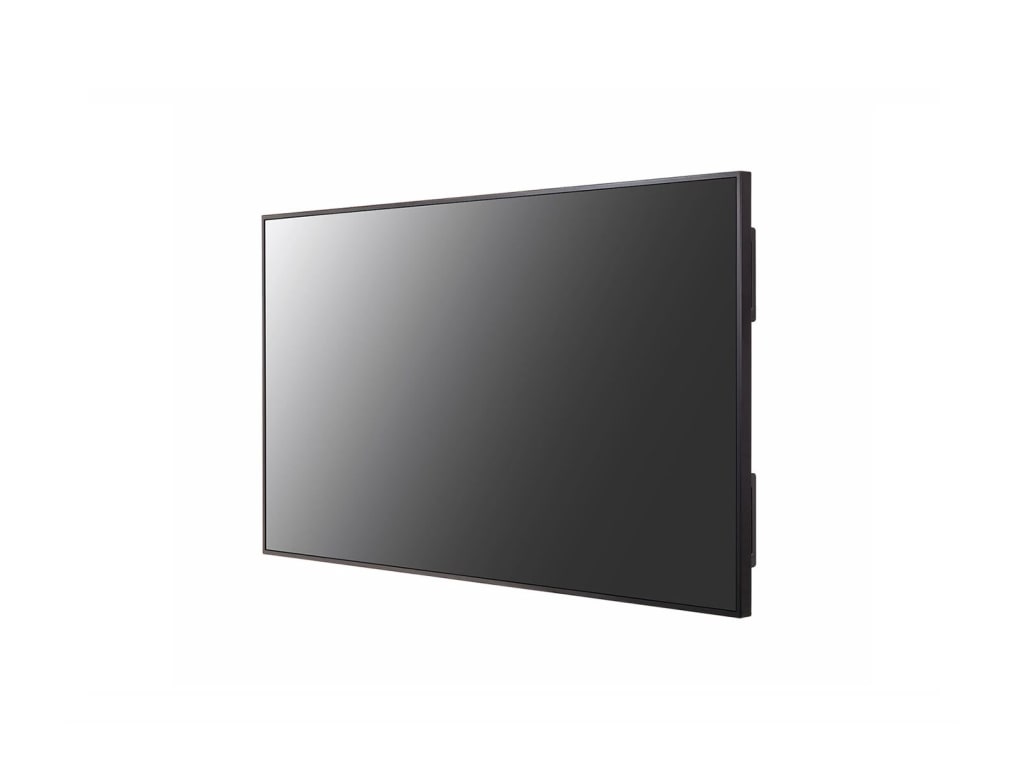

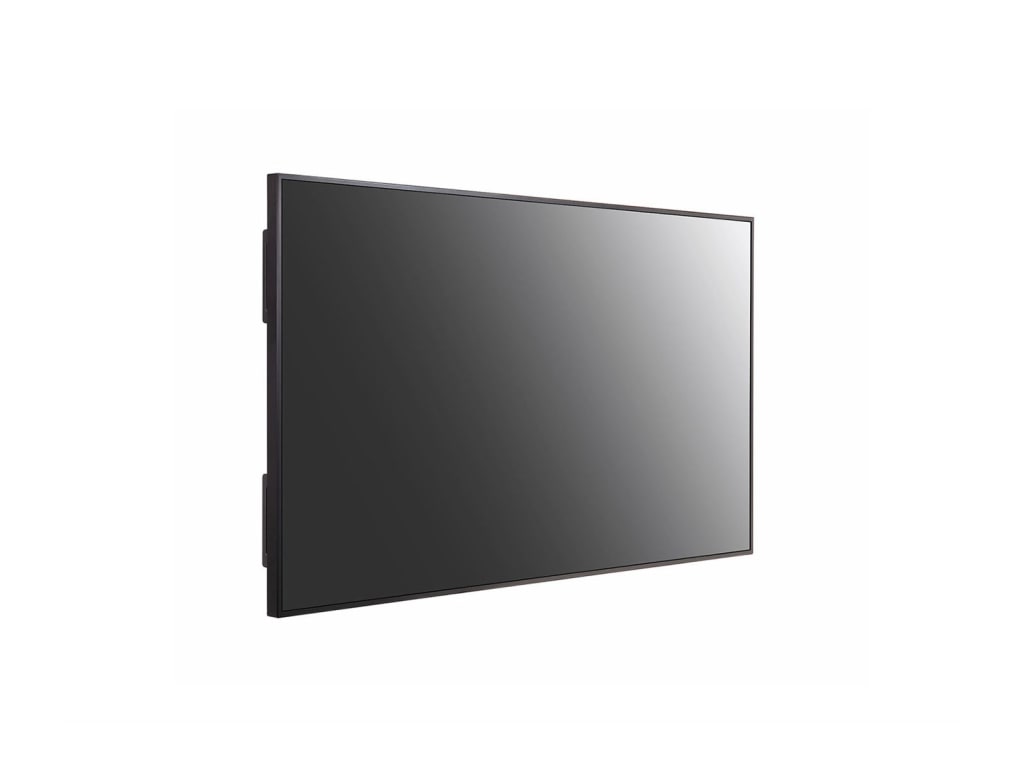

The LG 98UM3E-B is a 98” UHD LED back-lit digital display with a webOS smart signage platform and an aspect ratio of 16:9. With superb picture quality and slim design, they Series provides an optimal vision for various indoor environments. The Ultra HD quality combined with webOS Signage 4.0 makes this the perfect meeting room signage solution.
- ULTRA HD Resolution: With a resolution that is 4 times higher than FHD, it makes the color and details of the contents more vivid and realistic. In addition, the wide viewing angle applied with LG IPS Panel, provides clear content with no distortion.
- High-Efficiency Video Coding: The UM3F and UM3E Series support HEVC which efficiently compresses/ decompresses high-capacity UHD contents, playing ultra-high quality videos with half the network traffic than the existing H.264 codec.
- Slim Depth and Detachable Logo: Although the UM3F and UM3E Series are large displays, the product still has a slim depth which allows easy installation by using less space. Also, the detachable logos give users the flexibility to arrange the display.
Built-in Speakers: Contents will be enriched with sound effects from built-in speakers, without the need for purchasing or installing external speakers.
- High-Performance with webOS: Built-in Quad Core SoC can execute several tasks at once while providing smooth content playback without the need for a media player. Also, LG webOS smart signage platform enhances user convenience with intuitive GUI and simple app development tools.
- Various Sensor Applications: LG webOS smart signage platform easily supports connections with external sensors such as GPIO, NFC/RFID, temperature sensors, etc, via a USB plugin. This smart signage has no need to purchase additional software or media players for creating value-added solutions.
- Compatible with AV Control System: The UM3F and UM3E series have been certified Crestron Connected for high compatibility with professional AV controls to achieve seamless integration and automated control*, boosting business management efficiency.
Compatible with Video Conference System: For the optimum visual meeting, the UM3F and UM3E series have certified its compatibility with the Cisco System which offers powerful and integrated control for a smarter video conference, eliminating a waste of time for setting up the picture quality or changing input on incoming calls.
- Multi Screen with PBP/PIP: PBP (Picture-By-Picture) features multi-screen in a single display with up to 4 input sources while PIP (Picture-In-Picture) supports playing both the main screen and sub screen at the same time with various layouts. This gives great flexibility to allocate space for each content source.
- Real-Time Monitoring & Control: Through the Control Manager, the embedded web monitoring solution, you can control and monitor the status of multiple UM3F and UM3E series displays in different locations in real time. It is available on internet-connected devices, allowing you to flexibly and rapidly respond to emergency situations anywhere.
- Content Sharing: Content Mirroring among devices is more convenient on a Wi-Fi network.
Real-time Promotion: With Beacon and BLE(Bluetooth Low Energy), shop managers can provide coupons and information in real-time.
- Wireless Access Point: The UM3F and UM3E series operate as a virtual router which can be a wireless access point for mobile devices.
In the Box
Frequently Asked Questions
Q: What is the LG 98UM3E-B - 98-inch UHD LED Back-lit Digital Display with webOS Smart Signage Platform?A: The LG 98UM3E-B is a large-format digital display that offers a stunning visual experience for various applications. It features a 98-inch UHD LED back-lit display with webOS Smart Signage Platform, providing advanced features and seamless integration.
Q: What are the benefits of using the LG 98UM3E-B?A: The LG 98UM3E-B offers numerous benefits for businesses and organizations, including: * Immersive visual experience: The 98-inch UHD LED display delivers vibrant and detailed visuals, capturing viewers' attention and enhancing engagement. * Easy content management: With the webOS Smart Signage Platform, users can easily manage and schedule content, ensuring timely and relevant messaging. * Versatile connectivity: The display offers various connectivity options, including HDMI, USB, and RJ45, allowing for seamless integration with different devices and systems. * Energy-efficient operation: The LED back-lit technology ensures energy efficiency, reducing power consumption and operating costs. * Durable and reliable: The LG 98UM3E-B is built with high-quality materials and designed to withstand continuous use, ensuring long-lasting performance.
Q: What are the key features of the LG 98UM3E-B?A: The LG 98UM3E-B comes with a range of key features that enhance its usability and performance, such as: * 98-inch UHD LED back-lit display with a resolution of 3840 x 2160 pixels, delivering stunning visuals with sharp details. * webOS Smart Signage Platform, offering a user-friendly interface for content management and customization. * Multiple connectivity options, including HDMI, USB, and RJ45, enabling seamless integration with various devices and systems. * Built-in speakers, providing clear and immersive audio experiences. * Advanced display settings and picture modes for optimal visual performance in different environments. * Remote control and monitoring capabilities for efficient management and troubleshooting.
Q: What are some common applications for the LG 98UM3E-B?A: The LG 98UM3E-B can be utilized in various scenarios, including: * Retail environments for advertising and promotional displays. * Corporate settings for presentations, meetings, and digital signage. * Educational institutions for interactive learning experiences and information displays. * Hospitality industry for digital signage and guest communication. * Entertainment venues for immersive video and audio experiences. * Public spaces for information dissemination and wayfinding.
Q: How user-friendly is the LG 98UM3E-B?A: The LG 98UM3E-B is designed to be user-friendly, with intuitive controls and a user-friendly interface. The webOS Smart Signage Platform simplifies content management and customization, allowing users to easily schedule and update their displays. Additionally, the display's remote control and monitoring capabilities make it convenient to manage and troubleshoot from a central location.
