Technical Specifications
| Model: LG 49VL5GMW-4P Specifications | |
| Panel Spec | |
| Display Type | TFT-LCD |
| Size | 49" |
| Resolution | 1920 x 1080 (Full HD) |
| Aspect Ratio | 16 : 9 |
| Brightness | 500 nits |
| Contrast Ratio | 1,300 : 1 |
| Backlight | LED |
| Viewing Angle | 178°/178° |
| Interfaces | |

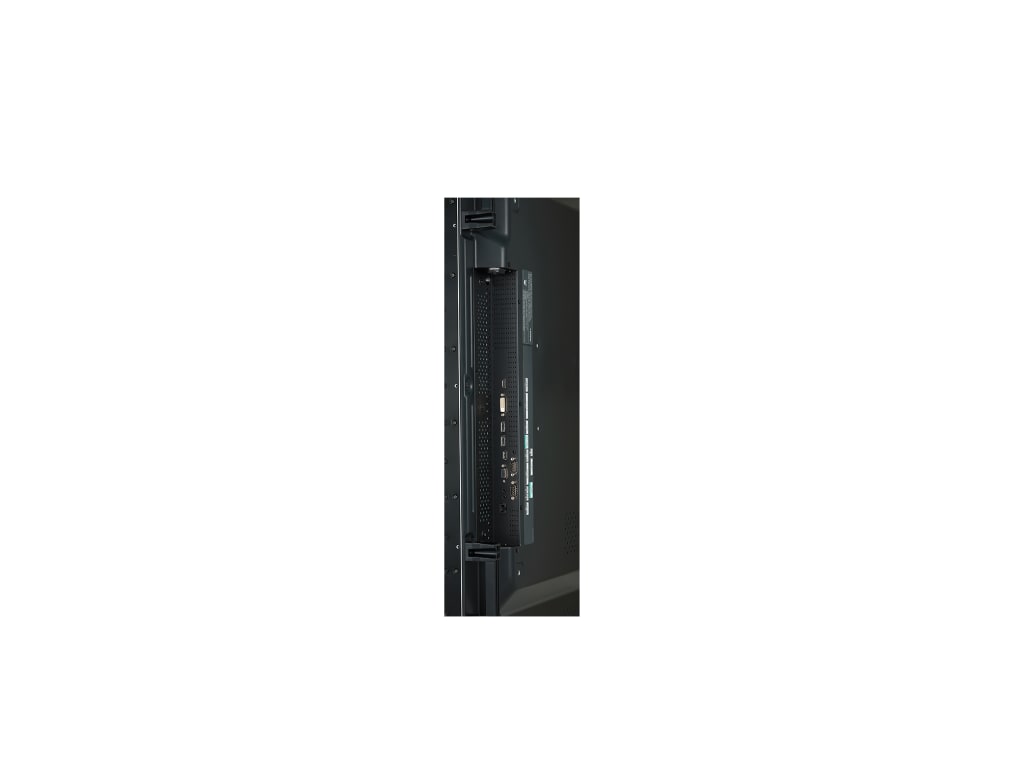

| Input | HDMI (2), DVI-D, DisplayPort, RGB, Audio |
| Output | DisplayPort (Daisy Chain) |
| Power | |
| Power Supply | 100-240V~, 50/60Hz |
| Power Consumption | Typical: 90W, Max: 110W |
| Environmental | |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Humidity | 10% to 80% |
| Physical Properties | |
| Bezel Width | 3.5mm (T/L), 1.8mm (B/R) |
| Dimensions (W x H x D) | 1073.8mm x 607.8mm x 89.9mm |
| Weight | Approx. 17.8kg |
| Mount | |
| Mount Type | Peerless Full-Service Video Wall Mount |
Resources
Description

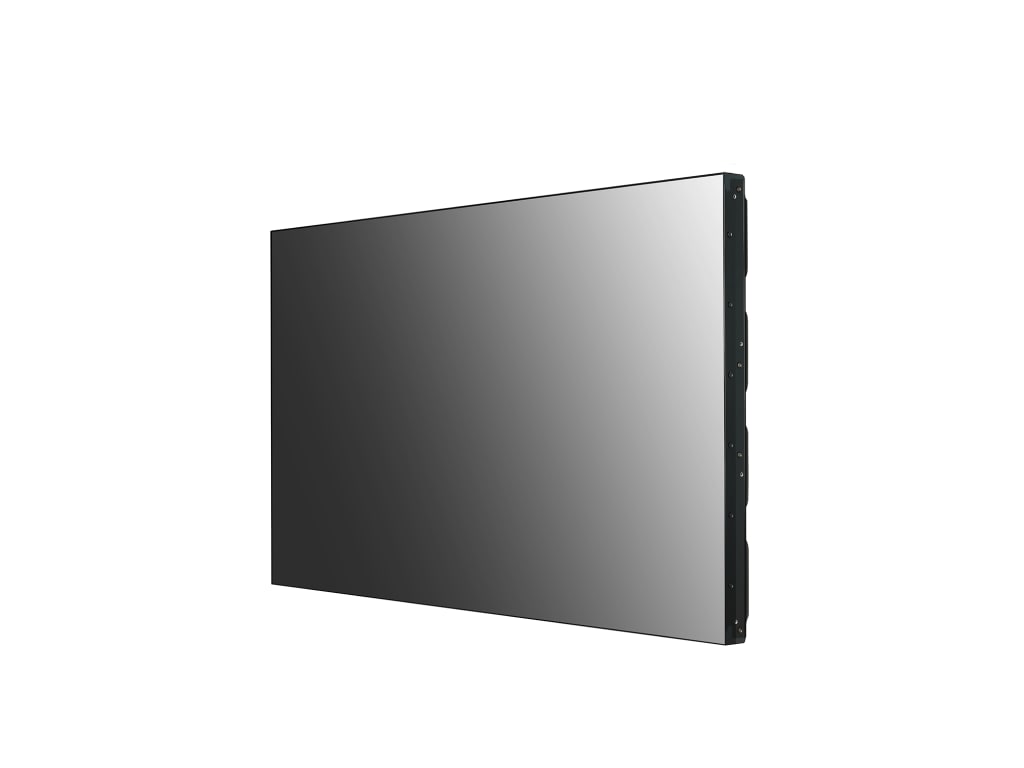

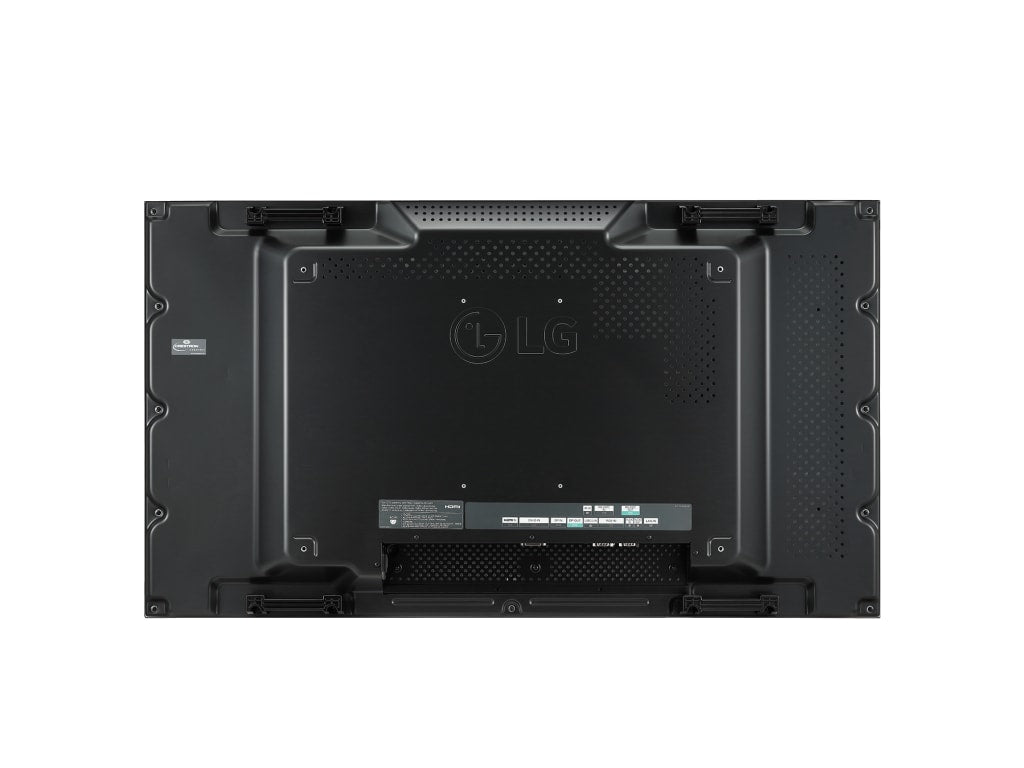

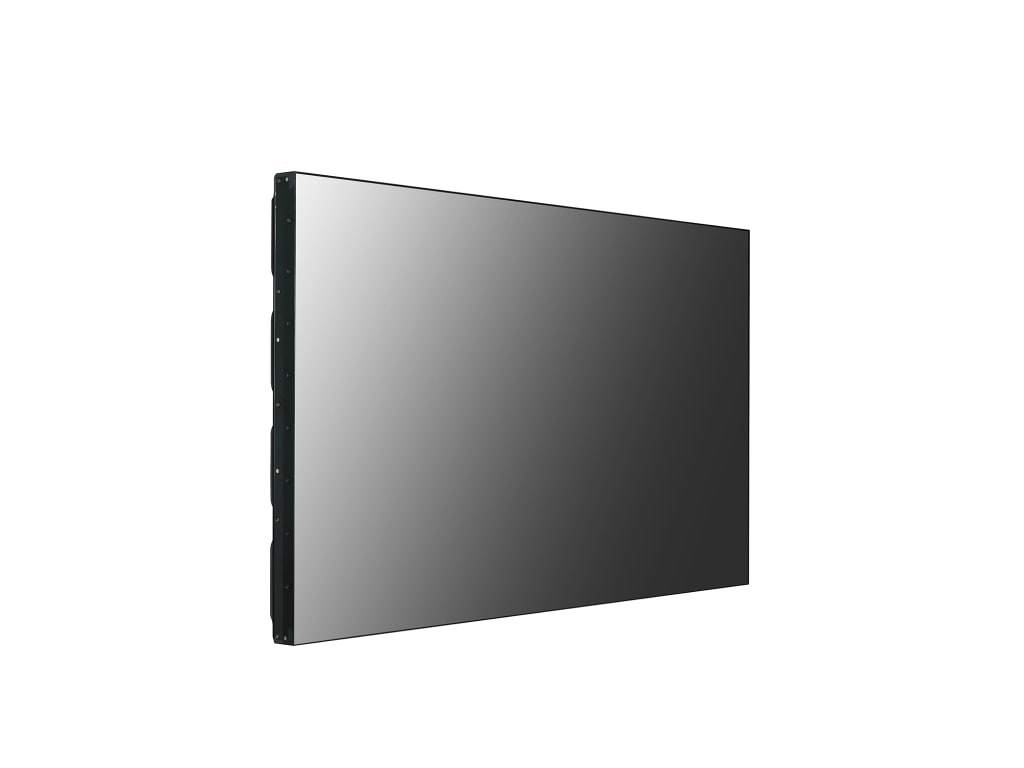

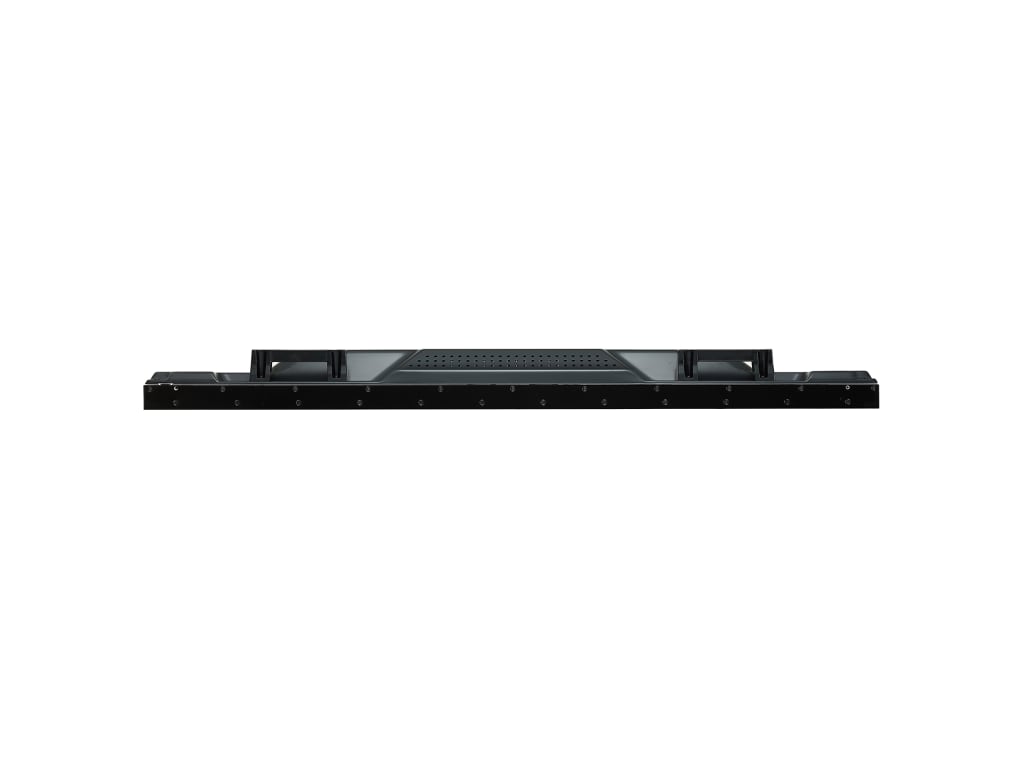

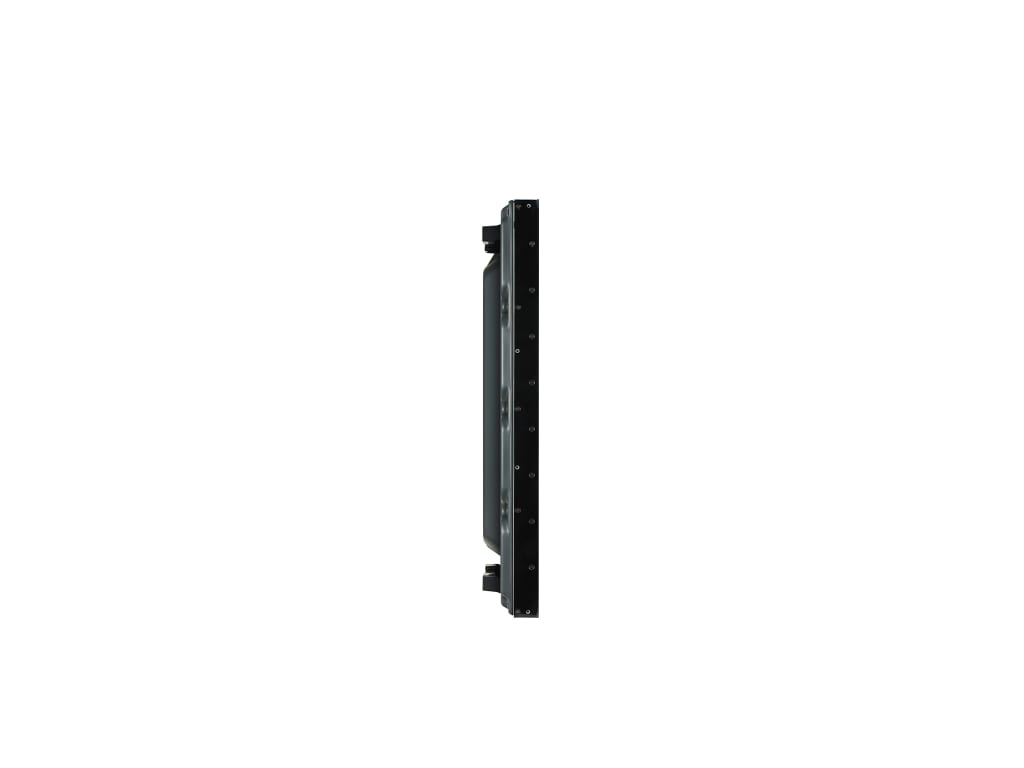

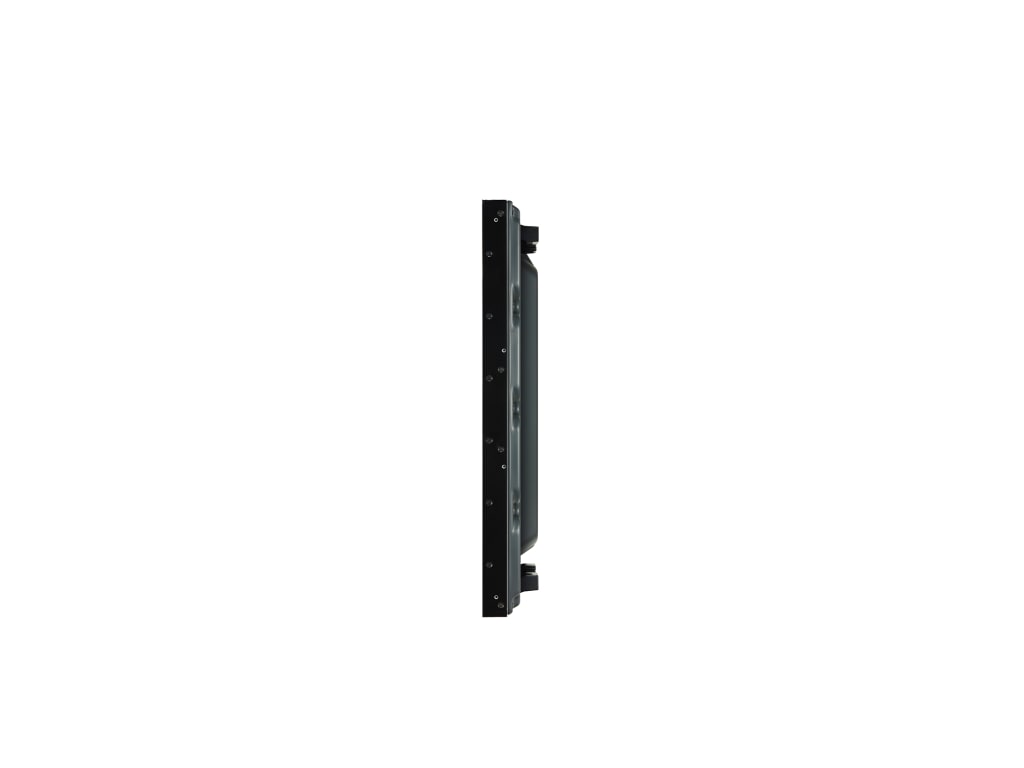

The LG 49VL5GMW-4P is a 49" screen size black monitor (2x2 ft), featuring IPS panel technology, 1,920 X 1,080 (FHD) resolution, and a brightness of 500 cd/m². This LG's Bezel: 2.25 mm (T/L), 1.25 mm (B/R) Depth: 89.7 mm and it has product Interface: HDMI/ DP/ DVI-D/ USB/ RS232C/ RJ45/ Audio/ IR and it's Power Supply: AC 100-240V~, 50/60Hz with the Power Consumption Typ./Max. 100W / 120W.
- Seamless Large Screens with Ultra- Narrow Bezel
- Image Gap Reduction
- Higher Viewing Angle
- Wide Viewing Angle
- Easy Color Adjustment
- White Balance Adjustment
- User-Friendly Menu Structure
- Intuitive GUI
The ultra-narrow bezel creates a visually stunning digital wall to effectively deliver dynamic content and immerse the viewers. The large screen it generates is enough to captivate the attention of passersby.
The VL5G-M series includes an image improvement algorithm that can reduce image gaps among tiled displays when playing back videos. Objects located on the bezel boundaries are adjusted for a seamless viewing experience. The "LG Conventional" refers to displays that do not include an image improvement algorithm.
Large screens are usually positioned higher than human-eye level, making uniform picture quality essential for video walls. The viewing angle of the VL5G-M series is high enough to display vivid colors throughout the screen with no distortion. Results based on in-house testing. Actual test results may differ depending on the environment and measuring equipment.
It is well known that LG IPS panel technology enables better control of liquid crystals, which in turn allows the screen to be viewed from virtually any angle. Because of this, the VL5G-M series captures the attention of and captivates more viewers with lifelike colors, regardless of their viewing position.
Depending on the content, the display's color temperature can be easily adjusted in increments of 100K using a remote control. In conventional video walls, white balance was adjustable only in “full-white” mode, but the VL5G-M series allows you to modify each value of greyscale to achieve more detailed and precise white balance adjustment.
The menu structure has been optimized for commercial use. It simplifies approach flows and groups similar functions together, adopting a more intuitive GUI for ease of use. This way, users can avoid having to do trial-and-error when exploring desired functions and managing displays. The GUI (Graphic User Interface) is carefully designed with a four-way navigation remote control that lets users easily switch to other settings. Also, it adopts a large font for better visibility, which is necessary when users want to control displays from relatively far distances.
In the Box
Frequently Asked Questions
Q: What is the LG 49VL5GMW-4P - 49" Full HD Slim Bezel Video Wall with Peerless Mount, 2x2ft, 500 Nits?A: The LG 49VL5GMW-4P is a high-quality video wall display that offers a slim bezel design, Full HD resolution, and a Peerless mount for easy installation. With a brightness of 500 nits, it delivers vibrant and clear visuals for various applications.
Q: What are the benefits of using the LG 49VL5GMW-4P video wall?A: The LG 49VL5GMW-4P video wall provides several benefits for businesses and organizations: * Immersive visual experience: The slim bezel design and Full HD resolution create a seamless and immersive viewing experience for customers and visitors. * Enhanced advertising and branding: With its large display area, the video wall is an effective tool for showcasing advertisements, promotions, and brand messaging. * Versatile content display: The 2x2ft configuration allows for flexible content arrangements, making it suitable for displaying images, videos, and dynamic content. * Easy installation: The included Peerless mount ensures a hassle-free installation process, saving time and effort. * Reliable performance: With a brightness of 500 nits, the video wall delivers clear and vibrant visuals even in well-lit environments, ensuring maximum visibility.
Q: What are the key features of the LG 49VL5GMW-4P video wall?A: The LG 49VL5GMW-4P offers a range of features that make it an excellent choice for businesses: * 49-inch Full HD display: The video wall provides a large screen size and Full HD resolution, ensuring sharp and detailed visuals. * Slim bezel design: The slim bezel minimizes distractions and creates a seamless display when multiple screens are tiled together. * Peerless mount: The included Peerless mount simplifies the installation process and ensures a secure and stable mounting. * High brightness: With a brightness of 500 nits, the video wall delivers clear and vibrant images, even in well-lit environments. * Wide viewing angles: The display offers wide viewing angles, ensuring that the content is visible from various positions.
Q: What are some of the applications for the LG 49VL5GMW-4P video wall?A: The LG 49VL5GMW-4P video wall can be utilized in various scenarios, including: * Retail environments: The video wall is perfect for showcasing product advertisements, promotions, and branding in retail stores. * Hospitality industry: Hotels, restaurants, and event venues can use the video wall to display event schedules, menus, and engaging visuals. * Corporate settings: Conference rooms, reception areas, and lobbies can benefit from the video wall for presentations, company branding, and information display. * Control rooms: The video wall's large screen size and high brightness make it suitable for monitoring and displaying critical information in control rooms. * Entertainment venues: Movie theaters, stadiums, and concert halls can enhance the overall experience by utilizing the video wall for captivating visuals and advertisements.
Q: How easy is it to install and operate the LG 49VL5GMW-4P video wall?A: The LG 49VL5GMW-4P video wall is designed for easy installation and operation. The included Peerless mount simplifies the mounting process, and the user-friendly interface ensures intuitive control and management of the video wall. Additionally, LG provides comprehensive documentation and support to assist with any installation or operational queries.
