Technical Specifications

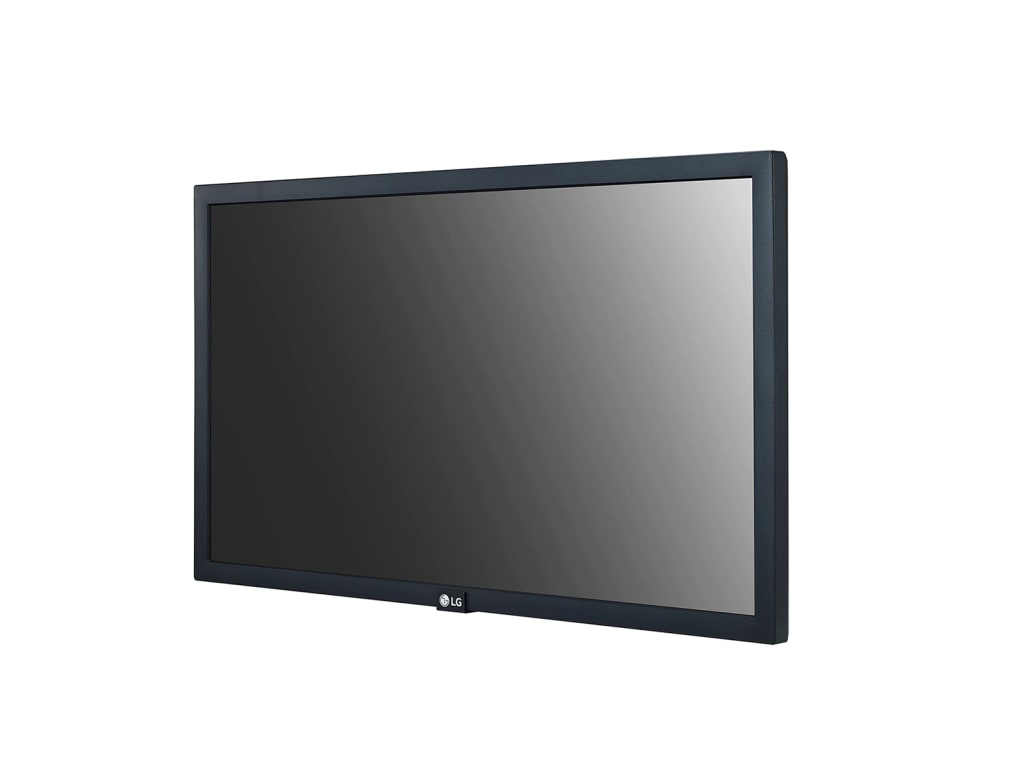

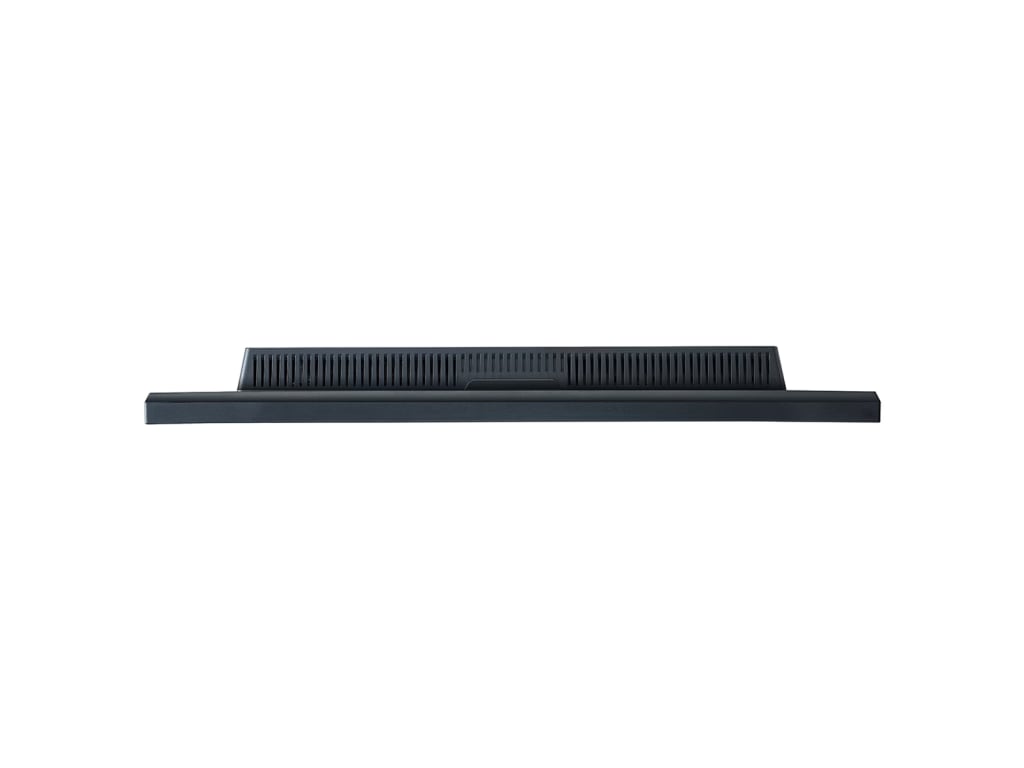

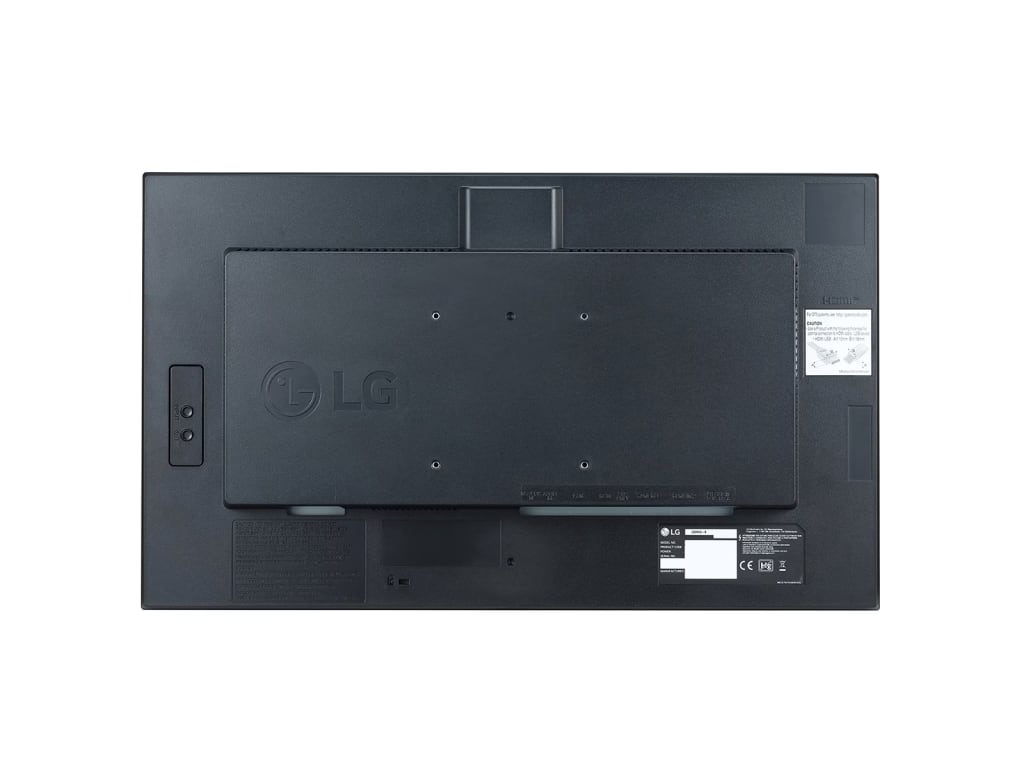

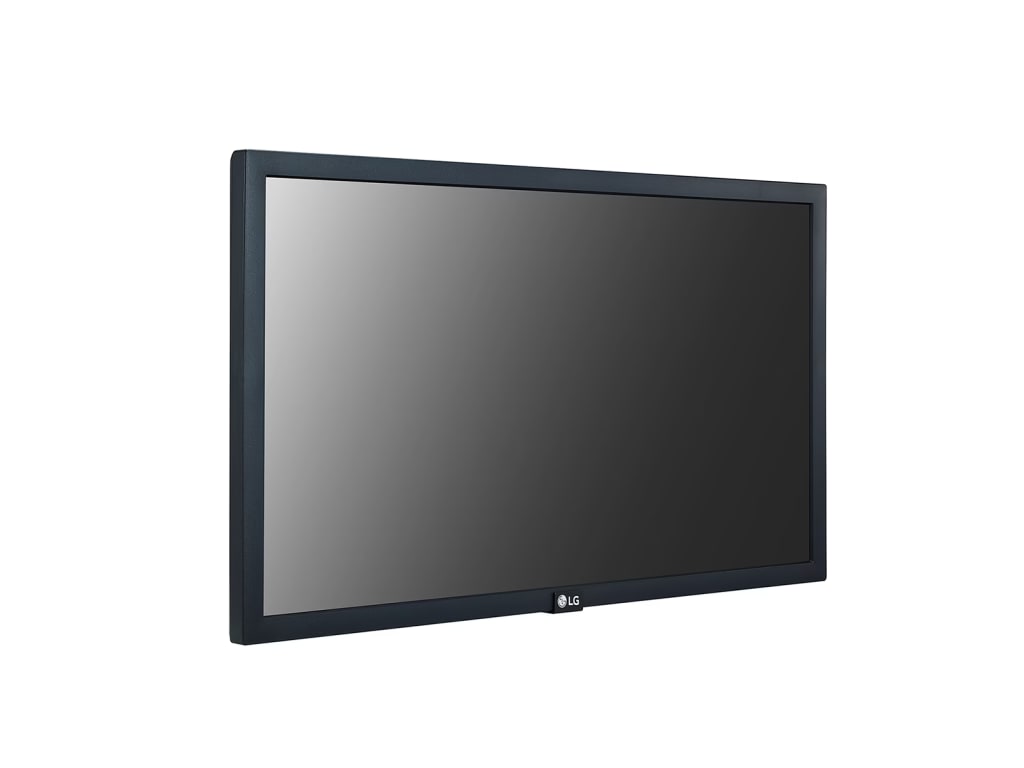

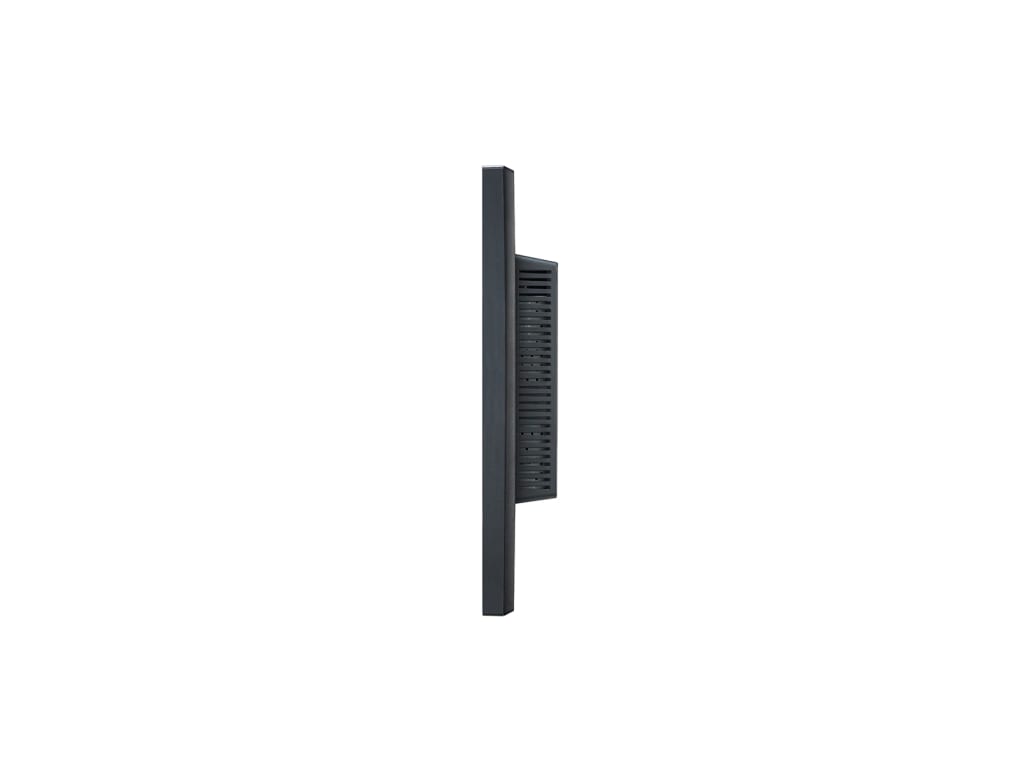

| Model: LG 22SM3G-B - 22-inch IPS FHD LED Backlit Digital Display with Embedded CMS and Built-in WiFi | |
| Panel Spec | |
| Display Type | IPS LCD |
| Size | 22" |
| Touch Screen | No |
| Resolution | 1920 x 1080 (Full HD) |
| Aspect Ratio | 16 : 9 |
| Color Depth | 8 bit |
| Contrast Ratio | 1000 : 1 |
| Backlight | LED |
| Viewing Angle | 178° (H), 178° (V) |
| Interfaces | |
| Ethernet | No |
| USB | 1 x USB Type A |
| Power Inputs | |
| Power over Ethernet (PoE) | No |
| Power Consumption | 30W |
| Environmental | |
| Operating Temperature | 0 - 40°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 10 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Plastic |
| Weight | 3.3 kg (7.28 lb) |
| Dimensions (L x W x H) | 50.8 x 32.6 x 5.1 cm (20 x 12.8 x 2 in.) |
| Note | N/A |
Description
The LG 22SM3G-B is a 22” IPS FHD LED back-lit digital display with embedded CMS. With a 16:9 aspect ratio and a 60Hz refresh rate, this display delivers clear and smooth visuals. The brightness (Typ.) is 250 cd/m², ensuring vibrant and vivid colors. The 22SM3G-B is equipped with a Quad Core SoC with webOS 4.0, a smart signage platform, and built-in WiFi, providing a seamless and convenient user experience.
The LG 22SM3G-B is a versatile digital signage solution that is perfect for various commercial spaces. With its webOS platform and embedded CMS, it offers an intuitive GUI and simple app development tools, making it a must-have for businesses. The display also supports connections with external sensors such as GPIO, NFC/RFID, and temperature sensors, reducing the overall cost for maintenance. With a wide range of interface options including HDMI, USB, LAN, and RS232C, the 22SM3G-B allows for easy connectivity with different sources. It also supports USB Plug & Play, making content playback hassle-free. With features like content mirroring, real-time promotion, and wireless access point capabilities, this display offers a comprehensive solution for businesses. Additionally, the Control Manager and LG ConnectedCare provide remote monitoring and control, ensuring a stable operation of the display and quick response to emergency situations.
In the Box
Frequently Asked Questions
Q: What is the LG 22SM3G-B - 22-inch IPS FHD LED Backlit Digital Display with Embedded CMS and Built-in WiFi?A: The LG 22SM3G-B is a 22-inch digital display that offers a high-quality viewing experience with its IPS FHD LED backlit technology. It comes with an embedded CMS (Content Management System) and built-in WiFi, allowing users to easily manage and display content wirelessly.
Q: What are the benefits of using the LG 22SM3G-B?A: The LG 22SM3G-B provides several benefits for users in various scenarios: - Versatile display: The 22-inch size and FHD resolution make it suitable for different applications, such as retail signage, information displays, and digital menu boards. - Enhanced visibility: The IPS technology ensures wide viewing angles and accurate color reproduction, making the display easily readable from different perspectives. - Convenient content management: The embedded CMS allows users to create, schedule, and update content effortlessly, ensuring dynamic and engaging displays. - Wireless connectivity: With built-in WiFi, users can connect and control the display wirelessly, eliminating the need for cables and providing flexibility in installation.
Q: What are the key features of the LG 22SM3G-B?A: The LG 22SM3G-B offers several key features that contribute to its usability and performance: - IPS FHD LED backlit display: The IPS technology ensures vibrant colors, wide viewing angles, and sharp image quality. - Embedded CMS: The built-in Content Management System allows users to easily create, schedule, and manage content without the need for external devices or software. - Built-in WiFi: The display comes with built-in WiFi connectivity, enabling wireless control and content updates. - Multiple input options: The LG 22SM3G-B supports various input options, including HDMI, DVI, and USB, allowing users to connect different devices. - Slim design: The slim and sleek design of the display makes it aesthetically pleasing and suitable for different environments.
Q: What are some scenarios where the LG 22SM3G-B can be beneficial?A: The LG 22SM3G-B can be beneficial in various scenarios, including: - Retail: The display can be used for eye-catching product promotions, digital signage, and interactive product catalogs. - Hospitality: It can serve as information displays in hotels, restaurants, and lobbies, providing guests with relevant information and announcements. - Education: The display can be used in classrooms for interactive learning, displaying educational content, and enhancing student engagement. - Corporate: It can be utilized for presentations, meeting room displays, and internal communication, improving productivity and collaboration. - Entertainment: The display can be used for gaming, media playback, and creating immersive experiences in entertainment venues.
Q: How user-friendly is the LG 22SM3G-B?A: The LG 22SM3G-B is designed to be user-friendly with its intuitive interface and convenient features. The embedded CMS simplifies content management, and the built-in WiFi allows for wireless control and updates. The display is easy to set up and operate, making it accessible for users with varying technical expertise.
