| Category | Specification |
|---|---|
| Screen Size | 98 inches |
| Resolution | 4K UHD (3840 × 2160) |
| Brightness | 500 nits |
| Panel Type | IPS (LED backlight) |
| Touch Technology | Infrared touch |
| Touch Points | 20 points |
| Response Time | 8 ms |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 1200:1 (typical) |
| Color Depth | 10-bit (1.07 billion colors) |
| Operating System | Android 8.0 |
| Processor | Quad-core (A73 × 2 + A53 × 2) |
| Memory / Storage | 3GB RAM / 32GB storage |
| Speakers | 2 × 16W |
| Connectivity | 3 × HDMI, 2 × USB-A, 2 × USB-B, 1 × VGA, 1 × LAN, Audio in/out |
| Power Consumption | 201.2 W (typical), < 0.5 W standby |
| Dimensions (W × H × D) | 2244.9 × 1340.4 × 108.2 mm (88.4 × 52.8 × 4.3 inches) |
| Weight | 113.0 kg (249.1 lbs) |

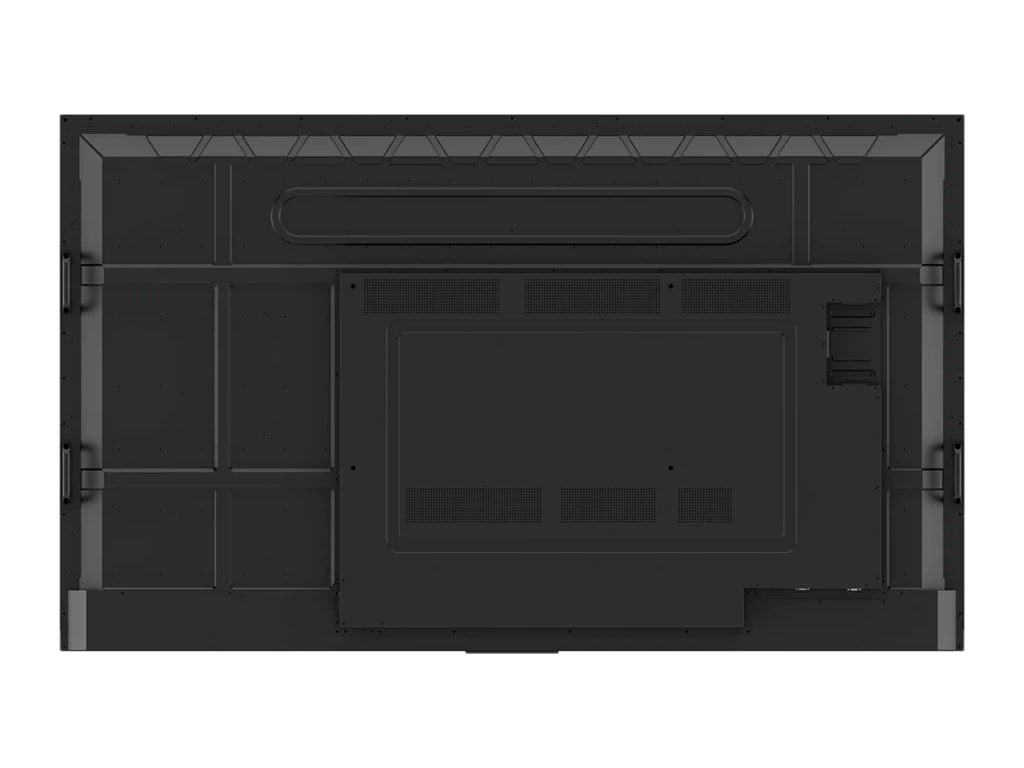

| Mount Compatibility | VESA 800 × 600 mm |

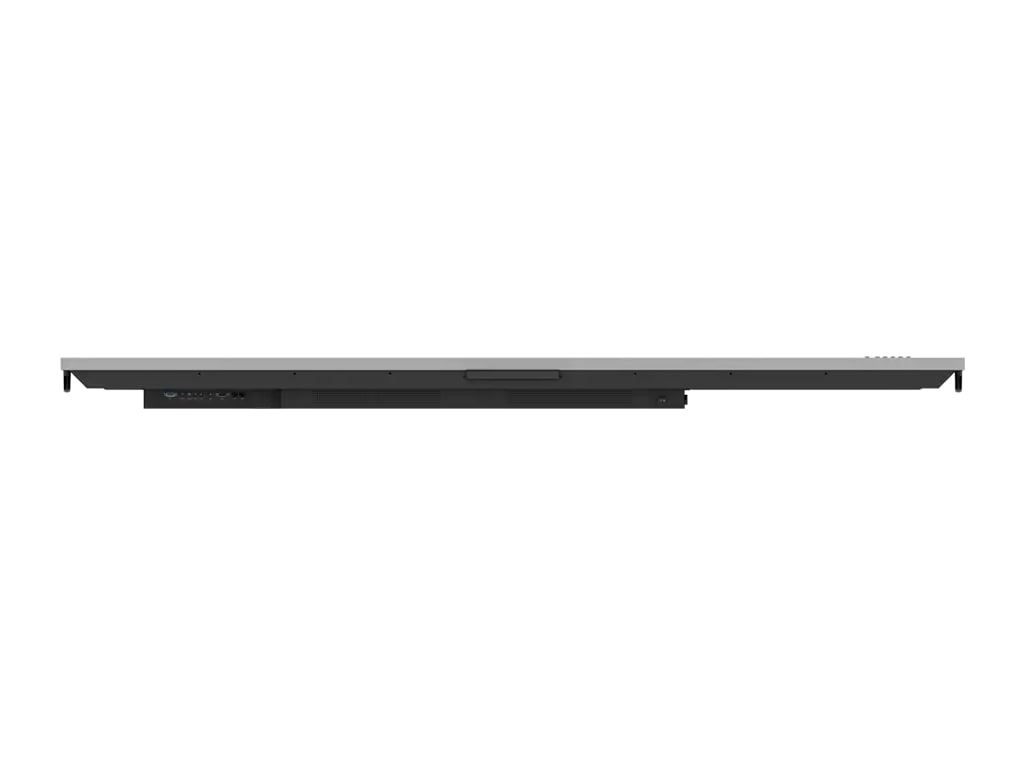

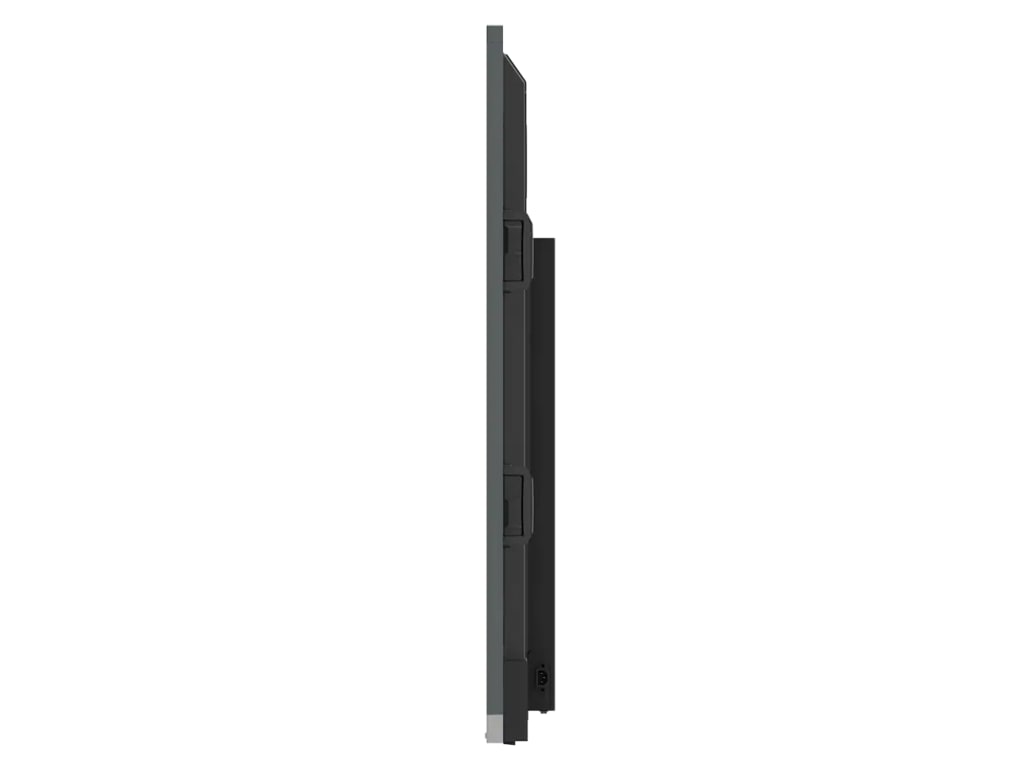

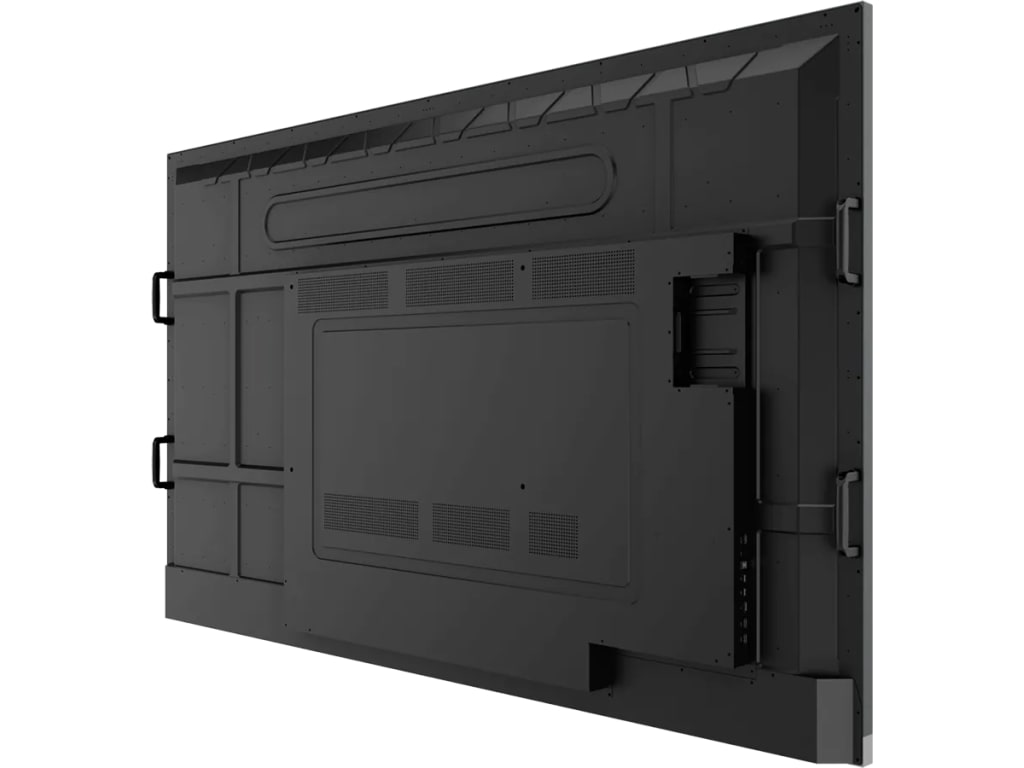

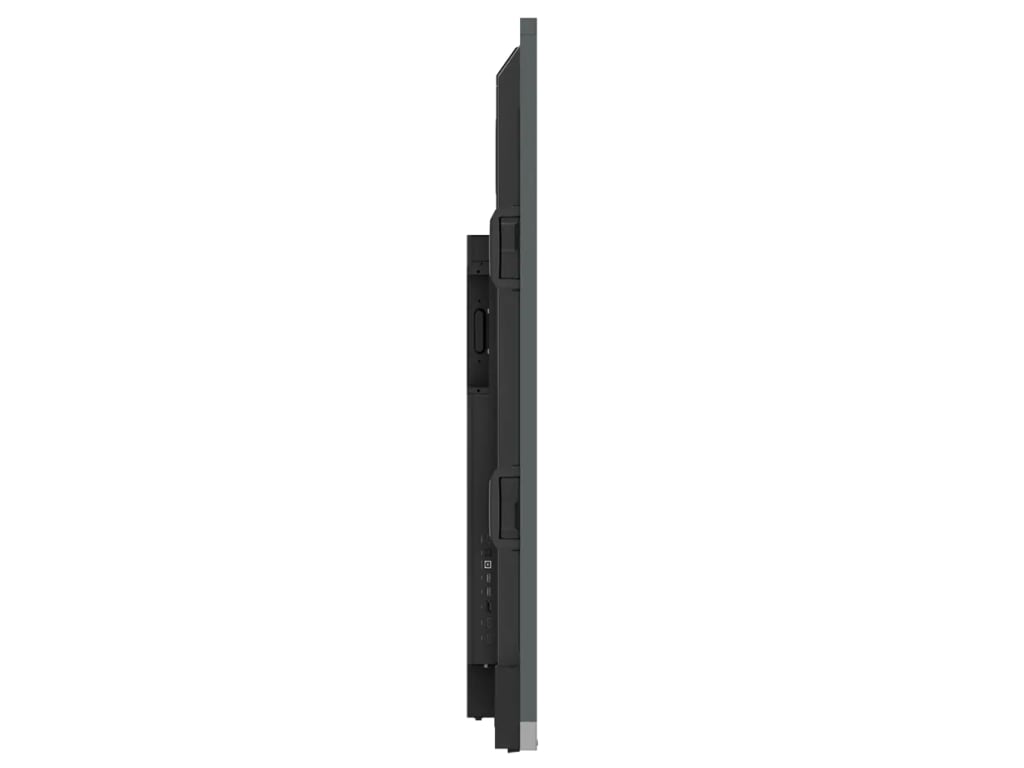

The BenQ RE9801 is a 98-inch 4K UHD interactive display designed for large learning environments such as auditoriums, lecture halls, and advanced classrooms. Its expansive screen enables educators to showcase more content at once, ideal for hybrid learning, side-by-side instruction, and immersive multimedia demonstrations.
Featuring 500-nit brightness, an anti-glare coating, and durable 8H tempered glass, the RE9801 ensures crystal-clear visibility from every angle, even in bright spaces. With TÜV-certified germ-resistant glass and 20-point multi-touch capability, it encourages safe, collaborative interaction for entire classes.
Powered by Android 8.0 with 3GB RAM and 32GB of onboard storage, the RE9801 offers fast, responsive performance. The intuitive BenQ Launcher provides instant access to built-in teaching tools such as EZWrite 5.0 whiteboarding, InstaShare screen casting, and secure cloud access via AMS. IT administrators can remotely monitor and manage devices through BenQ DMS.
Integrated 2 × 16W speakers deliver powerful, room-filling sound, while X-Sign Broadcast enables real-time campus-wide communication. Flicker-Free and Low Blue Light technologies reduce eye strain for extended classroom sessions. Supporting landscape orientation and up to 18 hours of daily operation, the RE9801 is built for reliable, long-term educational use.
A: This model is designed for large spaces such as lecture halls, STEM labs, or professional training rooms. Its ultra-large 98" screen allows instructors to present detailed content to large groups with ease.
A: Yes. The 20-point multi-touch support allows multiple users to annotate, draw, or interact with the screen at once. Perfect for hands-on learning and group presentations.
A: The RE9801 features 9H tempered glass with an anti-glare finish. It's also coated with a germ-resistant layer that’s TÜV-certified to reduce surface bacteria by 99.9% making it ideal for frequent classroom interaction.
A: InstaShare 2 allows for wireless casting from laptops, tablets, or smartphones via AirPlay, Miracast, or the InstaShare app. Students and teachers can easily share their screens without cables.
A: Absolutely. The 500-nit brightness and anti-glare glass provide clear visibility even in sunlit rooms or open spaces with natural light.
A: EZWrite 5.0 whiteboard software, a floating toolbar, and file access tools are built-in. Teachers can annotate, launch cloud drives, or open resources quickly without needing an external computer.
A: Yes. The RE9801 supports X-Sign Broadcast, enabling administrators to send school-wide messages, updates, or emergency alerts in real time.
A: The dual 16W speakers deliver powerful, clear audio suited for large classrooms and training areas. External speakers can also be connected via audio ports or S/PDIF if needed.
A: The RE9801 comes with two touch pens, a wall mount kit, HDMI and VGA cables, a USB-B touch cable, power cable, and remote control, ready for plug-and-play use.
- HDMI Cable
- USB Cable for Touch
- Quick Start Guide
- User’s Manual (electronic file)
- Wall Mount (with shipment)
- Touch Pen (Stylus) x 2
- Power Cord (By Region)
- Remote Control
