Technical Specifications
| Model: AG Neovo RX-22G Specifications | |
| Panel Spec | |
| Display Type | TFT-LCD |
| Size | 22" |
| Touch Screen | No |
| Resolution | 1920 x 1080 (1080p) |
| Aspect Ratio | 16 : 9 |
| Color Depth | 8 bit |
| Contrast Ratio | 1000 : 1 |
| Backlight | LED |
| Viewing Angle | 178° (H), 178° (V) |
| Interfaces | |
| HDMI | 1 x HDMI |
| VGA | 1 x VGA |
| DVI | 1 x DVI |
| Audio | 1 x Audio In, 1 x Audio Out |
| Power Inputs | |
| Power Consumption | 30W |
| Environmental | |
| Operating Temperature | 0 - 40°C |
| Storage Temperature | -20 - 60°C |
| Humidity | 10 - 90% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 3.6 kg (7.93 lb) |
| Dimensions (L x W x H) | 51.9 x 31.7 x 5.6 cm (20.43 x 12.48 x 2.20 in.) |
| VESA Mount | 100 x 100 mm |
| Certifications | CE, FCC, RoHS |
Description

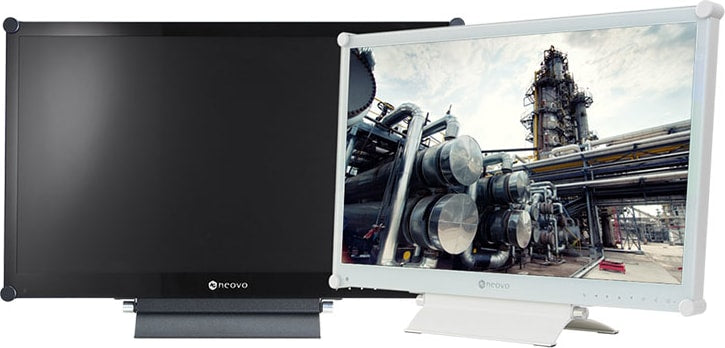

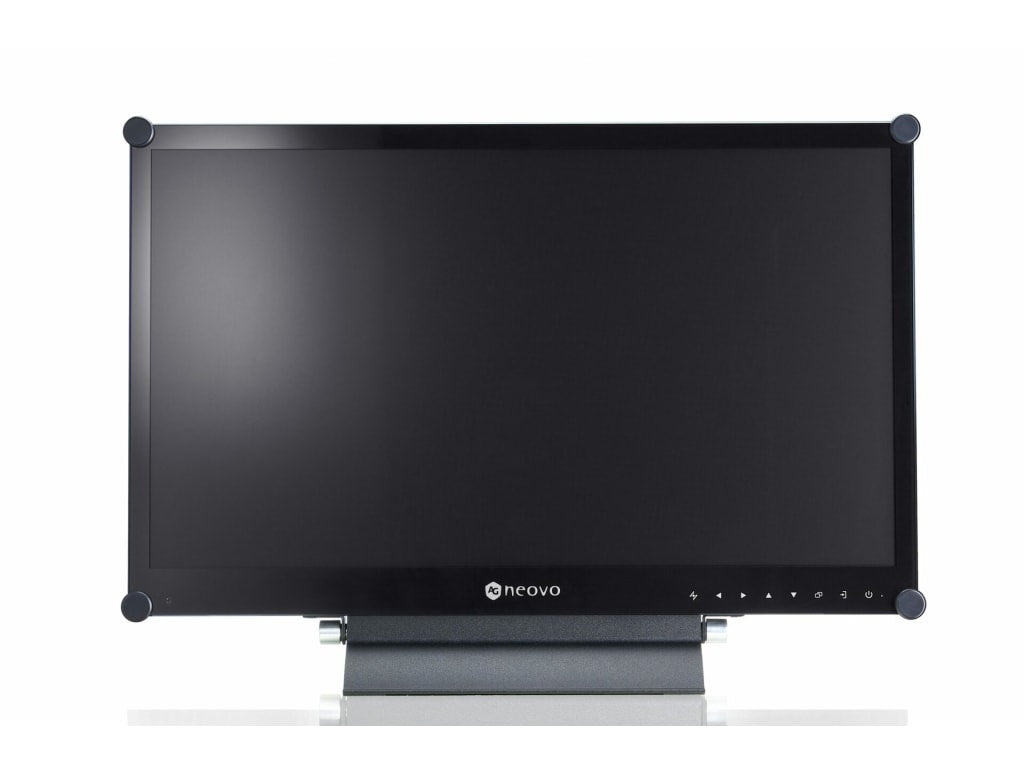

Introducing the AG Neovo RX-22G, a top-of-the-line security monitor with a sleek metal casing. This 22-inch monitor boasts a stunning 1080p resolution, providing crystal-clear images for all your security needs. With its TN panel technology, you can expect fast response times and excellent color reproduction.

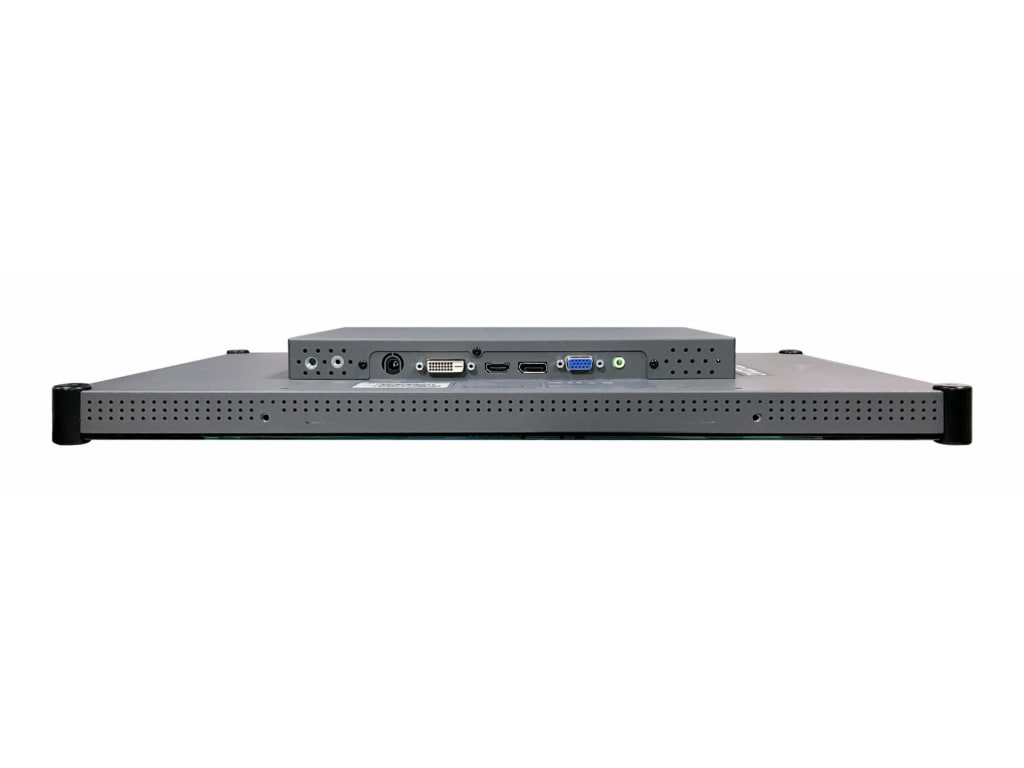

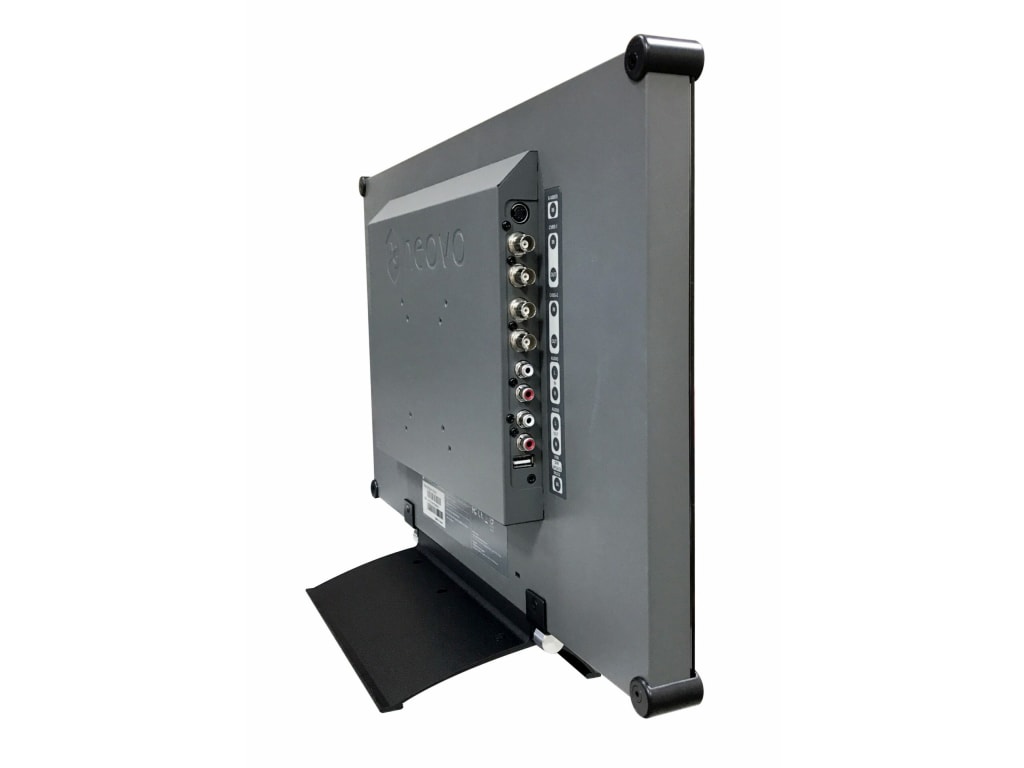

The AG Neovo RX-22G offers versatile connectivity options, including VGA, DVI, HDMI, DisplayPort, Composite (BNC), and S-Video inputs. It also features a Composite (BNC) passive loop-through output port, allowing you to easily connect multiple monitors. With its anti-burn-in technology, you can say goodbye to image ghosting and enjoy a seamless viewing experience.
Key Features:
- Full HD 1920 x 1080 resolution
- NeoV Optical Glass screen for added protection
- 170°/160° viewing angle for optimal visibility
- 3.5mm and RCA stereo audio jack for audio output
- External power supply for convenience
Upgrade your security system with the AG Neovo RX-22G and experience the ultimate in monitor performance and durability. With its metal casing and advanced features, this monitor is built to withstand the demands of any security environment.
In the Box
Frequently Asked Questions
Q: What is the AG Neovo RX-22G?A: The AG Neovo RX-22G is a 22" 1080p security monitor with a metal casing. It is designed specifically for security applications and offers high-quality display and durability.
Q: What are the benefits of using the AG Neovo RX-22G security monitor?A: The AG Neovo RX-22G offers several benefits for various security scenarios: * Crystal-clear display: The 1080p resolution ensures sharp and detailed images, allowing for accurate monitoring and identification. * Wide viewing angles: The monitor provides wide viewing angles, ensuring that security personnel can easily see the screen from different positions. * Metal casing: The metal casing provides enhanced durability and protection, making it suitable for demanding security environments. * Anti-burn-in technology: The monitor is equipped with AG Neovo's Anti-Burn-in™ technology, which prevents screen burn-in and ensures long-term reliability. * Multiple inputs: The monitor supports various input options, allowing for easy integration with security systems and devices.
Q: Can the AG Neovo RX-22G be used for surveillance purposes?A: Yes, the AG Neovo RX-22G is specifically designed for security applications, including surveillance. Its high-resolution display and wide viewing angles make it ideal for monitoring critical areas and ensuring effective surveillance operations.
Q: Is the AG Neovo RX-22G suitable for outdoor use?A: The AG Neovo RX-22G is primarily designed for indoor use. While it can withstand some environmental conditions, it is not specifically built for outdoor use. For outdoor security applications, we recommend considering AG Neovo's dedicated outdoor monitors.
Q: Can the AG Neovo RX-22G be wall-mounted?A: Yes, the AG Neovo RX-22G is compatible with VESA wall-mount standards, allowing for easy installation on walls or other mounting surfaces. This flexibility ensures that the monitor can be positioned optimally for effective monitoring.
Q: What is the warranty period for the AG Neovo RX-22G?A: The AG Neovo RX-22G comes with a standard manufacturer's warranty of [insert warranty period here]. This warranty covers any defects in materials or workmanship, providing peace of mind and ensuring customer satisfaction.
Q: Can the AG Neovo RX-22G be used in a multi-monitor setup?A: Yes, the AG Neovo RX-22G can be used in a multi-monitor setup. Its compatibility with various input options allows for easy integration with other monitors and security systems, enabling users to create a comprehensive surveillance network.
Q: What are some common applications for the AG Neovo RX-22G?A: The AG Neovo RX-22G is suitable for a wide range of security applications, including: * CCTV monitoring * Access control systems * Security control rooms * Retail loss prevention * Transportation security * Industrial surveillance
Q: How easy is it to install and set up the AG Neovo RX-22G?A: The AG Neovo RX-22G is designed for easy installation and setup. It comes with user-friendly interfaces and clear instructions, allowing for a hassle-free installation process. Additionally, its compatibility with standard VESA mounts makes it easy to position and secure the monitor in the desired location.
By providing detailed answers to frequently asked questions, we aim to help users understand the features and benefits of the AG Neovo RX-22G security monitor, making an informed decision for their security needs.
