Technical Specifications
| Model: LG 75XE3C-B | |
| Panel Spec | |
| Display Type | TFT-LCD |
| Size | 75" |
| Touch Screen | No |
| Resolution | 3840 x 2160 (4K UHD) |
| Aspect Ratio | 16 : 9 |
| Color Depth | 8 bit |
| Contrast Ratio | 1100 : 1 |
| Backlight | LED |
| Viewing Angle | 178° (H), 178° (V) |
| Interfaces | |
| Ethernet | 1 x RJ-45 Female, 10 / 100 / 1000 BaseT |
| USB | 2 x USB Type A |
| Power Inputs | |
| Power over Ethernet (PoE) | No |
| Power Consumption | AC 100-240V~, 50/60Hz |
| Environmental | |
| Operating Temperature | -30 - 50°C |
| Storage Temperature | -30 - 60°C |
| Humidity | 10 - 80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Weatherproof Enclosure |
| Weight | Approx. 58 kg (128 lbs) |
| Dimensions (L x W x H) | 1737.6 x 1006.2 x 120.6 mm (68.4" x 39.6" x 4.7") |
| Note | Outdoor signage enclosure with IP56 rating |
Resources
Description

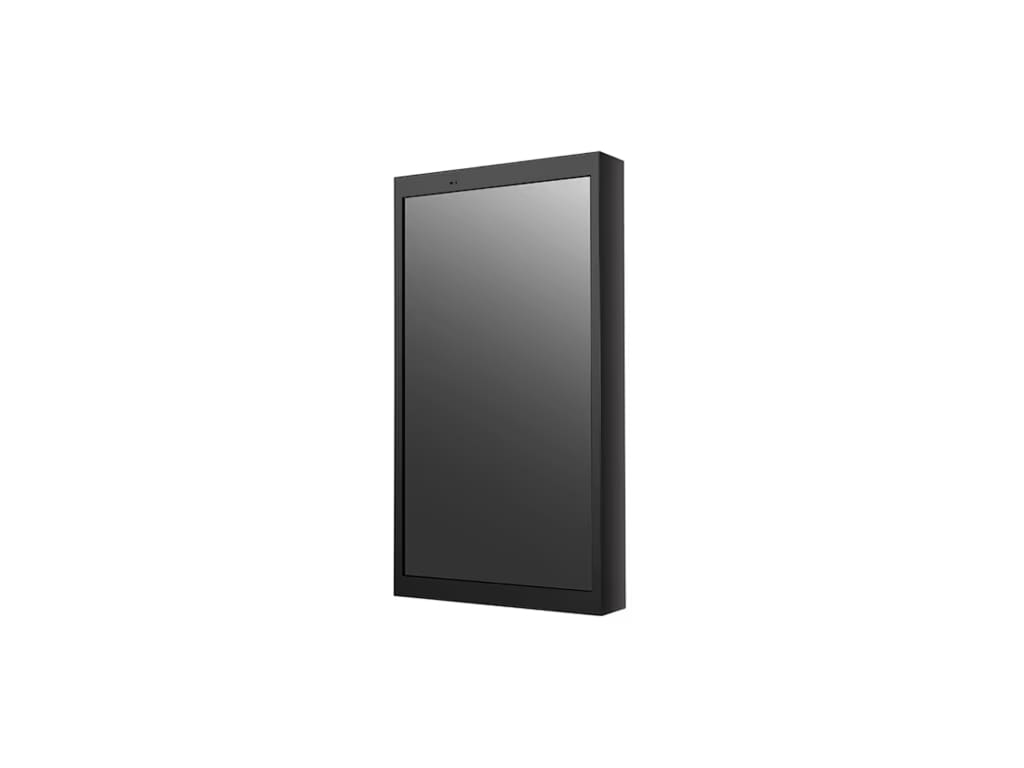

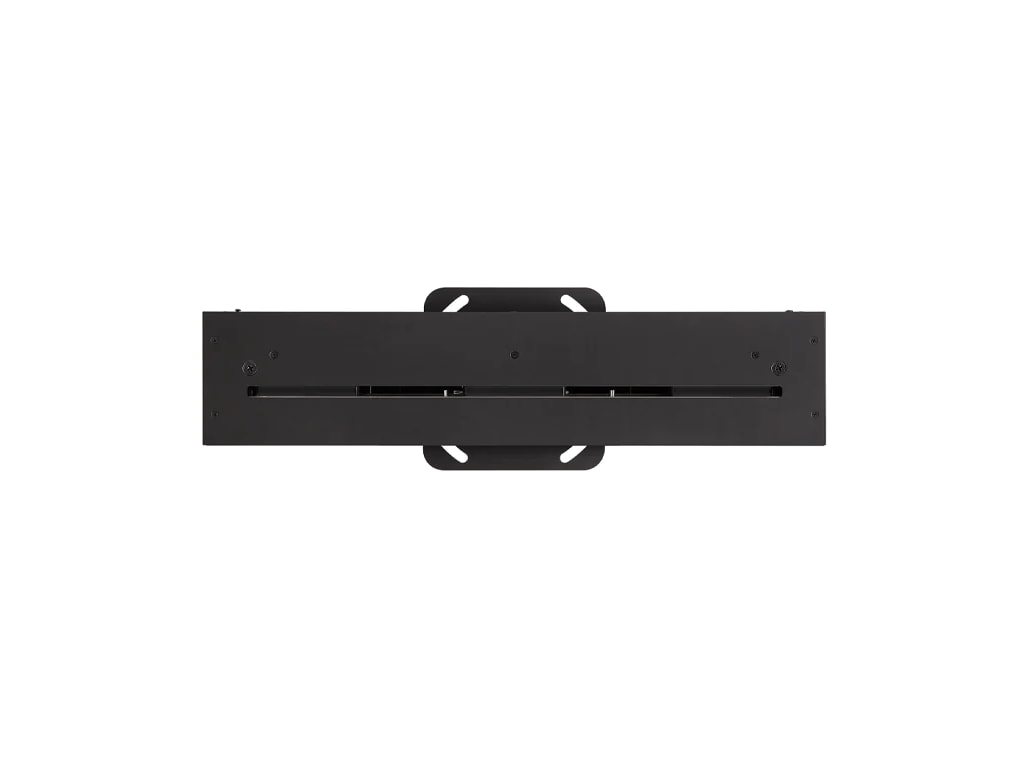

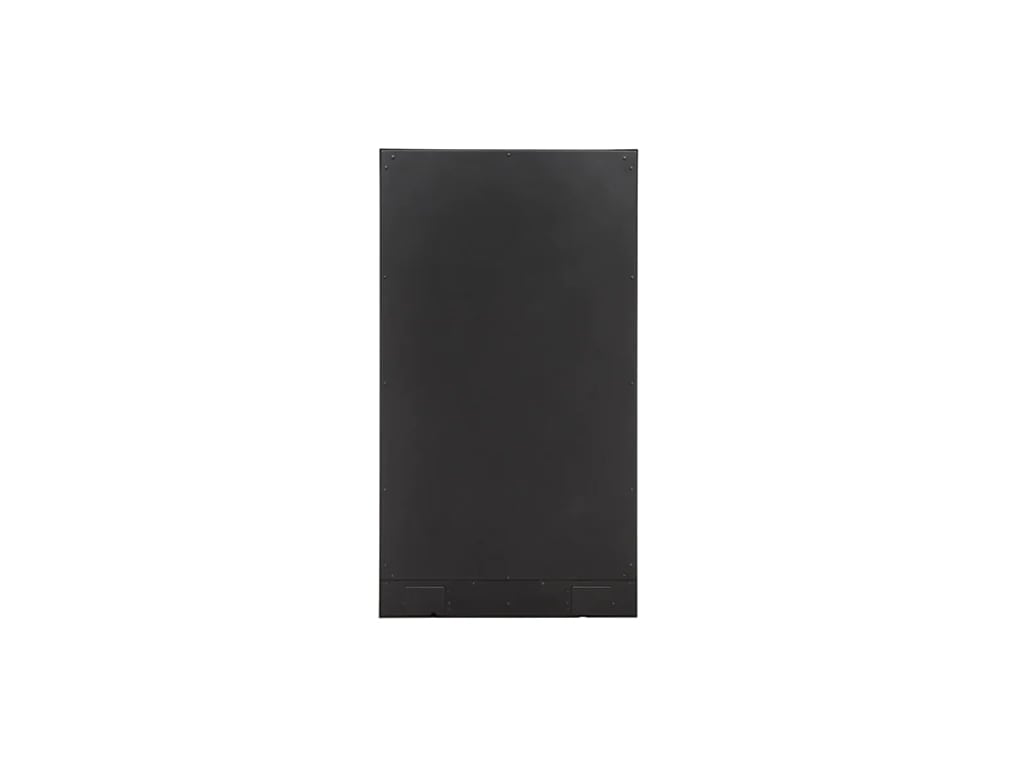

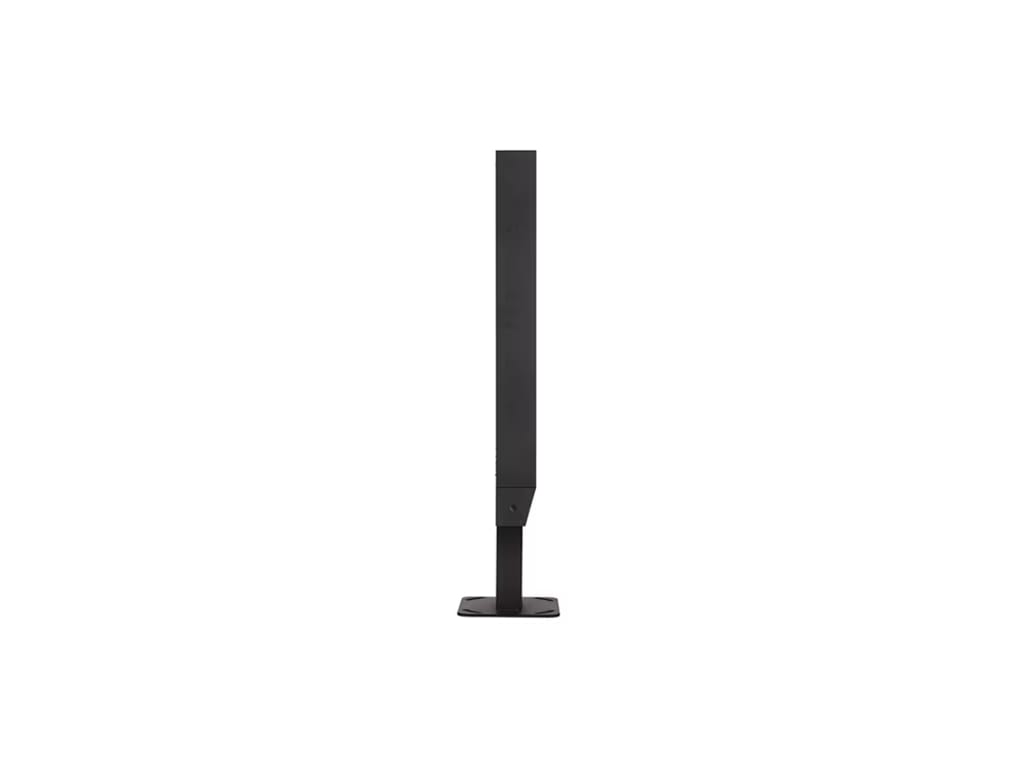

The LG 75XE3C-B is a 75” Class (54.64” measured diagonally) enclosure outdoor signage with auto-brightness sensor and preset time scheduler save power whenever possible. It features a 4K UHD native resolution and a 75" screen size, providing a stunning visual experience. The enclosure is designed with dust and humidity protection, with an IP56 rating, ensuring durability and reliability even in harsh outdoor conditions. With enhanced thermal management and a high operating temperature, this outdoor signage can withstand extreme temperatures without compromising performance.
The LG 75XE3C-B also features a 7.5 mm protective glass, designed to protect the panel from impacts and vandalism. It has web monitoring capabilities, allowing real-time diagnosis of various parameters using temperature, pixel, door, ambient light, and gyro sensors. Additionally, it offers the option for an optional stand, making it versatile and compatible with different applications. With its impressive features and reliable performance, the LG 75XE3C-B is the perfect outdoor signage solution for businesses.
In the Box
Frequently Asked Questions
Q: What is the LG 75XE3C-B - 75” Class Outdoor Signage Enclosure, 4K UHD?A: The LG 75XE3C-B is a high-quality outdoor signage enclosure designed for displaying content in outdoor environments. It features a 75-inch 4K UHD display with a durable enclosure that protects against weather conditions and vandalism.
Q: What are the benefits of using the LG 75XE3C-B outdoor signage enclosure?A: The LG 75XE3C-B offers several benefits for businesses and organizations looking to display content in outdoor settings: * Weatherproof design: The outdoor signage enclosure is built to withstand various weather conditions, including rain, snow, and extreme temperatures. This ensures that your content remains visible and protected. * High-resolution display: The 75-inch 4K UHD display provides crisp and clear visuals, allowing your content to stand out and capture attention. * Enhanced durability: The enclosure is designed to protect against vandalism and tampering, ensuring that your signage remains intact and secure. * Versatile connectivity: The LG 75XE3C-B offers various connectivity options, including HDMI, USB, and Ethernet, allowing you to easily connect and update your content. * Wide viewing angles: The display features wide viewing angles, ensuring that your content is visible from different perspectives and distances.
Q: What are the key features of the LG 75XE3C-B outdoor signage enclosure?A: The LG 75XE3C-B offers several key features that make it an excellent choice for outdoor signage: * 75-inch 4K UHD display with a resolution of 3840 x 2160 pixels, providing stunning visuals. * Weatherproof enclosure that protects against dust, moisture, and extreme temperatures. * Brightness of up to 3000 nits, ensuring visibility even in bright sunlight. * Wide viewing angles of 178 degrees, allowing content to be seen from different directions. * Built-in speakers for clear audio playback. * Remote management capabilities for easy content updates and scheduling.
Q: What are some common applications for the LG 75XE3C-B outdoor signage enclosure?A: The LG 75XE3C-B can be used in various scenarios to enhance communication and engagement: * Outdoor advertising: Display promotional content and advertisements in outdoor spaces to attract attention and increase brand visibility. * Wayfinding: Provide directions and information in outdoor areas such as parks, campuses, and shopping centers. * Events and exhibitions: Showcase event schedules, maps, and promotional content at outdoor events and exhibitions. * Transportation hubs: Display real-time schedules, announcements, and advertisements at bus stops, train stations, and airports. * Restaurants and cafes: Show menus, specials, and promotions in outdoor dining areas.
Q: How easy is it to install and maintain the LG 75XE3C-B outdoor signage enclosure?A: The LG 75XE3C-B is designed for easy installation and maintenance. It includes mounting brackets and a user-friendly interface for hassle-free setup. The enclosure's durable design and weatherproof features also minimize the need for frequent maintenance.
