Technical Specifications
| Model: LG 55VM5J-H - 55-inch 500 nits Full HD Slim Bezel Video Wall | |
| Panel Spec | |
| Display Type | TFT-LCD |
| Size | 55" |
| Resolution | 1920 x 1080 (Full HD) |
| Brightness | 500 nits |
| Aspect Ratio | 16 : 9 |
| Color Depth | 10 bit |
| Contrast Ratio | 1,200 : 1 |
| Backlight | LED |
| Viewing Angle | 178°/178° |

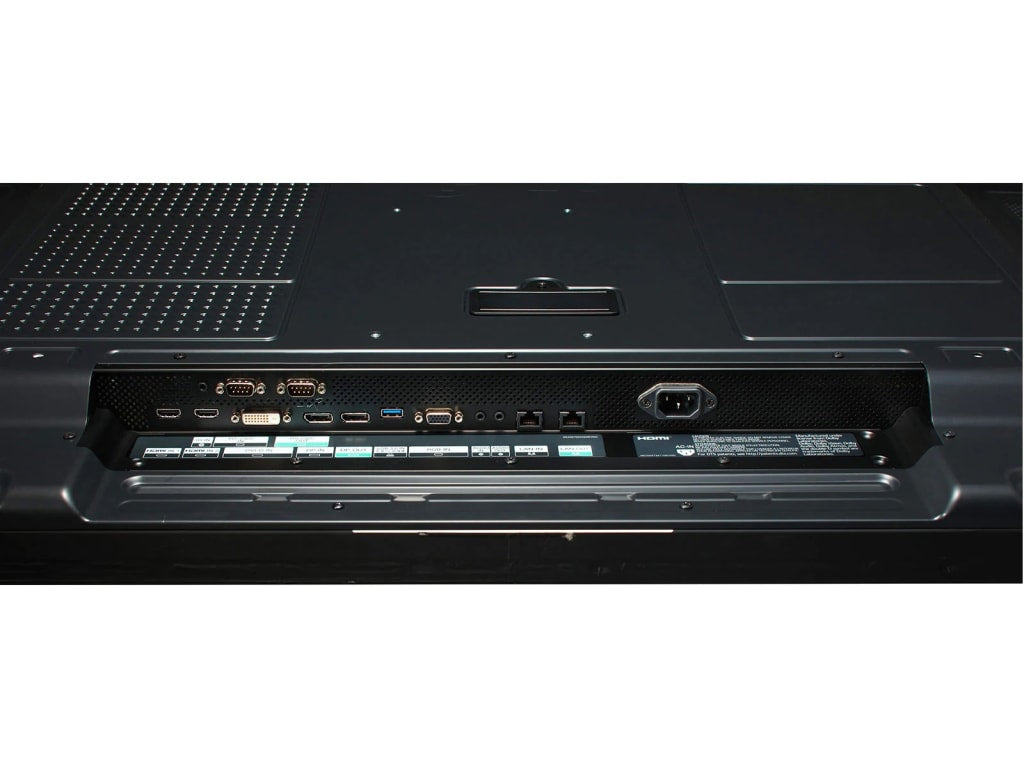

| Interfaces | |
| HDMI | 2 x HDMI (1 x HDMI Out) |
| DisplayPort | 1 x DisplayPort (1.2) |
| DVI | 1 x DVI-D (1.2) |
| USB | 1 x USB (2.0) |
| Power | |
| Power Supply | 100-240V~, 50/60Hz |
| Power Consumption | Typical: 110W, Max: 180W |
| Environmental | |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Humidity | 10% to 80% |
| Physical Properties | |
| Bezel Width | 3.5mm (Even Bezel) |
| Dimensions (W x H x D) | 1213.4 x 684.2 x 89.9mm |
| Weight | Approx. 24.7kg |
Resources
Description
The LG 55VM5J-H is a 55 inch, 500 nits, FHD slim bezel video wall. With its ultra slim bezel of just 1.74mm BtoB (Panel Bezel to Panel Bezel), this video wall delivers immersive and seamless content on assembled screens. The image improvement algorithm reduces image gaps among tiled displays, providing a seamless viewing experience. The VM5J-H also offers a wide half luminance angle of 40˚, ensuring effective picture quality for video walls. With LG IPS panel technology, the screen can be viewed from virtually any angle, captivating the attention of more viewers with lifelike colors.
The LG 55VM5J-H also offers high performance and great scalability with its built-in SoC and webOS smart signage platform. It can execute several tasks at once while providing smooth content playback without the need for a media player. The flexible content creation allows for the simultaneous playback of four different videos via web apps, with various animation effects added to content using CSS transition effects. The intuitive menu structure simplifies approach flows and groups similar functions together, making it easier for users to explore desired functions and manage displays. With its conformal coating and EMC Class B certification, the VM5J-H is suitable for various environments, including corporate meeting rooms and board rooms. Maintenance is made easy with the optional LG ConnectedCare service, which remotely manages the status of displays for fault diagnosis and remote-control services. The VM5J-H also offers daisy chain capability and IP5x dust-proof certification, ensuring a hassle-free setup and protection from dust.
In the Box
Frequently Asked Questions
Q: What is the LG 55VM5J-H - 55-inch 500 nits Full HD Slim Bezel Video Wall?A: The LG 55VM5J-H is a video wall display that offers a high-quality visual experience for various applications. It features a 55-inch Full HD display with a slim bezel design, allowing for seamless video wall installations.
Q: What are the benefits of using a video wall?A: Video walls provide several advantages over traditional single-screen displays, including: * Immersive viewing experience: Video walls create a larger and more immersive visual experience, making them ideal for advertising, presentations, and entertainment. * Enhanced visibility: The high brightness and contrast of video walls ensure clear visibility even in bright environments, making them suitable for retail stores, airports, and other public spaces. * Flexible content display: Video walls enable the display of dynamic and customizable content, allowing businesses to showcase their products, promotions, and messages effectively. * Improved brand image: Video walls can enhance the overall aesthetic appeal of a space, leaving a lasting impression on customers and visitors.
Q: What are the key features of the LG 55VM5J-H?A: The LG 55VM5J-H offers a range of features that make it a versatile video wall solution, including: * High brightness of 500 nits, ensuring excellent visibility in various lighting conditions. * Full HD resolution (1920 x 1080 pixels) for sharp and detailed visuals. * Slim bezel design for seamless video wall installations without distracting gaps. * Wide viewing angles of 178 degrees, allowing for clear visibility from different perspectives. * Multiple connectivity options, including HDMI, DisplayPort, and DVI, for easy integration with various devices.
Q: What are some of the applications for the LG 55VM5J-H?A: The LG 55VM5J-H can be used in a wide range of scenarios, including: * Retail stores: Displaying product information, promotions, and advertisements. * Control rooms: Monitoring critical information and surveillance feeds. * Event venues: Showcasing event schedules, sponsor messages, and live feeds. * Corporate offices: Delivering presentations, company updates, and digital signage. * Education: Enhancing classroom learning with interactive content and multimedia. * Hospitality: Providing information, directions, and entertainment for guests.
Q: How easy is it to install and manage the LG 55VM5J-H video wall?A: The LG 55VM5J-H is designed for easy installation and management. It supports various mounting options, including wall mounting and video wall configurations. Additionally, it comes with advanced software tools for content management and control, allowing for convenient operation and maintenance of the video wall.
